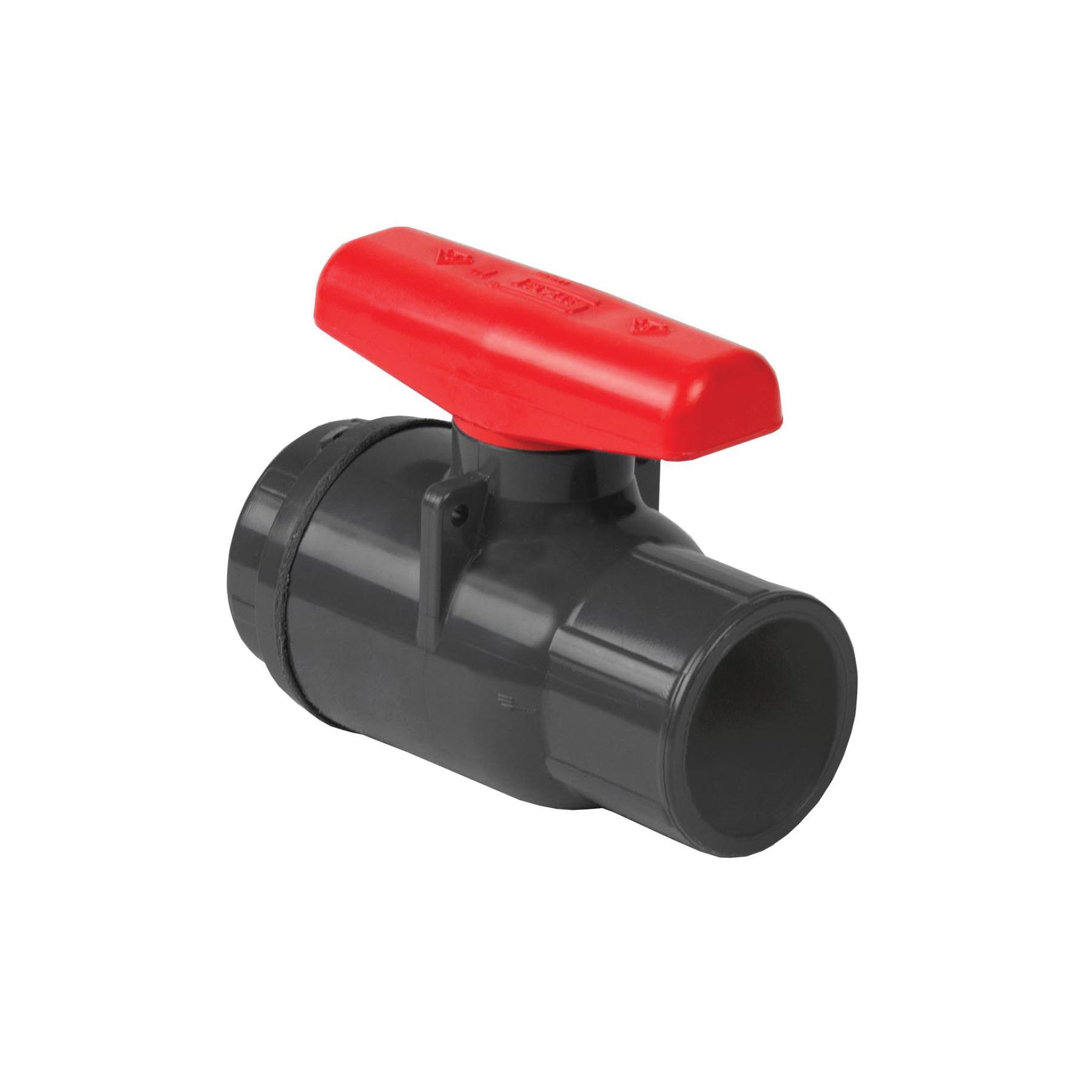

Spears® 6632-005 Compact 2000 Ball Valve With Handle, 1/2 in, Socket End Style, PVC Body, FKM Softgoods, Domestic
CBPN: 236835
UPC:054211370162
MPN:6632-005
Price:
$45.44 / EA
DESCRIPTION
Spears® Ball Valve, Series: Compact 2000, 1/2 in Nominal, Socket, 235 psi, 73 deg F, 3-1/16 in Inlet to Outlet Length, 1-5/8 in Top to Inlet Center, PVC Body, PTFE Seat Trim, FKM Softgoods, Gray, Domestic
Economical, low profile quarter-turn shut-off valve is excellent for general purpose and many OEM applications. PVC and CPVC valves are available in IPS sizes 1/2 in through 2 in with socket and regular thread.
Spears® 6632-005 Compact 2000 Ball Valve With Handle, 1/2 in, Socket End Style, PVC Body, FKM Softgoods, Domestic
CBPN: 236835
MPN:6632-005
UPC:054211370162
Price:
$45.44 / EA
DESCRIPTION
Spears® Ball Valve, Series: Compact 2000, 1/2 in Nominal, Socket, 235 psi, 73 deg F, 3-1/16 in Inlet to Outlet Length, 1-5/8 in Top to Inlet Center, PVC Body, PTFE Seat Trim, FKM Softgoods, Gray, Domestic
Economical, low profile quarter-turn shut-off valve is excellent for general purpose and many OEM applications. PVC and CPVC valves are available in IPS sizes 1/2 in through 2 in with socket and regular thread.
Specifications
Brand: Spears®
Weight: 0.22 lbs
Nominal Size: 1/2 in
End Style: Socket
Pressure Rating: 235 psi
Body Material: PVC
Softgoods Material: FKM
Color: Gray
Inlet to Outlet Length: 3-1/16 in
Manufacturer Name: Spears Manufacturing
Series: Compact 2000
Temperature Rating: 73 deg F
Top to Inlet Center: 1-5/8 in
Trim Material: PTFE Seat
Domestic/Import: Domestic
Country of Origin: US
Standards and Approvals: ASTM F1970 | Loss Prevention Certification Baroda | UKAS Management Systems
Item Features
- Industrial grade, maintenance-free sealed unit new lower-profile, more compact design provides even greater space-savings
- New actuator-ready body accepts Spears® improved mini-mount actuator mounting kits
- New double O-Ring stem seal
- Spears® Safe-T-Shear® stem
- PTFE self adjusting floating seats
- EPDM valves NSF® certified for use with potable water
- Suitable for vacuum service
- FKM O-ring seal
