Spears® 5423-060 Butterfly Check Valve, 6 in, Flanged, PVC Body, EPDM Softgoods, Domestic
CBPN:218993
UPC:054211892145
MPN:5423-060
Price:
$3188.62 / EA
DESCRIPTION
Spears® Butterfly Check Valve, 6 in Nominal, Flanged, 150 psi, 140 deg F, 11-3/8 in Inlet to Outlet Length, PVC Body, Softgoods Material: EPDM, Gray, 11 in OD, Domestic
Spears® multi-purpose butterfly check valves provide an extremely low profile and very quick response to back flow without slamming. Since most all components are internal, Spears® butterfly check valves require no more space than a piece of pipe and fitting. Special design incorporates flexible reinforced elastomer seal for long life and is suitable for mounting in any position for greater versatility. Available in IPS sizes 2 to 12 in with Flanged, Spigot, Male Threaded, Grooved pipe style and Wafer end connections, and 14 to 24 in Flanged, Spigot, Grooved and Wafer end connections. Can be custom produced to virtually any standard pipe Diameter.
Spears® 5423-060 Butterfly Check Valve, 6 in, Flanged, PVC Body, EPDM Softgoods, Domestic
CBPN:218993
MPN:5423-060
UPC:054211892145
Price:
$3188.62 / EA
DESCRIPTION
Spears® Butterfly Check Valve, 6 in Nominal, Flanged, 150 psi, 140 deg F, 11-3/8 in Inlet to Outlet Length, PVC Body, Softgoods Material: EPDM, Gray, 11 in OD, Domestic
Spears® multi-purpose butterfly check valves provide an extremely low profile and very quick response to back flow without slamming. Since most all components are internal, Spears® butterfly check valves require no more space than a piece of pipe and fitting. Special design incorporates flexible reinforced elastomer seal for long life and is suitable for mounting in any position for greater versatility. Available in IPS sizes 2 to 12 in with Flanged, Spigot, Male Threaded, Grooved pipe style and Wafer end connections, and 14 to 24 in Flanged, Spigot, Grooved and Wafer end connections. Can be custom produced to virtually any standard pipe Diameter.
Specifications
Brand: Spears®
Weight: 14.57lbs
Body Material: PVC
End Style: Flanged
Nominal Size: 6 in
Temperature Rating: 140 deg F
Color: Gray
Pressure Rating: 150 psi
Dimensions: 11 in OD
Softgoods Material: EPDM

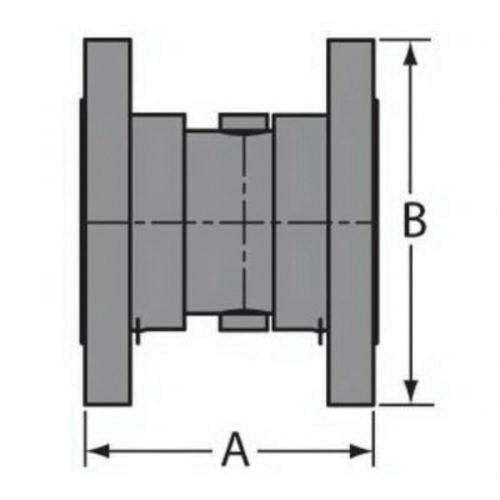

Inlet to Outlet Length: 11-3/8 in
Manufacturer Name: Spears Manufacturing
Domestic/Import: Domestic
Country of Origin: US
Standards and Approvals: ANSI Specified
Item Features
- Chemical resistant PVC and CPVC construction
- Maximum PVC and CPVC service temperature
- Quick response shut-off in any position
- Molded method of manufacture
- EPDM O-ring
- http://youtu.be/9hzQlUWbLSE
