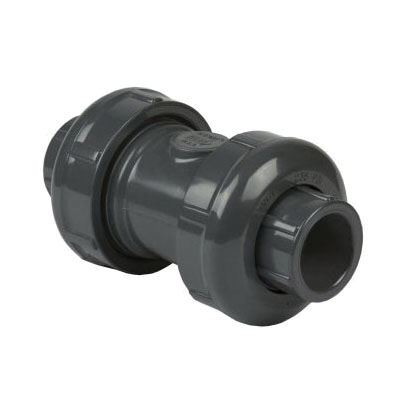

Spears® 4529-020 True Union 2000 Industrial Ball Check Valve, 2 in, Socket/FNPT, PVC Body, EPDM Softgoods, Domestic
CBPN:29880
UPC:054211400319
MPN:4529-020
Price:
$255.09 / EA
DESCRIPTION
Spears® Ball Check Valve, True Union 2000 Industrial, 2 in Nominal, Socket/FNPT, 235 psi, 73 deg F, Media: Water, 7-7/8 in Inlet to Outlet Length, PVC Ball, PVC Body, EPDM Softgoods, Gray, 1-7/8 in H, Domestic
Spears® True Union 2000 Ball Valves, 3-Way Ball Valves and Ball Check Valves provide maximum versatility with fully interchangeable valve cartridges. Provides for easier system design modifications and upgrades in multiphase projects, or anywhere changes in valve types are desired. Simply exchange any True Union 2000 valve in-line using existing union nuts. Also mates with Spears® new Schedule 80 Unions and Diaphragm Valves. All True Union 2000 valves feature a low profile, compact design for minimal space requirements. Available in PVC or CPVC with choice of EPDM or FKM O-ring seals and socket, threaded, flanged, spigot or optional Spears® patented Special Reinforced (SR) threaded end connectors. Additionally, Spears® offers valve Retrofit Kits for easy in-line replacement of other valves and factory installed Actuation Packages. Assembled with silicone-free lubricant.
Spears® 4529-020 True Union 2000 Industrial Ball Check Valve, 2 in, Socket/FNPT, PVC Body, EPDM Softgoods, Domestic
CBPN:29880
MPN:4529-020
UPC:054211400319
Price:
$255.09 / EA
DESCRIPTION
Spears® Ball Check Valve, True Union 2000 Industrial, 2 in Nominal, Socket/FNPT, 235 psi, 73 deg F, Media: Water, 7-7/8 in Inlet to Outlet Length, PVC Ball, PVC Body, EPDM Softgoods, Gray, 1-7/8 in H, Domestic
Spears® True Union 2000 Ball Valves, 3-Way Ball Valves and Ball Check Valves provide maximum versatility with fully interchangeable valve cartridges. Provides for easier system design modifications and upgrades in multiphase projects, or anywhere changes in valve types are desired. Simply exchange any True Union 2000 valve in-line using existing union nuts. Also mates with Spears® new Schedule 80 Unions and Diaphragm Valves. All True Union 2000 valves feature a low profile, compact design for minimal space requirements. Available in PVC or CPVC with choice of EPDM or FKM O-ring seals and socket, threaded, flanged, spigot or optional Spears® patented Special Reinforced (SR) threaded end connectors. Additionally, Spears® offers valve Retrofit Kits for easy in-line replacement of other valves and factory installed Actuation Packages. Assembled with silicone-free lubricant.
Specifications
Brand: Spears®
Weight: 2.99lbs
Body Material: PVC
End Style: Socket/FNPT
Nominal Size: 2 in
Temperature Rating: 73 deg F
Type: True Union 2000 Industrial
Color: Gray
Pressure Rating: 235 psi
Dimensions: 1-7/8 in H
Media: Water
Softgoods Material: EPDM
Ball Material: PVC

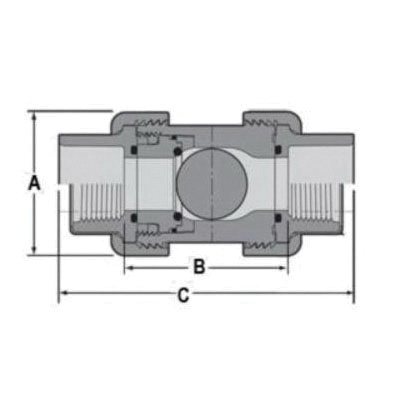

Inlet to Outlet Length: 7-7/8 in
Manufacturer Name: Spears Manufacturing
Domestic/Import: Domestic
Country of Origin: US
Standards and Approvals: ASTM D1784/F1970,NSF Approved
Item Features
- Chemical and corrosion resistant PVC construction
- Strong, buttress thread union nuts
- Spears® Safe-T-Blocked® seal carrier
- Uses standard O-Ring seat
- Fully serviceable, replaceable components
- Suitable for either horizontal or vertical installations and vacuum service
- Assembled with silicone free, water soluble lubricant
- EPDM O-ring
- http://youtu.be/9hzQlUWbLSE
