Spears® 2622-030C

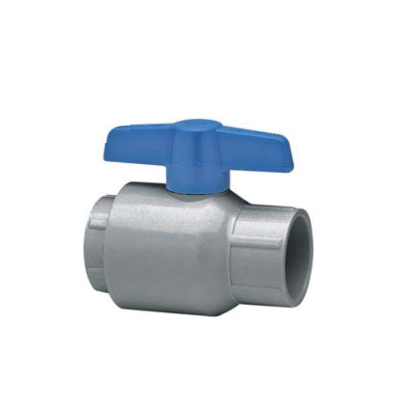

Spears® 2622-030C Utility Ball Valve With Handle, 3 in Nominal, Socket End Style, CPVC Body, Full Port, EPDM Softgoods, Domestic

CBPN: 219098

UPC:054211957691

MPN:2622-030C

Price:
$246.88 / EA

DESCRIPTION

Spears® Utility Ball Valve, 3 in Nominal, Socket, 150 psi, 73 deg F, Full Port, CPVC Ball, 8 in Inlet to Outlet Length, 5-9/16 in Top to Inlet Center, CPVC Body, PTFE Seat Trim, EPDM Softgoods, Gray, Domestic

A high quality, economical quarter-turn shut-off valve designed for irrigation, pool, spa and general purpose applications.

Spears® 2622-030C Utility Ball Valve With Handle, 3 in Nominal, Socket End Style, CPVC Body, Full Port, EPDM Softgoods, Domestic

CBPN: 219098

MPN:2622-030C

UPC:054211957691

Price:
$246.88 / EA

Spears logo

DESCRIPTION

Spears® Utility Ball Valve, 3 in Nominal, Socket, 150 psi, 73 deg F, Full Port, CPVC Ball, 8 in Inlet to Outlet Length, 5-9/16 in Top to Inlet Center, CPVC Body, PTFE Seat Trim, EPDM Softgoods, Gray, Domestic

A high quality, economical quarter-turn shut-off valve designed for irrigation, pool, spa and general purpose applications.

Specifications

Brand: Spears®
Weight: 4.67 lbs
Nominal Size: 3 in
End Style: Socket
Pressure Rating: 150 psi
Body Material: CPVC
Port Type: Full
Softgoods Material: EPDM
Ball Material: CPVC
Color: Gray
Inlet to Outlet Length: 8 in
Manufacturer Name: Spears Manufacturing
Temperature Rating: 73 deg F
Top to Inlet Center: 5-9/16 in
Trim Material: PTFE Seat
Application: Irrigation, Pool, Spa and General Purpose Applications
Domestic/Import: Domestic
Country of Origin: US
Standards and Approvals: ASTM F1970 | Type IV ASTM D1784 23447 | NSF Specified

Item Features

  • Chemical and corrosion resistant CPVC construction
  • Economical sealed unit
  • SCH 80/XH full-bore design
  • High impact polypropylene handle
  • Spears® single O-Ring Safe-T-Shear® stem design
  • All valves assembled with silicone-free, water soluble lubricant
  • EPDM O-ring
