Spears® 2031-040CSR Gate Valve, 4 in Nominal, Special Reinforced FNPT End Style, CPVC Body, FKM Softgoods, Handwheel Actuator, Domestic
CBPN: 236808
UPC:054211521519
MPN:2031-040CSR
DESCRIPTION

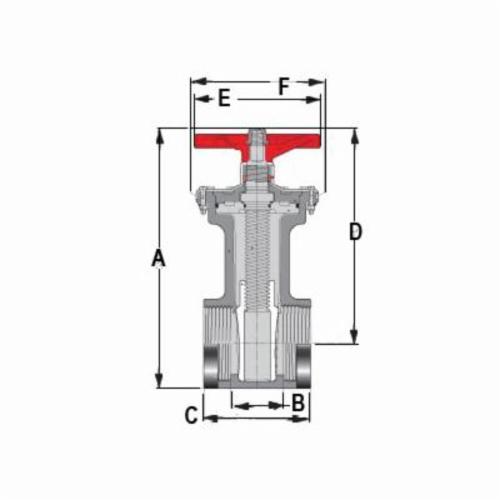

Spears® Gate Valve, 4 in Nominal, Special Reinforced FNPT End Style, 150 psi Pressure, 200 deg F, Handwheel Actuator, 7-7/8 in Inlet to Outlet Length, 13-19/32 in Top to Inlet Center, CPVC Body, CPVC Trim, FKM O-Ring Softgoods, 7-7/8 in Diameter Hand Wheel, Gray, Domestic
This solid, proven design is well suited for a variety of chemical, industrial and irrigation applications. Spears® Gate Valves are feature-packed with a variety of end connector options. Individual special features are found in each size range 1/2 in through 2 in, 2-1/2 in and 3 in, and in the full featured Heavy Industrial 4 in valve. See Spears® plug gate valves for 6 in size.
Spears® 2031-040CSR Gate Valve, 4 in Nominal, Special Reinforced FNPT End Style, CPVC Body, FKM Softgoods, Handwheel Actuator, Domestic
CBPN: 236808
MPN:2031-040CSR
UPC:054211521519
DESCRIPTION
Spears® Gate Valve, 4 in Nominal, Special Reinforced FNPT End Style, 150 psi Pressure, 200 deg F, Handwheel Actuator, 7-7/8 in Inlet to Outlet Length, 13-19/32 in Top to Inlet Center, CPVC Body, CPVC Trim, FKM O-Ring Softgoods, 7-7/8 in Diameter Hand Wheel, Gray, Domestic
This solid, proven design is well suited for a variety of chemical, industrial and irrigation applications. Spears® Gate Valves are feature-packed with a variety of end connector options. Individual special features are found in each size range 1/2 in through 2 in, 2-1/2 in and 3 in, and in the full featured Heavy Industrial 4 in valve. See Spears® plug gate valves for 6 in size.
Specifications
Item Features
- Tapered wedge with specially designed sealing surface
- Non-rising stem design
- O-ring stem seals instead of packing
- Positive grip, high impact polypropylene handwheel operator
- Fully serviceable, replaceable components accessible without valve removal
- SCH 80
