Spears True Union 2000 PVC Industrial Ball Valve

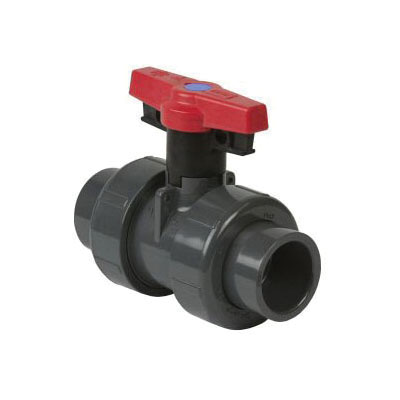

Spears® 1829-010 True Union 2000 Industrial Ball Valve, 1 in Nominal, Socket and FNPT End Style, PVC Body, EPDM Softgoods, Domestic

CBPN:416

UPC:054211942895

MPN:1829-010

Price:
$102.73 / EA

DESCRIPTION

Spears® Ball Valve, Industrial, Series: True Union 2000, 1 in Nominal, Socket and FNPT, 235 psi, 140 deg F, T-Handle Actuator, PVC Ball, 5-7/32 in Inlet to Outlet Length, 3-1/8 in Top to Inlet Center, PVC Body, PVC Stem and PTFE Seat Trim, EPDM, Gray, Domestic

The Spears® True Union 2000 Ball Valves, 3-Way Ball Valves, and Ball Check Valves are designed for maximum versatility, featuring fully interchangeable valve cartridges. This design facilitates easy system modifications and upgrades in projects requiring different valve types. Users can effortlessly replace any True Union 2000 valve in-line using existing union nuts and can also integrate them with new Spears SCH 80/XH Unions and Diaphragm Valves. These valves boast a low profile and compact design, minimizing space requirements. They are offered in PVC or CPVC options, with a choice of EPDM or FKM O-ring seals, and various end connections such as socket, threaded, flanged, spigot, or optional Spears® patented Special Reinforced (SR) threaded end connectors. Additionally, Spears provides valve Retrofit Kits for straightforward in-line replacement of other valves and offers factory-installed Actuation Packages. All valves are assembled with silicone-free lubricant for reliable performance.

Spears® 1829-010 True Union 2000 Industrial Ball Valve, 1 in Nominal, Socket and FNPT End Style, PVC Body, EPDM Softgoods, Domestic

CBPN:416

MPN:1829-010

UPC:054211942895

Price:
$102.73 / EA

Spears logo

DESCRIPTION

Spears® Ball Valve, Industrial, Series: True Union 2000, 1 in Nominal, Socket and FNPT, 235 psi, 140 deg F, T-Handle Actuator, PVC Ball, 5-7/32 in Inlet to Outlet Length, 3-1/8 in Top to Inlet Center, PVC Body, PVC Stem and PTFE Seat Trim, EPDM, Gray, Domestic

The Spears® True Union 2000 Ball Valves, 3-Way Ball Valves, and Ball Check Valves are designed for maximum versatility, featuring fully interchangeable valve cartridges. This design facilitates easy system modifications and upgrades in projects requiring different valve types. Users can effortlessly replace any True Union 2000 valve in-line using existing union nuts and can also integrate them with new Spears SCH 80/XH Unions and Diaphragm Valves. These valves boast a low profile and compact design, minimizing space requirements. They are offered in PVC or CPVC options, with a choice of EPDM or FKM O-ring seals, and various end connections such as socket, threaded, flanged, spigot, or optional Spears® patented Special Reinforced (SR) threaded end connectors. Additionally, Spears provides valve Retrofit Kits for straightforward in-line replacement of other valves and offers factory-installed Actuation Packages. All valves are assembled with silicone-free lubricant for reliable performance.

Specifications

BrandSpears®
Weight0.96lbs
Nominal Size1 in
End StyleSocket and FNPT
Pressure Rating235 psi
Body MaterialPVC
Softgoods MaterialEPDM
Actuator TypeT-Handle
Ball MaterialPVC
ColorGray
Inlet to Outlet Length5-7/32 in
Manufacturer NameSpears Manufacturing
SeriesTrue Union 2000
Temperature Rating140 deg F
Top to Inlet Center3-1/8 in
Trim MaterialPVC Stem and PTFE Seat
TypeIndustrial
Domestic/ImportDomestic
Country of OriginUS

Item Features

  • Chemical and corrosion resistant PVC or CPVC construction
  • Strong, buttress thread union nuts
  • Spears® Safe-T-Blocked® seal carrier
  • Assembled with silicone-free, water soluble lubricant
  • Suitable for either horizontal or vertical installations and vacuum service
  • EPDM O-ring
