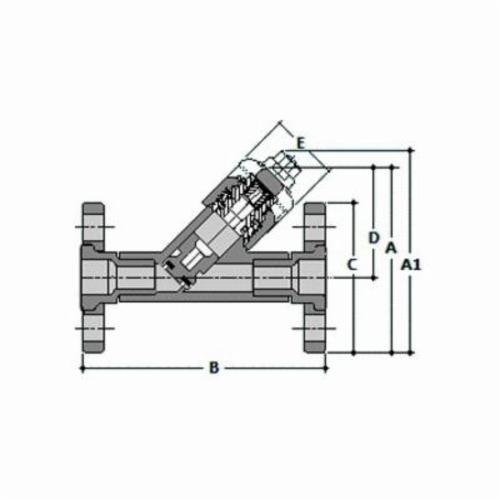

Spears® Y-Check Valve, 1-1/4 in Nominal, Flanged, 150 psi, 200 deg F, 5-23/32 in Inlet to Outlet Length, 4-9/32 in Top to Inlet Center, CPVC Body, CPVC Trim, EPDM/FKM O-Ring, Seat, Gray, Domestic

Spears® Y-Check valves are an angle type check valve that automatically stops reverse flow by the dead weight of the disc plug. Y-checks are less affected by turbulent flow and typically have lower shutoff characteristics than ball checks. Valves are available in PVC gray, PVC clear, and CPVC materials in IPS sizes 1/2 in through 4 in with socket, SR threaded or flanged end connections, plus True Union styles with socket and SR threaded ends.
