Spears® 1622-005 Y-Check Valve, 1/2 in, Socket, PVC Body, Domestic
CBPN:260234
UPC:054211448328
MPN:1622-005
Price:
$162.47 / EA
DESCRIPTION

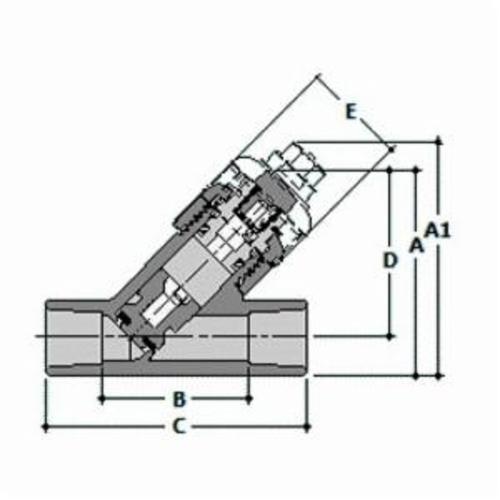

Spears® Y-Check Valve, 1/2 in Nominal, Socket, 150 psi, 140 deg F, 2-19/32 in Inlet to Outlet Length, 2-19/32 in Top to Inlet Center, PVC Body, PVC Trim, EPDM/FKM O-Ring, Seat, Gray, Domestic
Spears® Y-Check valves are an angle type check valve that automatically stops reverse flow by the dead weight of the disc plug. Y-checks are less affected by turbulent flow and typically have lower shutoff characteristics than ball checks. Valves are available in PVC gray, PVC clear, and CPVC materials in IPS sizes 1/2 in through 4 in with socket, SR threaded or flanged end connections, plus True Union styles with socket and SR threaded ends.
Spears® 1622-005 Y-Check Valve, 1/2 in, Socket, PVC Body, Domestic
CBPN:260234
MPN:1622-005
UPC:054211448328
Price:
$162.47 / EA
DESCRIPTION
Spears® Y-Check Valve, 1/2 in Nominal, Socket, 150 psi, 140 deg F, 2-19/32 in Inlet to Outlet Length, 2-19/32 in Top to Inlet Center, PVC Body, PVC Trim, EPDM/FKM O-Ring, Seat, Gray, Domestic
Spears® Y-Check valves are an angle type check valve that automatically stops reverse flow by the dead weight of the disc plug. Y-checks are less affected by turbulent flow and typically have lower shutoff characteristics than ball checks. Valves are available in PVC gray, PVC clear, and CPVC materials in IPS sizes 1/2 in through 4 in with socket, SR threaded or flanged end connections, plus True Union styles with socket and SR threaded ends.
Specifications
Brand: Spears®
Weight: 0.29lbs
Body Material: PVC
End Style: Socket
Nominal Size: 1/2 in
Temperature Rating: 140 deg F
Color: Gray
Pressure Rating: 150 psi
Softgoods Material: EPDM/FKM O-Ring, Seat
Trim Material: PVC
Inlet to Outlet Length: 2-19/32 in
Manufacturer Name: Spears Manufacturing
Top to Inlet Center: 2-19/32 in
Domestic/Import: Domestic
Country of Origin: US
Standards and Approvals: ASTM D1784/F1970
Item Features
- Chemical and corrosion resistant PVC, PVC clear and CPVC construction
- Improved flow characteristics over ball checks, outperforms spring loaded designs
- Easy access cap for in-line clean out and servicing
- Optional true union design for easy valve service replacement
- Suitable for either horizontal or vertical up-flow installations
- Assembled with silicone free, water soluble lubricant
