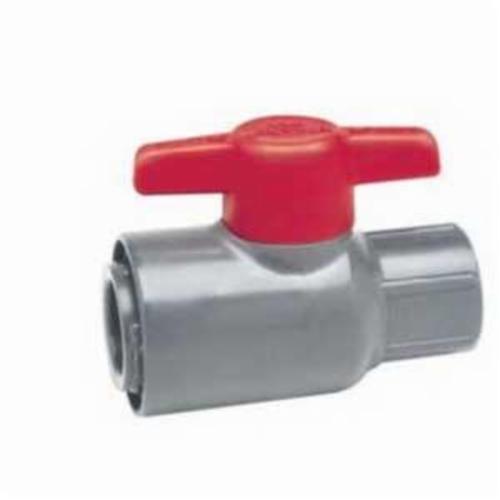

Spears® 1539-002CA Lab Ball Valve, 1/4 in, CPVC Body, FKM Softgoods, Domestic
CBPN: 260534
UPC:054211005163
MPN:1539-002CA
Price:
$60.10 / EA
DESCRIPTION
Spears® Lab Ball Valve, 1/4 in Nominal, 150 psi, 200 deg F, CPVC Ball, 2-1/8 in Inlet to Outlet Length, CPVC Body, FKM Softgoods, Domestic
This versatile quarter-turn shut-off valve is ideally suited for a variety of laboratory, system monitoring and OEM applications. Available in IPS sizes 1/4 in - 3/8 in with socket or threaded end connectors, plus 1/4 in threaded valve and adapter kit to provide multiple connection options.
Spears® 1539-002CA Lab Ball Valve, 1/4 in, CPVC Body, FKM Softgoods, Domestic
CBPN: 260534
MPN:1539-002CA
UPC:054211005163
Price:
$60.10 / EA
DESCRIPTION
Spears® Lab Ball Valve, 1/4 in Nominal, 150 psi, 200 deg F, CPVC Ball, 2-1/8 in Inlet to Outlet Length, CPVC Body, FKM Softgoods, Domestic
This versatile quarter-turn shut-off valve is ideally suited for a variety of laboratory, system monitoring and OEM applications. Available in IPS sizes 1/4 in - 3/8 in with socket or threaded end connectors, plus 1/4 in threaded valve and adapter kit to provide multiple connection options.
Specifications
Brand: Spears®
Weight: 0.14 lbs
Nominal Size: 1/4 in
Pressure Rating: 150 psi
Body Material: CPVC
Softgoods Material: FKM
Ball Material: CPVC
Inlet to Outlet Length: 2-1/8 in
Manufacturer Name: Spears Manufacturing
Temperature Rating: 200 deg F
Includes: (1) Threaded 1/4 in Valve, (2) O-Ring Sealed 1/4 in MPT x MIPT Adapters, (2) AS568-013 EPDM or FKM O-Rings, (1) End Connector Wrench, (2) O-Ring Sealed 1/4 in MPT x 3/8 in ID Tubing Barb Adapters and (2) O-Ring Sealed 1/4 in MPT x 1/4 in ID Tubing Barb Adapters
Domestic/Import: Domestic
Country of Origin: US
Standards and Approvals: ASTM D1784 | NSF Approved
Item Features
- Chemical and corrosion resistant PVC or CPVC construction
- Maintenance-free sealed unit
- Individual valve or multi-functional valve and adapter kit
- SCH 80/XH full bore design
- High impact polypropylene handle
- PTFE floating seat design
- Assembled with silicone-free, water soluble lubricant
- FKM O-ring
