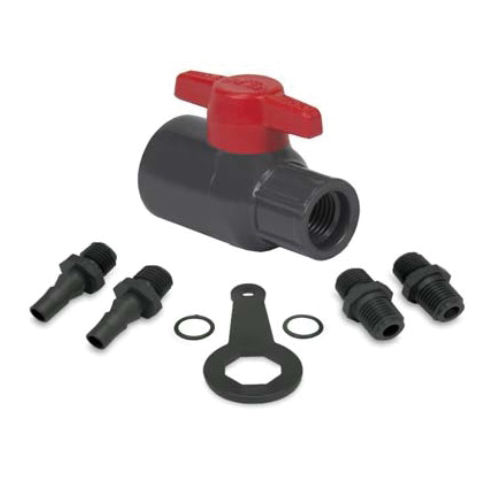

Spears® 1529-002A Lab Ball Valve, 1/4 in Nominal, FNPT x Adapter End Style, PVC Body, EPDM Softgoods, Domestic
CBPN: 138376
UPC:054211210277
MPN:1529-002A
Price:
$49.1 / EA
DESCRIPTION
Spears® Lab Ball Valve, 1/4 in Nominal, FNPT x Adapter, 150 psi, 140 deg F, T-Handle Actuator, PVC Ball, 3-7/8 in Inlet to Outlet Length, 1-1/16 in Top to Inlet Center, PVC Body, PVC Stem and PTFE Seat Trim, EPDM, Gray, Domestic
This versatile quarter-turn shut-off valve is ideally suited for a variety of laboratory, system monitoring and OEM applications. Available in IPS sizes 1/4 in - 3/8 in with socket or threaded end connectors, plus 1/4 in threaded Valve and Adapter Kit to provide multiple connection options.
Spears® 1529-002A Lab Ball Valve, 1/4 in Nominal, FNPT x Adapter End Style, PVC Body, EPDM Softgoods, Domestic
CBPN: 138376
MPN:1529-002A
UPC:054211210277
Price:
$49.1 / EA
DESCRIPTION
Spears® Lab Ball Valve, 1/4 in Nominal, FNPT x Adapter, 150 psi, 140 deg F, T-Handle Actuator, PVC Ball, 3-7/8 in Inlet to Outlet Length, 1-1/16 in Top to Inlet Center, PVC Body, PVC Stem and PTFE Seat Trim, EPDM, Gray, Domestic
This versatile quarter-turn shut-off valve is ideally suited for a variety of laboratory, system monitoring and OEM applications. Available in IPS sizes 1/4 in - 3/8 in with socket or threaded end connectors, plus 1/4 in threaded Valve and Adapter Kit to provide multiple connection options.
Specifications
Brand: Spears®
Weight: 0.14 lbs
Nominal Size: 1/4 in
End Style: FNPT x Adapter
Pressure Rating: 150 psi
Body Material: PVC
Softgoods Material: EPDM
Actuator Type: T-Handle
Ball Material: PVC
Color: Gray
Inlet to Outlet Length: 3-7/8 in
Manufacturer Name: Spears Manufacturing
Temperature Rating: 140 deg F
Top to Inlet Center: 1-1/16 in
Trim Material: PVC Stem and PTFE Seat
Domestic/Import: Domestic
Country of Origin: US
Standards and Approvals: ASTM D1784 | NSF Approved
Item Features
- Chemical and corrosion resistant PVC or CPVC construction
- High impact polypropylene handle
- Assembled with silicone-free, water soluble lubricant
- Maintenance-free sealed unit
- Individual valve or multi-functional valve and adapter kit
- SCH 80/XH full bore design
- EPDM O-ring
