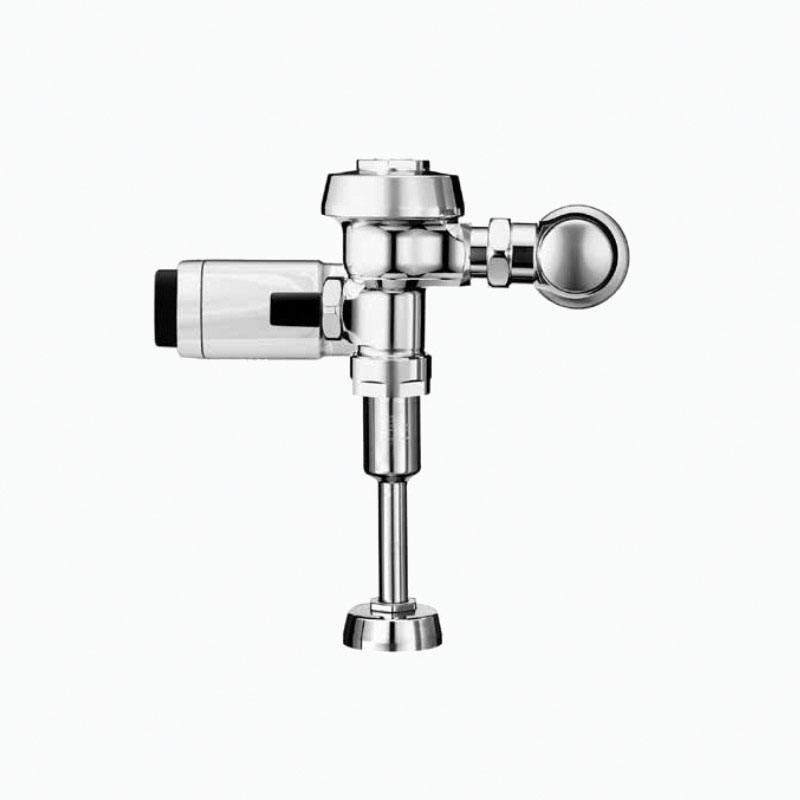

Sloan® Royal® 3912750 186 Single-Flush Sensor Exposed Flushometer, Hardwired, 1 gpf Flush Rate, 3/4 in IPS Inlet, 3/4 in Spud, 15 to 80 psi Pressure, Polished Chrome, Domestic
CBPN: 241247
UPC:671254417854
MPN:3912750
Price:
$567.00 / EA
DESCRIPTION
Sloan® Royal® Sensor Exposed Flushometer, Single-Flush, Series: 186, Urinal Fixture, Hardwired Power Source, 1 gpf Flush, 3/4 in IPS Inlet, 3/4 in Spud Coupling, 11-1/2 in Rough-In, Diaphragm Valve Design, Connection Location: Top Spud, 22 to 42 in Sensor, 15 to 80 psi Pressure, Semi-Red Brass, Polished Chrome, Domestic
Exposed, AC-powered, sensor-activated, high-efficiency urinal flushometer with a single-flush side mount unit for 3/4 in top spud urinals.
Sloan® Royal® 3912750 186 Single-Flush Sensor Exposed Flushometer, Hardwired, 1 gpf Flush Rate, 3/4 in IPS Inlet, 3/4 in Spud, 15 to 80 psi Pressure, Polished Chrome, Domestic
CBPN: 241247
MPN:3912750
UPC:671254417854
Price:
$567.00 / EA
DESCRIPTION
Sloan® Royal® Sensor Exposed Flushometer, Single-Flush, Series: 186, Urinal Fixture, Hardwired Power Source, 1 gpf Flush, 3/4 in IPS Inlet, 3/4 in Spud Coupling, 11-1/2 in Rough-In, Diaphragm Valve Design, Connection Location: Top Spud, 22 to 42 in Sensor, 15 to 80 psi Pressure, Semi-Red Brass, Polished Chrome, Domestic
Exposed, AC-powered, sensor-activated, high-efficiency urinal flushometer with a single-flush side mount unit for 3/4 in top spud urinals.
Specifications
Brand: Sloan®
Weight: 6.57 lbs
Power Source: Hardwired
Flush Rate: 1 gpf
Inlet Size: 3/4 in IPS
Spud Coupling: 3/4 in
Pressure Rating: 15 to 80 psi
Finish/Color: Polished Chrome
Connection Location: Top Spud
Fixture Type: Urinal
Manufacturer Name: Sloan Valve Company
Material: Semi-Red Brass
Rough-In Size: 11-1/2 in
Sensor Range: 22 to 42 in
Series: 186
Type: Single-Flush
Valve Design: Diaphragm
Warranty: 3 Years Limited
Domestic/Import: Domestic
Country of Origin: US
Standards and Approvals: ADA Compliant | ASSE Valve | BAA Compliant | cUPC Listed | UL Listed
Item Features
- Includes the required wall plate and a purple wall flange to let users know reclaimed water is in use
- All organic rubber has been replaced with synthetic compounds
- Permex® synthetic rubber diaphragm with dual filtered fixed bypass
- Valve body, cover, tailpiece and control stop shall be in conformance with ASTM alloy classification for semi-red brass
