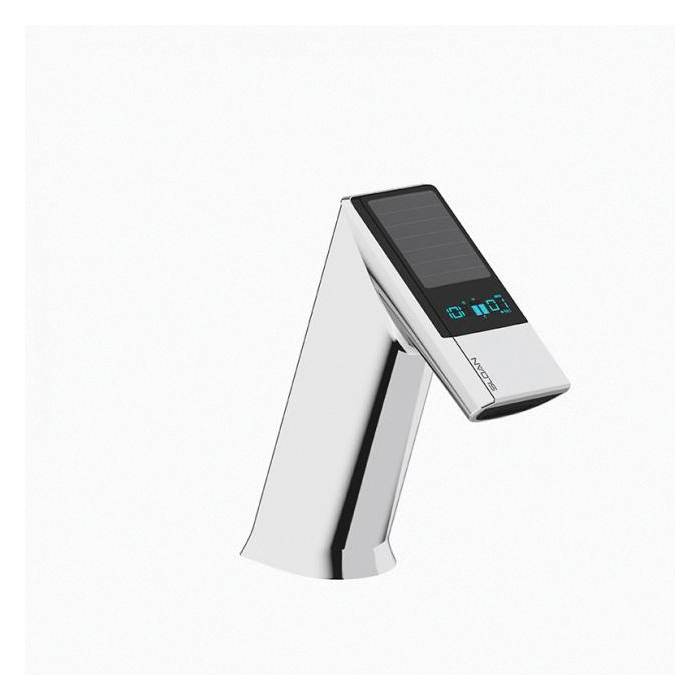

Sloan® BASYS® 3324032 EFX-277 Sink Faucet, Commercial, 1.5 gpm Flow Rate, 3-11/16 in H Spout, 1 Faucet Holes, Polished Chrome, Function: Touchless
CBPN: 156857
UPC:671254391840
MPN:3324032
Price:
$1542.02 / EA
DESCRIPTION
Sloan® BASYS® Sink Faucet, Series: EFX-277, 1.5 gpm, Mid Spout, 6 in Spout Reach, 3-11/16 in Spout Height, 1 Faucet Holes, 3/8 in, Compression, Function: Touchless, 1-1/2 in Maximum Deck Thickness, Deck Mount, Metering Valve/Cartridge, 6-15/32 in H, Die Cast Metal, Polished Chrome, Import, Commercial
Sloan® BASYS® 3324032 EFX-277 Sink Faucet, Commercial, 1.5 gpm Flow Rate, 3-11/16 in H Spout, 1 Faucet Holes, Polished Chrome, Function: Touchless
CBPN: 156857
MPN:3324032
UPC:671254391840
Price:
$1542.02 / EA
DESCRIPTION
Sloan® BASYS® Sink Faucet, Series: EFX-277, 1.5 gpm, Mid Spout, 6 in Spout Reach, 3-11/16 in Spout Height, 1 Faucet Holes, 3/8 in, Compression, Function: Touchless, 1-1/2 in Maximum Deck Thickness, Deck Mount, Metering Valve/Cartridge, 6-15/32 in H, Die Cast Metal, Polished Chrome, Import, Commercial
Specifications
Brand: Sloan®
Weight: 5 lbs
Collection: BASYS®
Type: Sensor Activated Touchless
Commercial/Residential: Commercial
Flow Rate: 1.5 gpm
Spout Height: 3-11/16 in
Center Distance: N/A
Finish/Color: Polished Chrome
Connection Size: 3/8 in
Connection Type: Compression
Dimensions: 6-15/32 in H
Function: Touchless
Manufacturer Name: Sloan Valve Company
Material: Die Cast Metal
Maximum Deck Thickness: 1-1/2 in
Mounting Type: Deck
Number of Faucet Holes: 1
Power Source: Solar & Battery
Series: EFX-277
Spout Reach: 6 in
Spout Type: Mid
Spray Pattern: Aerated
Valve Type: Integral Spout Mixer
Valve/Cartridge Type: Metering
Includes: Mounting Hardware
Warranty: 3 Years Limited
Domestic/Import: Import
Country of Origin: CH
Standards and Approvals: ADA Compliant | ASME A112.18.1 Compliant | cUPC Certified | IPC Listed | NSF Approved | NPC Canada
Item Features
- Sensor metering hand washing faucet, solar powered with battery back-up, double-infrared sensor activated for pre-tempered or hot and cold water operation
- All serviceable components above deck for easy installation and maintenance
- All wetted components to be stainless steel, engineered thermoplastic, EPDM and copper or copper alloy
- Solenoid housed in removable carrier that includes supply strainer, serviceable from above deck
- All electronics sealed to IP-67
- Vandal resistant spray insert, key housed inside faucet body
- Gold plated electrical contacts
- Flexible high pressure supply hoses 3/8 in compression connections
- Above deck individual diagnostic indicators for battery life, solenoid condition and power up mode
- Bi-stable magnetic solenoid valve
- Double infrared sensor has automatic setting feature and microprocessor
- Selectable Sloan® programmable line purge mode eliminates stagnant water
- Operates from 1 to 125 psi
- Battery with solar energy harvesting
- Integrated side mounted mechanical mixing valve
- Pedestal base
