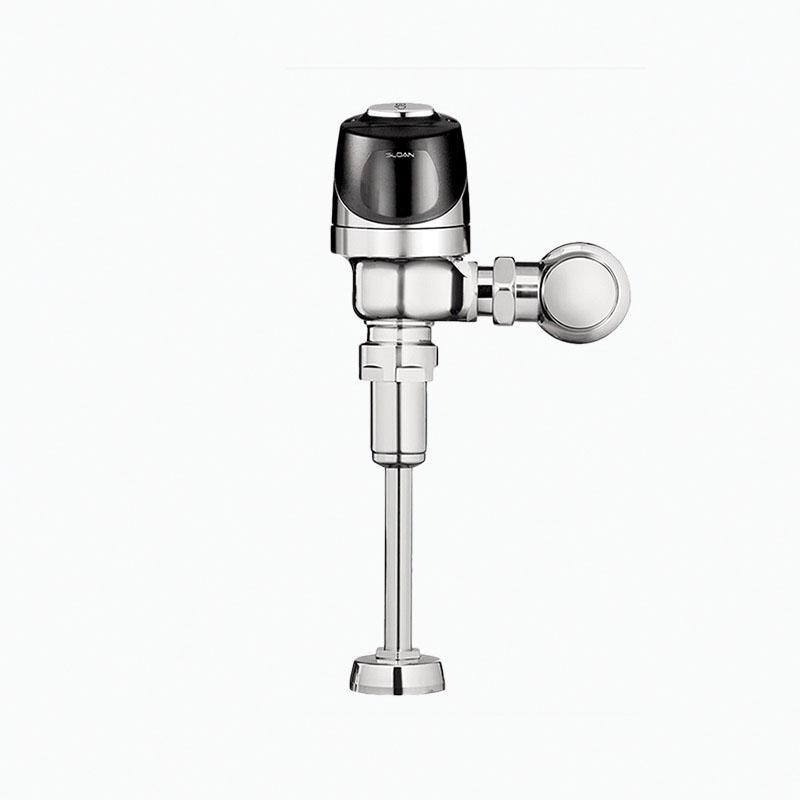

Sloan® 3250424 8186 Single-Flush Sensor Exposed Flushometer, G2 Optima Plus®, Battery, 0.5 gpf Flush Rate, 3/4 in IPS Inlet, 3/4 in Spud, 15 to 80 psi Pressure, Polished Chrome, Domestic
CBPN: 144190
UPC:671254266919
MPN:3250424
Price:
$708.52 / EA
DESCRIPTION
Sloan® Sensor Exposed Flushometer, Single-Flush, Series: 8186, G2 Optima Plus® Collection, Urinal Fixture, Battery Power Source, 0.5 gpf Flush, 3/4 in IPS Inlet, 3/4 in Spud Coupling, 11-1/2 in Rough-In, Diaphragm Valve Design, Connection Location: Top Spud, 15 to 30 in Sensor, 15 to 80 psi Pressure, Semi-Red Brass, Polished Chrome, Domestic
Sloan® 3250424 8186 Single-Flush Sensor Exposed Flushometer, G2 Optima Plus®, Battery, 0.5 gpf Flush Rate, 3/4 in IPS Inlet, 3/4 in Spud, 15 to 80 psi Pressure, Polished Chrome, Domestic
CBPN: 144190
MPN:3250424
UPC:671254266919
Price:
$708.52 / EA
DESCRIPTION
Sloan® Sensor Exposed Flushometer, Single-Flush, Series: 8186, G2 Optima Plus® Collection, Urinal Fixture, Battery Power Source, 0.5 gpf Flush, 3/4 in IPS Inlet, 3/4 in Spud Coupling, 11-1/2 in Rough-In, Diaphragm Valve Design, Connection Location: Top Spud, 15 to 30 in Sensor, 15 to 80 psi Pressure, Semi-Red Brass, Polished Chrome, Domestic
Specifications
Brand: Sloan®
Weight: 8.06 lbs
Collection: G2 Optima Plus®
Power Source: Battery
Flush Rate: 0.5 gpf
Inlet Size: 3/4 in IPS
Spud Coupling: 3/4 in
Pressure Rating: 15 to 80 psi
Finish/Color: Polished Chrome
Connection Location: Top Spud
Fixture Type: Urinal
Manufacturer Name: Sloan Valve Company
Material: Semi-Red Brass
Rough-In Size: 11-1/2 in
Sensor Range: 15 to 30 in
Series: 8186
Type: Single-Flush
Valve Design: Diaphragm
Includes: (4) Size AA Alkaline Batteries
Warranty: 3 Years Limited
Domestic/Import: Domestic
Country of Origin: US
Standards and Approvals: ADA Compliant | ASSE Valve | BAA Compliant | cUPC Listed | cUPC Green Certified | Satisfies LEED Credits | WaterSense Listed
Item Features
- ADA compliant flushometer automatically operates by means of a infrared sensor with multiple-focused, lobular sensing fields for high and low target detection
- Fixed metering bypass and no external volume adjustment to ensure water conservation
- High copper, low zinc brass castings for dezincification resistance
- Valve body, cover, tailpiece and control stop shall be in conformance with ASTM alloy classification for semi-red brass
