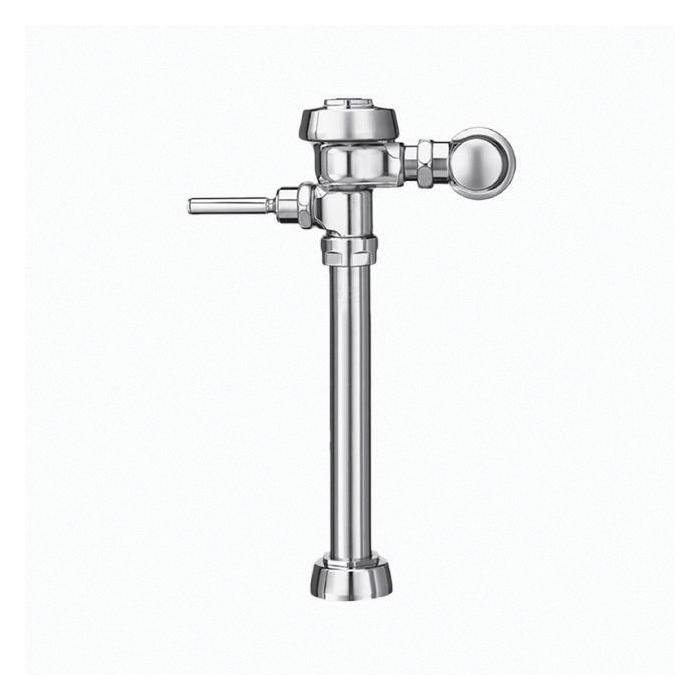

Sloan® 3010326 115 Single-Flush Manual Exposed Flushometer, Royal®, 1.6 gpf Flush Rate, 1 in IPS Inlet, 1-1/2 in Spud, 15 to 80 psi Pressure, Polished Chrome, Domestic
CBPN: 102347
UPC:671254019089
MPN:3010326
Price:
$228.50 / EA
DESCRIPTION
Sloan®, 3010326, Manual Exposed Flushometer, Single-Flush, Series: 115, Royal® Collection, Water Closet Fixture, 1.6 gpf Flush, 1 in IPS Inlet, 1-1/2 in Spud Coupling, 24 in Rough-In, Diaphragm Valve Design, Connection Location: Top Spud, 15 to 80 psi Pressure, Non-Hold Open Oscillating Handle, Semi-Red Brass, Polished Chrome, Domestic
Sloan® 3010326 115 Single-Flush Manual Exposed Flushometer, Royal®, 1.6 gpf Flush Rate, 1 in IPS Inlet, 1-1/2 in Spud, 15 to 80 psi Pressure, Polished Chrome, Domestic
CBPN: 102347
MPN:3010326
UPC:671254019089
Price:
$228.50 / EA
DESCRIPTION
Sloan®, 3010326, Manual Exposed Flushometer, Single-Flush, Series: 115, Royal® Collection, Water Closet Fixture, 1.6 gpf Flush, 1 in IPS Inlet, 1-1/2 in Spud Coupling, 24 in Rough-In, Diaphragm Valve Design, Connection Location: Top Spud, 15 to 80 psi Pressure, Non-Hold Open Oscillating Handle, Semi-Red Brass, Polished Chrome, Domestic
Specifications
Brand: Sloan®
Weight: 8.331 lbs
Collection: Royal®
Flush Rate: 1.6 gpf
Inlet Size: 1 in IPS
Spud Coupling: 1-1/2 in
Pressure Rating: 15 to 80 psi
Finish/Color: Polished Chrome
Connection Location: Top Spud
Fixture Type: Water Closet
Handle Type: Non-Hold Open Oscillating
Manufacturer Name: Sloan Valve Company
Material: Semi-Red Brass
Rough-In Size: 24 in
Series: 115
Type: Single-Flush
Valve Design: Diaphragm
Includes: Adjustable Tailpiece
Domestic/Import: Domestic
Country of Origin: US
Standards and Approvals: ADA Compliant | ASTM Specified | ASSE 1037 | BAA Compliant | cUPC Listed | SA Certified
Item Features
- Flush volumes start as low as 1.28 gpf/4.8 lpf
- Water conservation is aided by the ADA-compliant, non-hold-open handle, which prevents toilet from exceeding intended flush volume
- Flush accuracy is controlled by CID™ technology, also enhancing water efficiency
- Integrity of the product is maintained with the vandal resistant stop cap
- Durability is facilitated with high copper, low zinc brass castings for dezincification resistance
- Adjustable tailpiece
- Permex® synthetic rubber diaphragm with dual filtered fixed by-pass
- Valve body, cover, tailpiece and control stop shall be in compliance with ASTM alloy classification for semi-red brass
- Exposed water closet flushometer, for floor mounted or wall hung top spud bowls
