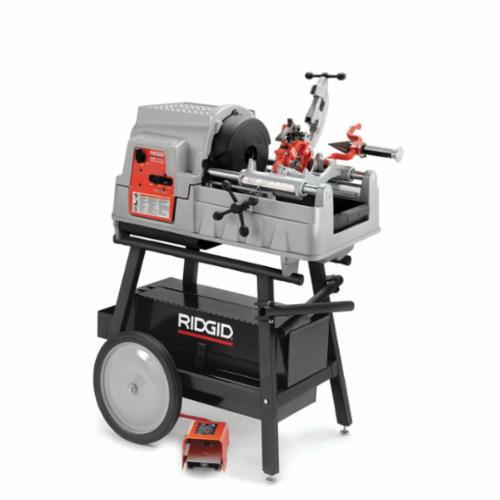

RIDGID® 91322 535A Kit Threading Machine Kit, 1/2 to 2 in Pipe, 1/4 to 2 in Bolt, 120 VAC, 2 hp, 16/46/58 rpm Speed
CBPN:147724
UPC:095691913227
MPN:91322
Price:
$9826.09Â /Â EA
Oversize or overweight
This item cannot ship via small package carrier, such as UPS or FedEx Ground. Delivery options will be available at checkout.
DESCRIPTION
RIDGID® Threading Machine Kit, Bare Tool/Kit: Kit, 1/2 to 2 in Pipe, 16/46/58 rpm Speed, 2 hp, 120 VAC, 18 A, 1/4 to 2 in Bolt, Reversing: Yes, Forward/Off/Reverse/Integral Foot Switch Control
The model 535A maintains the ruggedness of the industry workhorse while adding features that make the threading operation more productive. A large chip tray and oil reservoir make the 535A ideal for longer uninterrupted threading. The 535 features a high clearance carriage that makes the threading operation easier and a generous top cover area that is ideal for keeping tools and work related materials handy. The 535A is designed around maximum uptime with the upgrades that matter most to the pipe working professional. Users also benefit from the part commonality between the 535, the 535A automatic and other RIDGID® equipment.
RIDGID® 91322 535A Kit Threading Machine Kit, 1/2 to 2 in Pipe, 1/4 to 2 in Bolt, 120 VAC, 2 hp, 16/46/58 rpm Speed
CBPN:147724
MPN:91322
UPC:095691913227
Price:
$9826.09Â /Â EA
Oversize or overweight
This item cannot ship via small package carrier, such as UPS or FedEx Ground. Delivery options will be available at checkout.
Â
DESCRIPTION
RIDGID® Threading Machine Kit, Bare Tool/Kit: Kit, 1/2 to 2 in Pipe, 16/46/58 rpm Speed, 2 hp, 120 VAC, 18 A, 1/4 to 2 in Bolt, Reversing: Yes, Forward/Off/Reverse/Integral Foot Switch Control
The model 535A maintains the ruggedness of the industry workhorse while adding features that make the threading operation more productive. A large chip tray and oil reservoir make the 535A ideal for longer uninterrupted threading. The 535 features a high clearance carriage that makes the threading operation easier and a generous top cover area that is ideal for keeping tools and work related materials handy. The 535A is designed around maximum uptime with the upgrades that matter most to the pipe working professional. Users also benefit from the part commonality between the 535, the 535A automatic and other RIDGID® equipment.
Specifications
Brand: RIDGID®
Weight:Â 370lbs
Amperage Rating:Â 18 A
Voltage Rating:Â 120 VAC
Bare Tool/Kit:Â Kit
Bolt Size:Â 1/4 to 2 in
Control Type:Â Forward/Off/Reverse/Integral Foot Switch
Horsepower:Â 2 hp
Pipe Capacity:Â 1/2 to 2 in
Speed:Â 16/46/58 rpm
Reversing:Â Yes
Manufacturer Name:Â Emerson Electric
Includes:Â 11931 Thread Cutting Oil, 44185 E1032 Wheel Cutter, 97065 811A 1/8 to 2 in NPT Self-Opening, RH Die Head, 47765 1/2 to 3/4 in Pipe Dies for Use in Universal Die Heads (Nos. 504A, 711, 713, 811A, 815A, 816, 817 and 842), 47770 1 to 2 in Pipe Dies For Use in Universal Die Heads (#504A, 711, 713, 811A, 815A, 816, 817 and 842), 42365 341 Reamer, 42390 820 Wheel Type Cutter, 46030 3/16 in Hex Key, 46015 5/32 in Hex Key and 1 Gal Extreme Performance Threading Oil
Warranty:Â Lifetime
Country of Origin:Â US
Standards and Approvals:Â CSA Certified | UL Listed
Item Features
- Large 1.75 gal oil reservoir
- Large chip tray
- Generous top cover for keeping tools and fittings handy
- High clearance carriage
- Can be used with geared threader Model: 141
- Uses Model: 816/817 semi-automatic, Model: 815A self-opening or Model: 811A quick-opening die heads
- Length gauge for quick, accurate cut-off
- Steel Cabinet Features: 17 ga steel walls and welded construction, two internal and one external storage shelves, Oversized bi-fold door with steel clasp, Cut-outs for power cord and foot switch storage and two drain plugs for easy cleaning
- Automatic chuck with four reversible forged jaws
- Automatic, centering only rear centering device
- Self-centering full floating cutters
- Self-priming gerotor oil pump
