ProPress Bronze Pipe Dielectric Union

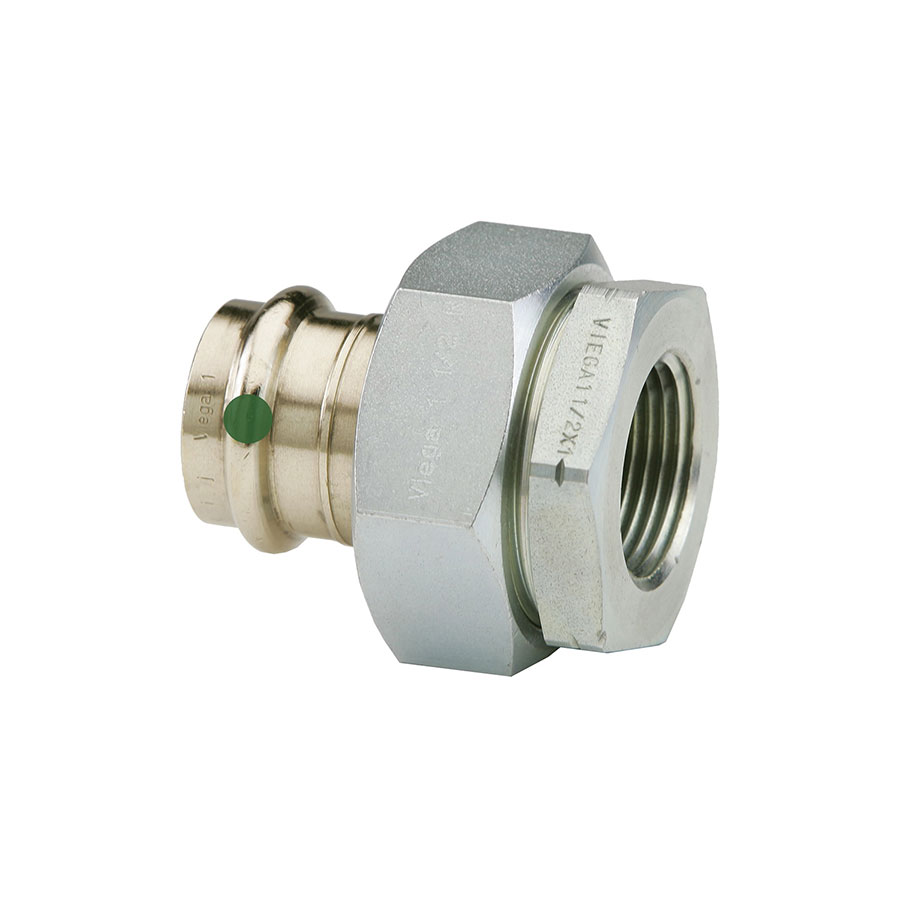

ProPress® 79160 Pipe Dielectric Union, 3/4 in Nominal, Press x FNPT End Style, Bronze, EPDM Seal, Import

CBPN:195859

UPC:691514791609

MPN:79160

Price:
$48.39 / EA

DESCRIPTION

ProPress® Lead Free Pipe Dielectric Union, Fitting/Connector Type: Union, 3/4 in Nominal, Press x FNPT, 200 psi, 0 To 250 deg F, Bronze, 2-37/64 in L, EPDM Seal, Import

Viega ProPress® is the original press pipe joining system. Pressing pipe connections saves time and labor compared to traditional soldering and Viega ProPress® offers more features and benefits than any other imitation press system.

ProPress® 79160 Pipe Dielectric Union, 3/4 in Nominal, Press x FNPT End Style, Bronze, EPDM Seal, Import

CBPN:195859

MPN:79160

UPC:691514791609

Price:
$48.39 / EA

Viega ProPress

DESCRIPTION

ProPress® Lead Free Pipe Dielectric Union, Fitting/Connector Type: Union, 3/4 in Nominal, Press x FNPT, 200 psi, 0 To 250 deg F, Bronze, 2-37/64 in L, EPDM Seal, Import

Viega ProPress® is the original press pipe joining system. Pressing pipe connections saves time and labor compared to traditional soldering and Viega ProPress® offers more features and benefits than any other imitation press system.

Specifications

BrandProPress®
MaterialBronze
Domestic/ImportImport
End StylePress x FNPT
Fitting/Connector TypeUnion
Nominal Size3/4 in
Pressure Rating200 psi
Temperature Rating0 to 250 deg F
Dimensions2-37/64 in L
Seal MaterialEPDM
Weight1.147 lbs
Standards ApprovalsASTM B88,CSA Certified,FM Approved,IAPMO/UPC LC-4,ICC-ES PMG 1036,NSF 61,UL Listed

Item Features

  • Fast and easy to use one squeeze of the trigger makes 1/2 to 4 in connections in four to seven seconds
  • Reliable- achieve a consistent, strong, reliable, watertight seal
  • Minimizes system downtime- Viega ProPress® allows you to join wet connections, making it the fastest solution for maintenance and emergency repair jobs
  • Versatile- You can install Viega ProPress® virtually anywhere in commercial, industrial and residential applications, for both new construction and renovations
  • Requires less equipment
  • Produces measurable results- Viega proPress® has rapidly become a preferred method for fast, clean and safe joining of copper tubing
  • Smart connect feature- Viega's patented smart connect feature helps installers identify unpressed connections quickly and accurately during pressure testing
  • Viega smart Connect® feature is available on all of our fittings and most of our valves
  • Permanent connection
  • Consistent professional appearance
  • ASTM B88 tubing
