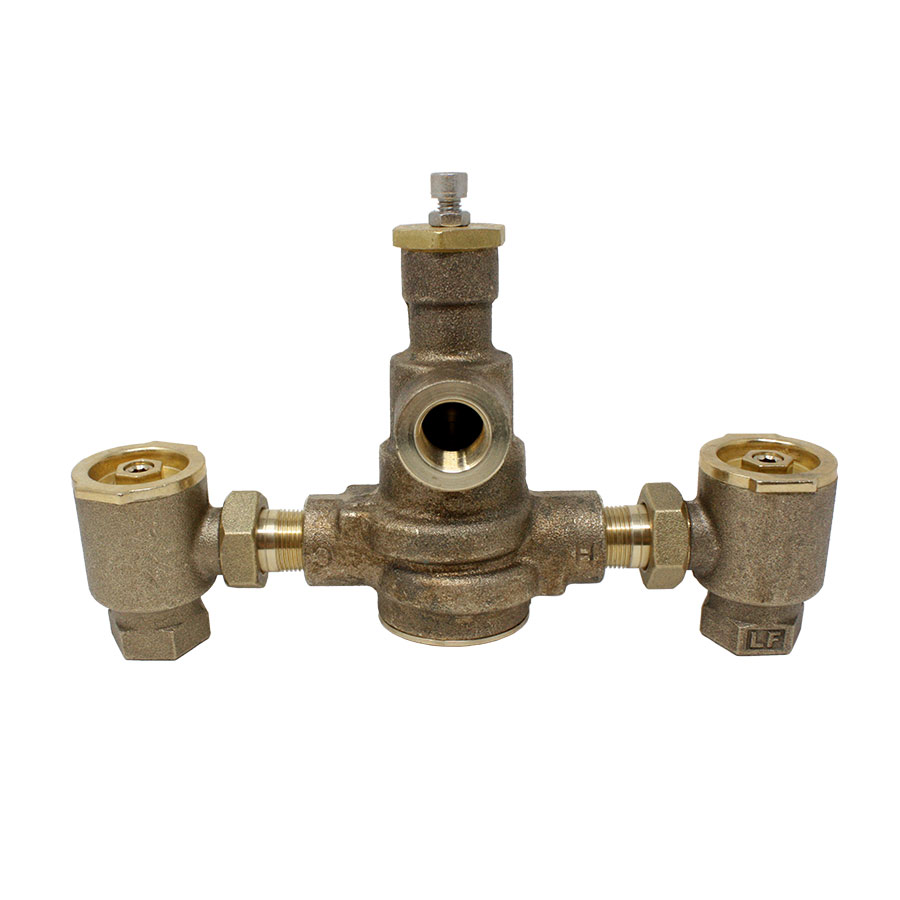

Watts Powers LFMM432-3 Tempering Valve

Powers™ HydroGuard® 6550065 LFMM430 XP Master Tempering Valve, 3/4 x 1 in Nominal, NPT End Style, 125 psi Pressure, 64 gpm Flow Rate, Brass Body, Domestic

CBPN:166902

UPC:686408621438

MPN:6550065

Price:
$1013.46 / EA
Prop 65:

DESCRIPTION

Powers™ HydroGuard® XP Master Tempering Valve, Series: LFMM430, 3/4 x 1 in Nominal, NPT, 125 psi, 5 to 200 deg F, 64 gpm, Media: Water, Brass Body, Rough Bronze, 11-5/8 in L, Domestic

Master tempering valves available in five sizes that temper water as high as 208 gpm and as low as 3 gpm. All valves are listed to ASSE 1017 and certified to CSA B125. Valves feature advanced paraffin actuation technology for dynamic response and excellent low flow temperature control. The LFMM430 line also features a single-seat design for virtual shut down in the event of cold-water failure, triple-duty check stops with screens, and a 5 deg F approach temperature for low temperature hot water supply. Valves are available in rough Lead Free bronze and chrome plated finish.

Powers™ HydroGuard® 6550065 LFMM430 XP Master Tempering Valve, 3/4 x 1 in Nominal, NPT End Style, 125 psi Pressure, 64 gpm Flow Rate, Brass Body, Domestic

CBPN:166902

MPN:6550065

UPC:686408621438

Price:
$1013.46 / EA

Prop 65:
Watts Powers Brand Logo

DESCRIPTION

Powers™ HydroGuard® XP Master Tempering Valve, Series: LFMM430, 3/4 x 1 in Nominal, NPT, 125 psi, 5 to 200 deg F, 64 gpm, Media: Water, Brass Body, Rough Bronze, 11-5/8 in L, Domestic

Master tempering valves available in five sizes that temper water as high as 208 gpm and as low as 3 gpm. All valves are listed to ASSE 1017 and certified to CSA B125. Valves feature advanced paraffin actuation technology for dynamic response and excellent low flow temperature control. The LFMM430 line also features a single-seat design for virtual shut down in the event of cold-water failure, triple-duty check stops with screens, and a 5 deg F approach temperature for low temperature hot water supply. Valves are available in rough Lead Free bronze and chrome plated finish.

Specifications

BrandPowers™
Weight9.68lbs
Nominal Size3/4 x 1 in
End StyleNPT
Pressure Rating125 psi
Body MaterialBrass
Dimensions11-5/8 in L
FinishRough Bronze
Flow Rate64 gpm
Manufacturer NameWatts Water Technologies
MediaWater
SeriesLFMM430
Temperature Rating5 to 200 deg F
ApplicationCommercial, Non-Health Hazard Applications
Warranty1 year Limited
Domestic/ImportDomestic
Country of OriginUS
Standards and ApprovalsASSE 1017 | Advanced Thermal Activation | CSA B125 | PROP65: This product can expose you to chemicals including lead which is known to the State of California to cause cancer and birth defects or other reproductive harm.

Item Features

  • 64 gpm valve capacity at 45 psi
  • Advanced thermal actuator
  • Rotatable union triple-duty checkstops
  • Vandal-resistant, locking mechanism to secure temperature setting
  • Virtual shutoff if supply pressure fails
  • Factory tested
  • Mounts in any position
  • 60 to 90 deg F adjustment temperature
  • Dirt and lime resistant poppet and seat design
  • The wetted surface of this product contacted by consumable water contains less than 0.25% of lead by weight
