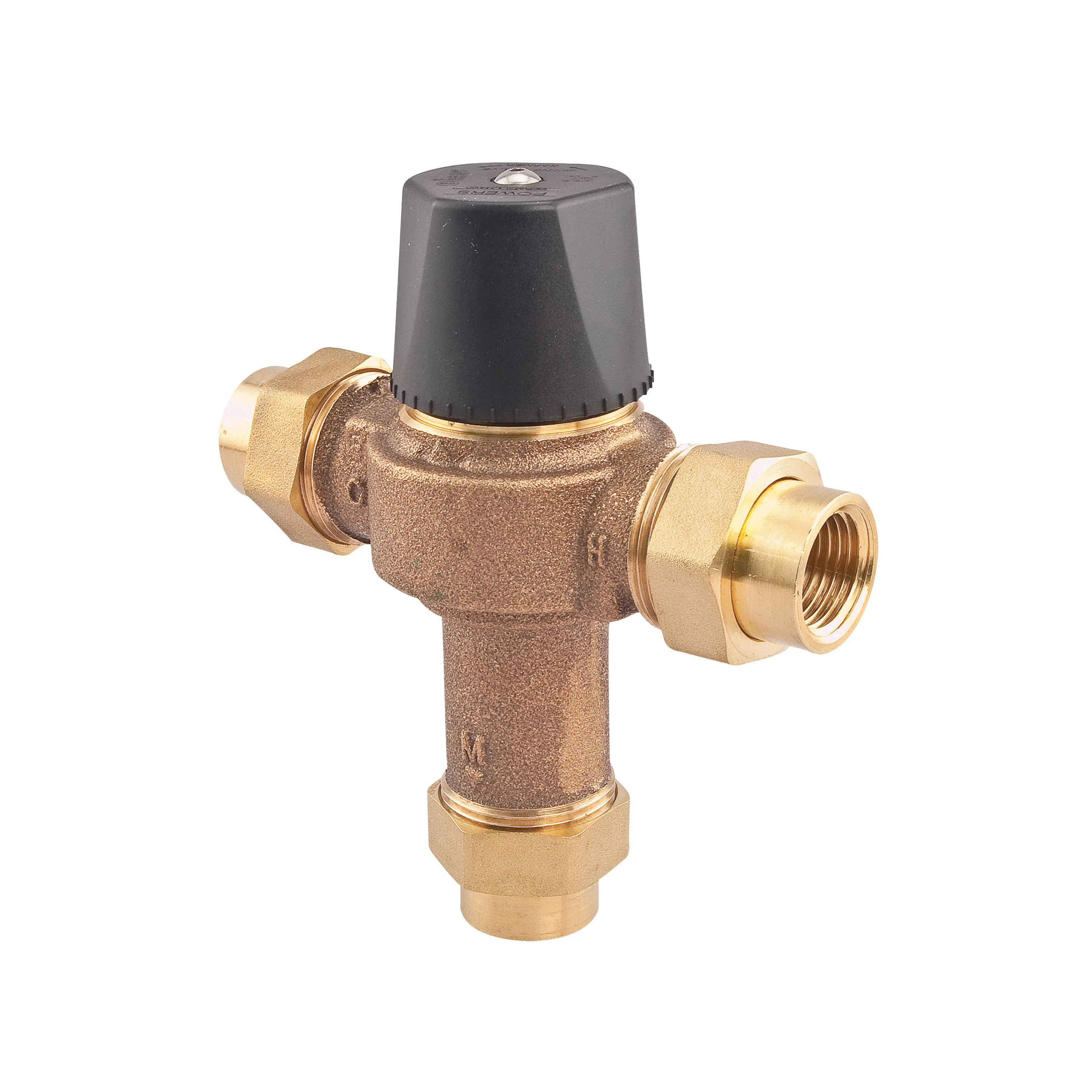

Powers™ 6550030 Lavatory Tempering Valve, 1/2 in Nominal, FNPT End Style, 125 psi Pressure, Cast Copper Silicon Alloy Body, Domestic
CBPN:176183
UPC:686408614447
MPN:6550030
Price:
$185.30 / EA
Prop 65:
DESCRIPTION
Powers™ Lavatory Tempering Valve, Lead Free, 1/2 in Nominal, FNPT, 125 psi, 4-7/8 in Inlet to Outlet Length, Cast Copper Silicon Alloy Body, 5-7/16 in W, Domestic
This 1/2 in HydroGuard (R) lead free under the counter thermostatic tempering valve is designed for lavatory applications where the temperature of hot water must be controlled for safe, economic use. It features a rugged brass body, union NPT female connections, lock-in handle mechanism, paraffin-based actuator, integral check valves with inlet screens to prevent cross-flow and contamination. The thermostatic element ensures optimal, consistent performance over a wide range of temperatures. The temperature operating range is 80 to 120 degrees F (27 to 49 degrees C) and the maximum operating pressure is 125 PSI (862 kPa).
Powers™ 6550030 Lavatory Tempering Valve, 1/2 in Nominal, FNPT End Style, 125 psi Pressure, Cast Copper Silicon Alloy Body, Domestic
CBPN:176183
MPN:6550030
UPC:686408614447
Price:
$185.30 / EA
Prop 65:
DESCRIPTION
Powers™ Lavatory Tempering Valve, Lead Free, 1/2 in Nominal, FNPT, 125 psi, 4-7/8 in Inlet to Outlet Length, Cast Copper Silicon Alloy Body, 5-7/16 in W, Domestic
This 1/2 in HydroGuard (R) lead free under the counter thermostatic tempering valve is designed for lavatory applications where the temperature of hot water must be controlled for safe, economic use. It features a rugged brass body, union NPT female connections, lock-in handle mechanism, paraffin-based actuator, integral check valves with inlet screens to prevent cross-flow and contamination. The thermostatic element ensures optimal, consistent performance over a wide range of temperatures. The temperature operating range is 80 to 120 degrees F (27 to 49 degrees C) and the maximum operating pressure is 125 PSI (862 kPa).
Specifications
Brand: Powers™
Body Material: Cast Copper Silicon Alloy
End Style: FNPT
Nominal Size: 1/2 in
Pressure Rating: 125 psi
Dimensions: 5-7/16 in W
Inlet to Outlet Length: 4-7/8 in
Manufacturer Name: Watts Water Technologies
Domestic/Import: Domestic
Country of Origin: US
Standards and Approvals: ASSE 1069 | ASSE 1070 | CSA B125 | cUPC Listed | IAPMO Listed | PROP65: This product can expose you to chemicals including lead which is known to the State of California to cause cancer and birth defects or other reproductive harm.
Item Features
- Solid brass construction for enhanced durability
- Corrosion resistant internal component
- Temperature adjustment handle has a locking mechanism to prevent tampering
- Polysulfone plunger for extended life
- Temperature control to ASSE 1069, 1070 and 1017 down to 0.5 gpm
- Advanced thermal actuator improves performance at low flow
- Lead free cast copper silicon alloy body construction for durability and to comply with lead free requirements
- Adjustable temperature selection with lock down
- Union connections for easy maintenance
- Integral checks and screen prevents cross-flow and contamination
