Watts Powers LFMM434-3 Tempering Valve

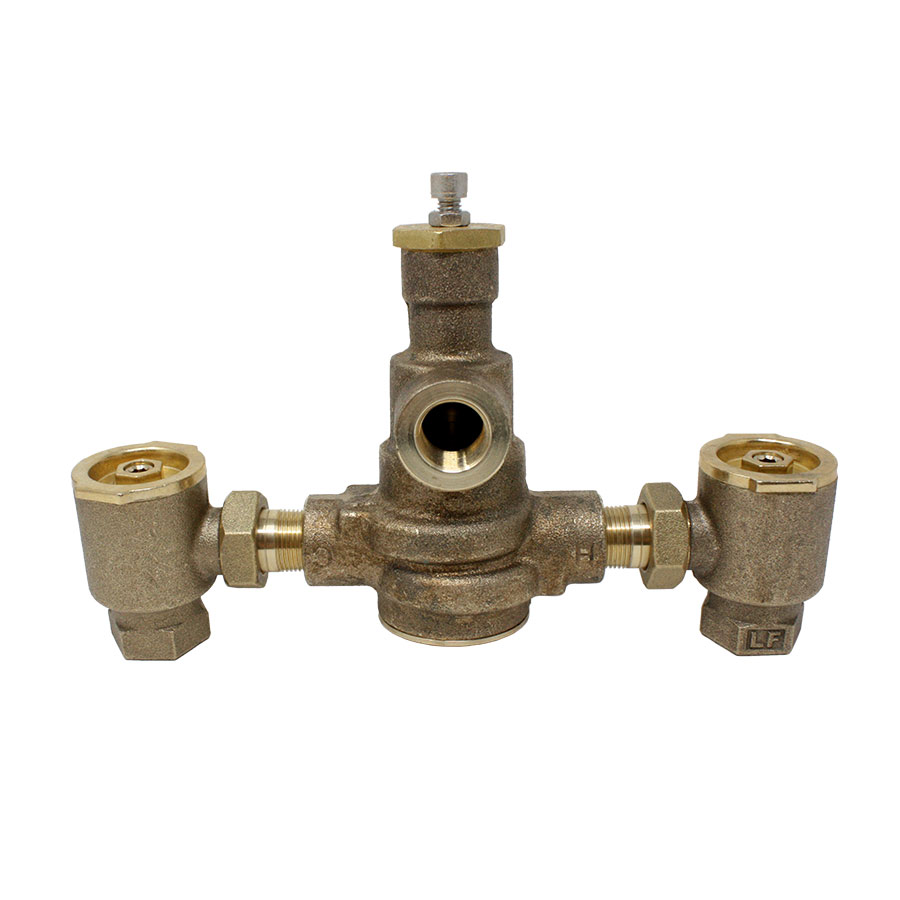

Powers™ HydroGuard® 0123814 LFMM430 XP Master Tempering Valve, 1-1/4 x 1-1/2 in Nominal, NPT End Style, 125 psi Pressure, 144 gpm Flow Rate, Brass Body, Domestic

CBPN:166905

UPC:686408626785

MPN:0123814

Price:
$2018.90 / EA
Availability Information
Prop 65:

DESCRIPTION

Powers™ HydroGuard® XP Master Tempering Valve, Series: LFMM430, 1-1/4 x 1-1/2 in Nominal, NPT, 125 psi, 5 to 200 deg F, 144 gpm, Media: Water, Brass Body, Rough Bronze, 15-1/4 in L, Domestic

Master tempering valves available in five sizes that temper water as high as 208 gpm and as low as 3 gpm. All valves are listed to ASSE 1017 and certified to CSA B125. Valves feature advanced paraffin actuation technology for dynamic response and excellent low flow temperature control. The LFMM430 line also features a single-seat design for virtual shut down in the event of cold-water failure, triple-duty check stops with screens, and a 5 deg F approach temperature for low temperature hot water supply. Valves are available in rough Lead Free bronze and chrome plated finish.

Powers™ HydroGuard® 0123814 LFMM430 XP Master Tempering Valve, 1-1/4 x 1-1/2 in Nominal, NPT End Style, 125 psi Pressure, 144 gpm Flow Rate, Brass Body, Domestic

CBPN:166905

MPN:0123814

UPC:686408626785

Price:
$2018.90 / EA
Availability Information

Prop 65:
Watts Powers Brand Logo

DESCRIPTION

Powers™ HydroGuard® XP Master Tempering Valve, Series: LFMM430, 1-1/4 x 1-1/2 in Nominal, NPT, 125 psi, 5 to 200 deg F, 144 gpm, Media: Water, Brass Body, Rough Bronze, 15-1/4 in L, Domestic

Master tempering valves available in five sizes that temper water as high as 208 gpm and as low as 3 gpm. All valves are listed to ASSE 1017 and certified to CSA B125. Valves feature advanced paraffin actuation technology for dynamic response and excellent low flow temperature control. The LFMM430 line also features a single-seat design for virtual shut down in the event of cold-water failure, triple-duty check stops with screens, and a 5 deg F approach temperature for low temperature hot water supply. Valves are available in rough Lead Free bronze and chrome plated finish.

Specifications

BrandPowers™
Body MaterialBrass
Domestic/ImportDomestic
End StyleNPT
FinishRough Bronze
Flow Rate144 gpm
Nominal Size1-1/4 x 1-1/2 in
Pressure Rating125 psi
SeriesLFMM430
Temperature Rating5 to 200 deg F
Dimensions15-1/4 in L
MediaWater

Item Features

  • Advanced thermal actuator
  • Rotatable union triple-duty checkstops
  • Vandal-resistant, locking mechanism to secure temperature setting
  • Virtual shutoff if supply pressure fails
  • Factory tested
  • Mounts in any position
  • 60 to 90 deg F adjustment temperature
  • Dirt and lime resistant poppet and seat design
  • The wetted surface of this product contacted by consumable water contains less than 0.25% of lead by weight
