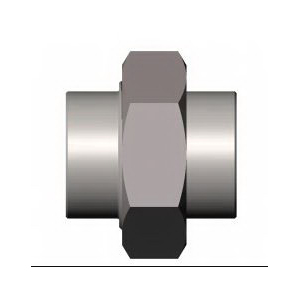

Penn MACHINE 4500301701 03017 Union, 2-1/2 in Nominal, FNPT End Style, 3000 lb, Carbon Steel
CBPN: 58494
MPN:4500301701
Price:
$180.11 / EA
DESCRIPTION
Penn MACHINE Union, Series: 03017, Fitting/Connector Type: Union, 2-1/2 in Nominal, FNPT, 4 in Length, SCH 160, 3000 lb, Forged, Carbon Steel, 3.615 in OD
Penn MACHINE 4500301701 03017 Union, 2-1/2 in Nominal, FNPT End Style, 3000 lb, Carbon Steel
CBPN: 58494
MPN:4500301701
Price:
$180.11 / EA
DESCRIPTION
Penn MACHINE Union, Series: 03017, Fitting/Connector Type: Union, 2-1/2 in Nominal, FNPT, 4 in Length, SCH 160, 3000 lb, Forged, Carbon Steel, 3.615 in OD
Specifications
Brand: Penn MACHINE
Weight: 8.358 lbs
Fitting/Connector Type: Union
Nominal Size: 2-1/2 in
End Style: FNPT
Pressure Class: 3000 lb
Material: Carbon Steel
Dimensions: 3.615 in OD
Length: 4 in
Manufacturer Name: Pennsylvania Machine Works
Method of Manufacture: Forged
Schedule Rating: SCH 160
Series: 03017
Standards and Approvals: ANSI/ASME B1.20.1-1983 | ASTM A105 | MSS-SP83 | PED Certified Canadian Registered in all provinces
Item Features
- 4-7/8 in across flat
- 0.933 in L thread screwed into fitting
