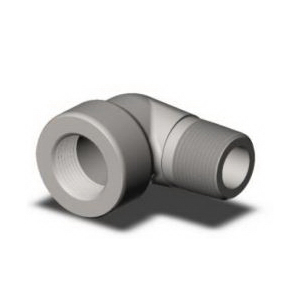

Penn MACHINE 3000300501 03005 90 deg Street Elbow, 1-1/2 in Nominal, FNPT End Style, 3000 lb, Carbon Steel
CBPN: 5000
MPN:3000300501
Price:
$64.58 / EA
DESCRIPTION
Penn MACHINE Street Elbow, Series: 03005, Fitting/Connector Type: 90 deg Elbow, 1-1/2 in Nominal, FNPT, SCH 160, 3000 lb, Forged, Carbon Steel, 2-3/4 in OD
Penn MACHINE 3000300501 03005 90 deg Street Elbow, 1-1/2 in Nominal, FNPT End Style, 3000 lb, Carbon Steel
CBPN: 5000
MPN:3000300501
Price:
$64.58 / EA
DESCRIPTION
Penn MACHINE Street Elbow, Series: 03005, Fitting/Connector Type: 90 deg Elbow, 1-1/2 in Nominal, FNPT, SCH 160, 3000 lb, Forged, Carbon Steel, 2-3/4 in OD
Specifications
Brand: Penn MACHINE
Weight: 3.04 lbs
Fitting/Connector Type: 90 deg Elbow
Nominal Size: 1-1/2 in
End Style: FNPT
Pressure Class: 3000 lb
Material: Carbon Steel
Dimensions: 2-3/4 in OD
Manufacturer Name: Pennsylvania Machine Works
Method of Manufacture: Forged
Schedule Rating: SCH 160
Series: 03005
Standards and Approvals: ANSI/ASME B1.20.1-1983 | ASME B16.11 | ASTM A105 | PED Certified Canadian Registered in all provinces
Item Features
- 0.681 in L thread screwed into fitting
