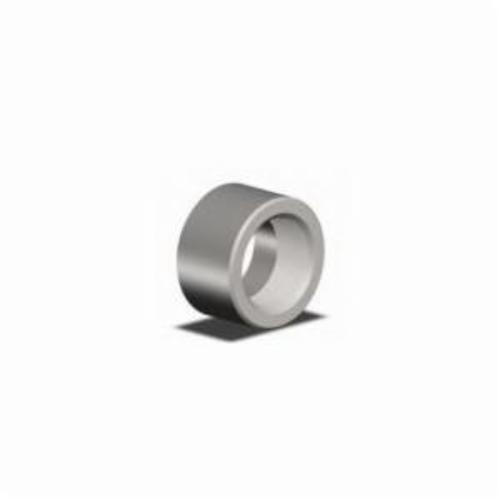

Penn MACHINE 2000300901 Half Coupling, 1 in Nominal, FNPT End Style, 3000 lb, Carbon Steel
CBPN: 5015
MPN:2000300901
Price:
$4.65 / EA
DESCRIPTION
Penn MACHINE Half Coupling, Series: 03009, Fitting/Connector Type: Coupling, 1 in Nominal, FNPT, 1.88 in Length, SCH 160, 3000 lb Pressure Class, Method of Manufacture: Forged, Carbon Steel, 1-3/4 in OD
Penn MACHINE 2000300901 Half Coupling, 1 in Nominal, FNPT End Style, 3000 lb, Carbon Steel
CBPN: 5015
MPN:2000300901
Price:
$4.65 / EA
DESCRIPTION
Penn MACHINE Half Coupling, Series: 03009, Fitting/Connector Type: Coupling, 1 in Nominal, FNPT, 1.88 in Length, SCH 160, 3000 lb Pressure Class, Method of Manufacture: Forged, Carbon Steel, 1-3/4 in OD
Specifications
Brand: Penn MACHINE
Weight: 0.41 lbs
Fitting/Connector Type: Half Coupling
Nominal Size: 1 in
End Style: FNPT
Pressure Class: 3000 lb
Material: Carbon Steel
Dimensions: 1-3/4 in OD
Length: 1.88 in
Manufacturer Name: Pennsylvania Machine Works
Method of Manufacture: Forged
Schedule Rating: SCH 160
Series: 03009
Standards and Approvals: ANSI/ASME B1.20.1-1983 | ASME B16.11 | ASTM A105 | PED Certified Canadian Registered in all provinces
Item Features
- 0.661 in L thread screwed into fitting
