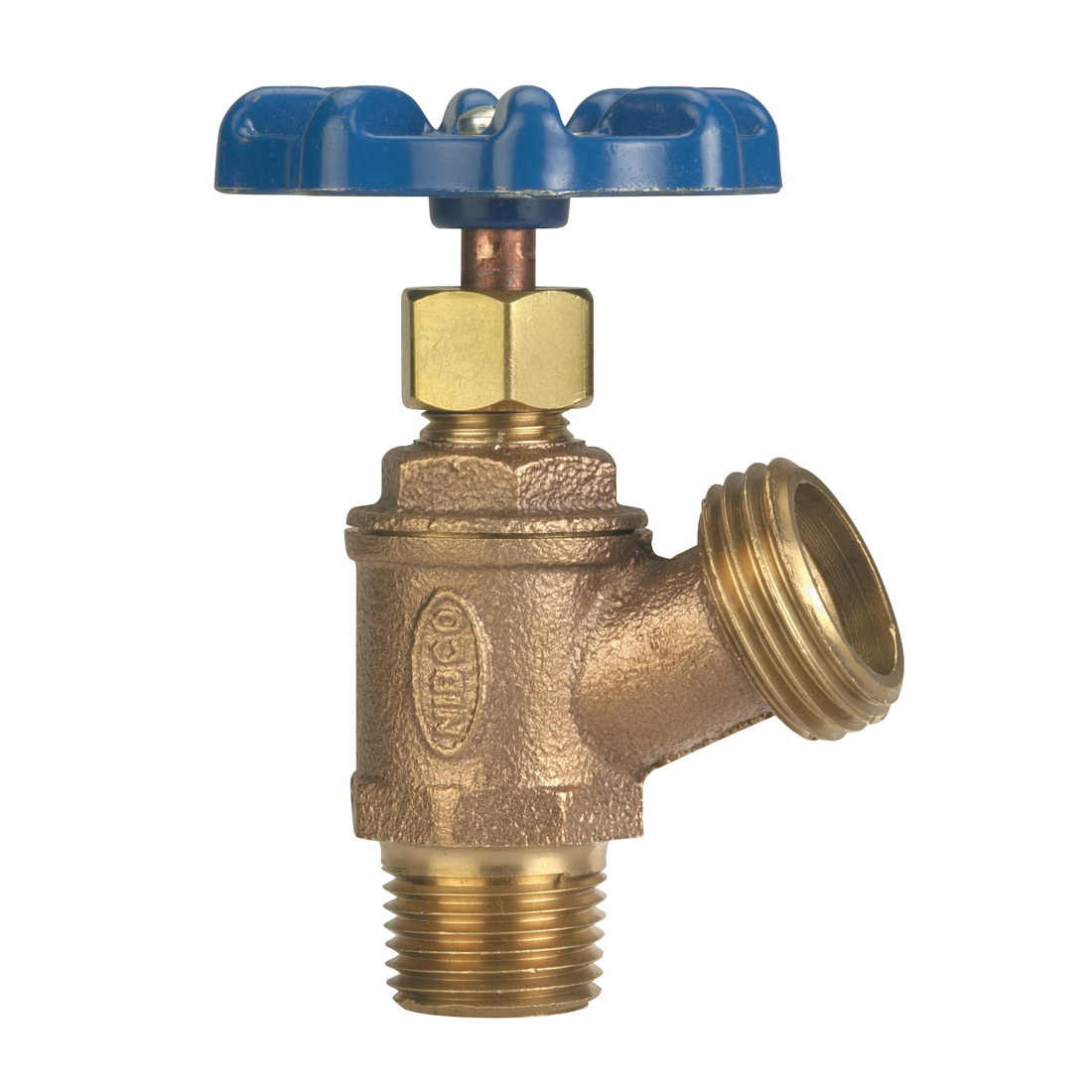

NIBCO® N64N008 74CL Multi-Turn Boiler Drain Valve, 3/4 in Nominal, MNPT x Hose End Style, 125 psi Pressure, Cast Copper Body, Import
CBPN:1573
UPC:039923601865
MPN:N64N008
Price:
$22.22 / EA
Prop 65:
DESCRIPTION
NIBCO® Boiler Drain Valve, Multi-Turn, Series: 74CL, 3/4 in Nominal, MNPT x Hose, 125 psi, 180 deg F, Media: Water, Handwheel Actuator, Cast Copper Body, Cold Formed Copper Alloy Trim, Buna-N, Import
The NIBCO® multi-turn boiler drain is manufactured from dezincification resistant cast copper, with a Buna-N seat. Please refer to NIBCO® technical data sheets and catalogs for engineering and installation information. Choose NIBCO® flow control products for the most specified, versatile and economical option in commercial and residential applications. NIBCO® Boiler Drain Valves are backed by the NIBCO® 2 years limited warranty.
NIBCO® N64N008 74CL Multi-Turn Boiler Drain Valve, 3/4 in Nominal, MNPT x Hose End Style, 125 psi Pressure, Cast Copper Body, Import
CBPN:1573
MPN:N64N008
UPC:039923601865
Price:
$22.22 / EA
Prop 65:
DESCRIPTION
NIBCO® Boiler Drain Valve, Multi-Turn, Series: 74CL, 3/4 in Nominal, MNPT x Hose, 125 psi, 180 deg F, Media: Water, Handwheel Actuator, Cast Copper Body, Cold Formed Copper Alloy Trim, Buna-N, Import
The NIBCO® multi-turn boiler drain is manufactured from dezincification resistant cast copper, with a Buna-N seat. Please refer to NIBCO® technical data sheets and catalogs for engineering and installation information. Choose NIBCO® flow control products for the most specified, versatile and economical option in commercial and residential applications. NIBCO® Boiler Drain Valves are backed by the NIBCO® 2 years limited warranty.
Specifications
Brand: NIBCO®
Weight: 0.522lbs
Actuator Type: Handwheel
Body Material: Cast Copper
End Style: MNPT x Hose
Nominal Size: 3/4 in
Series: 74CL
Temperature Rating: 180 deg F
Type: Multi-Turn
Pressure Rating: 125 psi
Media: Water
Softgoods Material: BUNA-N
Trim Material: Cold Formed Copper Alloy Stem
Manufacturer Name: NIBCO Inc.
Application: Low-Pressure Water Systems and Commercial and Residential Construction
Warranty: 2 years Limited
Domestic/Import: Import
Country of Origin: MX
Standards and Approvals: cSAus Certified
Item Features
- Screw-in bonnet
- Buna-N seat
- Dezincification-resistant
- Cold formed copper alloy stem
