NIBCO® N64N006

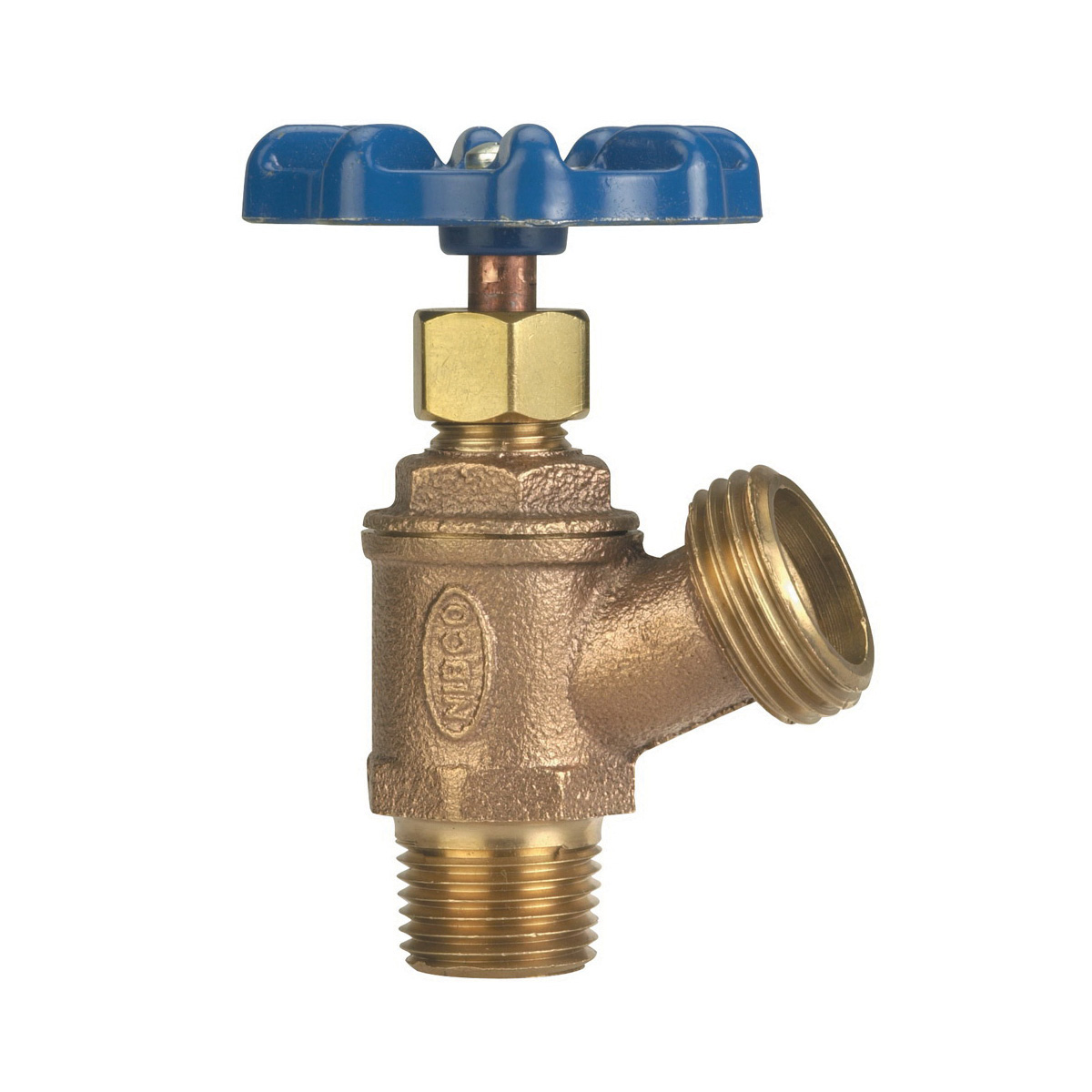

NIBCO® N64N006 74CL Multi-Turn Boiler Drain Valve, 1/2 in Nominal, MNPT x Hose End Style, 125 psi Pressure, Cast Copper Body, Import

CBPN:25289

UPC:039923601858

MPN:N64N006

Price:
$17.07 / EA
Prop 65:

DESCRIPTION

NIBCO® Boiler Drain Valve, Multi-Turn, Series: 74CL, 1/2 in Nominal, MNPT x Hose, 125 psi, 180 deg F, Media: Water, Hand Wheel Actuator, Cast Copper Body, Cold Formed Copper Alloy Stem Trim, Buna-N, Import

The NIBCO® boiler drain ensures trouble-free operation and ease of access. The multi-purpose drain valve is recommended for use in low-pressure water systems. The NIBCO® multi-turn boiler drain is manufactured from dezincification resistant cast copper, with a Buna-N seat. Please refer to NIBCO® technical data sheets and catalogs for engineering and installation information. Choose NIBCO® flow control products for the most specified, versatile and economical option in commercial and residential applications. NIBCO® boiler drain valves are backed by the NIBCO® 2-year limited warranty.

NIBCO® N64N006 74CL Multi-Turn Boiler Drain Valve, 1/2 in Nominal, MNPT x Hose End Style, 125 psi Pressure, Cast Copper Body, Import

CBPN:25289

MPN:N64N006

UPC:039923601858

Price:
$17.07 / EA

Prop 65:
Nibco Logo

DESCRIPTION

NIBCO® Boiler Drain Valve, Multi-Turn, Series: 74CL, 1/2 in Nominal, MNPT x Hose, 125 psi, 180 deg F, Media: Water, Hand Wheel Actuator, Cast Copper Body, Cold Formed Copper Alloy Stem Trim, Buna-N, Import

The NIBCO® boiler drain ensures trouble-free operation and ease of access. The multi-purpose drain valve is recommended for use in low-pressure water systems. The NIBCO® multi-turn boiler drain is manufactured from dezincification resistant cast copper, with a Buna-N seat. Please refer to NIBCO® technical data sheets and catalogs for engineering and installation information. Choose NIBCO® flow control products for the most specified, versatile and economical option in commercial and residential applications. NIBCO® boiler drain valves are backed by the NIBCO® 2-year limited warranty.

Specifications

BrandNIBCO®
Series74CL
TypeMulti-Turn
Body MaterialCast Copper
Domestic/ImportImport
End StyleMNPT x Hose
Nominal Size1/2 in
Pressure Rating125 psi
Temperature Rating180 deg F
Actuator TypeHand Wheel
MediaWater
Softgoods MaterialBuna-N
Trim MaterialCold Formed Copper Alloy Stem
Weight0.507 lbs

Item Features

  • Screw-in bonnet
  • 3/4 in MIP to hose connections
  • Dezincification resistant
  • 1/2 in Cup/MIP to hose connections
  • Use in U.S. drinking water applications is prohibited after January 3, 2014
  • Buna-N seat disc
