Merit Brass KV210FP-16

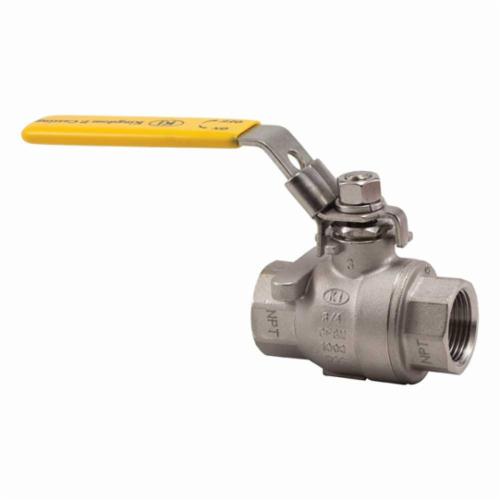

Merit Brass KV210FP-16 K Series 2-Piece Ball Valve With Handle, 1 in Nominal, FNPT End Style, 1000 lb, 316 Stainless Steel Body, Full Port, Import

CBPN:1775

UPC:671404105754

MPN:KV210FP-16

Price:
$60.23 / EA

DESCRIPTION

Merit Brass Ball Valve, 2-Piece, Series: K Series, 1 in Nominal, FNPT, 1000 lb Pressure Class, Full Port, Media: Gas/Oil/Water, 316 Stainless Steel Ball, 3.35 in Inlet to Outlet Length, 3.03 in Top to Inlet Center, 316 Stainless Steel Body, 316 Stainless Steel Stem and PTFE Ball Seat Trim, 0.98 in Dia, Import

Merit Brass KV210FP-16 K Series 2-Piece Ball Valve With Handle, 1 in Nominal, FNPT End Style, 1000 lb, 316 Stainless Steel Body, Full Port, Import

CBPN:1775

MPN:KV210FP-16

UPC:671404105754

Price:
$60.23 / EA

Merit Brass Logo

DESCRIPTION

Merit Brass Ball Valve, 2-Piece, Series: K Series, 1 in Nominal, FNPT, 1000 lb Pressure Class, Full Port, Media: Gas/Oil/Water, 316 Stainless Steel Ball, 3.35 in Inlet to Outlet Length, 3.03 in Top to Inlet Center, 316 Stainless Steel Body, 316 Stainless Steel Stem and PTFE Ball Seat Trim, 0.98 in Dia, Import

Specifications

BrandMerit Brass
Weight1.901 lbs
Nominal Size1 in
End StyleFNPT
Pressure Class1000 lb
Body MaterialStainless Steel
Port TypeFull
Ball Material316 Stainless Steel
Dimensions0.98 in Dia
Inlet to Outlet Length3.35 in
Manufacturer NameMerit Brass
MediaGas/Oil/Water
SeriesK Series
Top to Inlet Center3.03 in
Trim Material316 Stainless Steel Stem and PTFE Ball Seat
Type2-Piece
Domestic/ImportImport
Country of OriginCN
Standards and ApprovalsASME B16.34/MSS SP-110 Design | ASME B1.20.1 Pipe Thread | EN 12516-3 Wall Thickness | MSS SP-110 Inspection and Testing

Item Features

  • Blow-out proof stem
  • Pressure balance hole ball slot
  • Castings approved by TUV AD 2000-Merkblatt W0
  • Stainless steel 304 gland nut/stem washer/handle/locking device, A194-8 stem nut, vinyl plastic handle sleeve, CF8M/CF8 WCB cap
