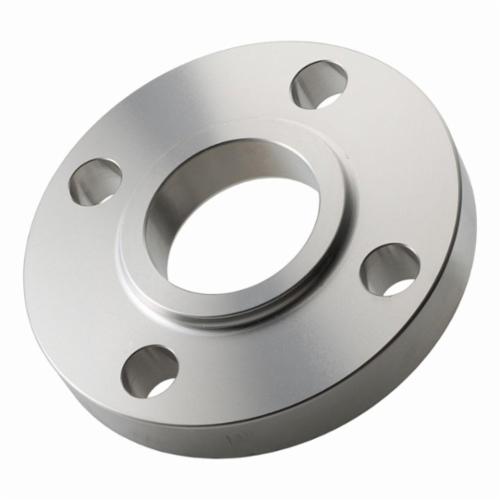

Merit Brass A652L-16 Lap Joint Flange, 1 in, 316/316L Stainless Steel, 150 lb, Import
CBPN:6634
UPC:671404103859
MPN:A652L-16
Price:
$81.69 / EA
DESCRIPTION
Merit Brass Lap Joint Flange, 1 in Nominal, 1.38 in Inside Dia, 0.56 in Thickness, 3.12 in Bolt Circle, 4 Bolt Holes, 0.62 in, 4-1/4 in Outside Dia, 150 lb, 1.94 in Hub Dia, 0.69 in Length Through Hub, 316/316L Stainless Steel, Import
Merit Brass A652L-16 Lap Joint Flange, 1 in, 316/316L Stainless Steel, 150 lb, Import
CBPN:6634
MPN:A652L-16
UPC:671404103859
Price:
$81.69 / EA
DESCRIPTION
Merit Brass Lap Joint Flange, 1 in Nominal, 1.38 in Inside Dia, 0.56 in Thickness, 3.12 in Bolt Circle, 4 Bolt Holes, 0.62 in, 4-1/4 in Outside Dia, 150 lb, 1.94 in Hub Dia, 0.69 in Length Through Hub, 316/316L Stainless Steel, Import
Specifications
Brand: Merit Brass
Weight: 1.764lbs
Material: 316/316L Stainless Steel
Nominal Size: 1 in
Inside Diameter: 1.38 in
Outside Diameter: 4-1/4 in
Thickness: 0.56 in
Number of Bolt Holes: 4
Bolt Circle Diameter: 3.12 in
Bolt Hole Size: 0.62 in
Pressure Class: 150 lb
Hub Diameter: 1.94 in
Length Through Hub: 0.69 in
Manufacturer Name: Merit Brass
Domestic/Import: Import
Country of Origin: IN
Standards and Approvals: ANSI B16.5 | ASME SA182 | ASTM A182
Item Features
- 1/2 in Dia bolt
