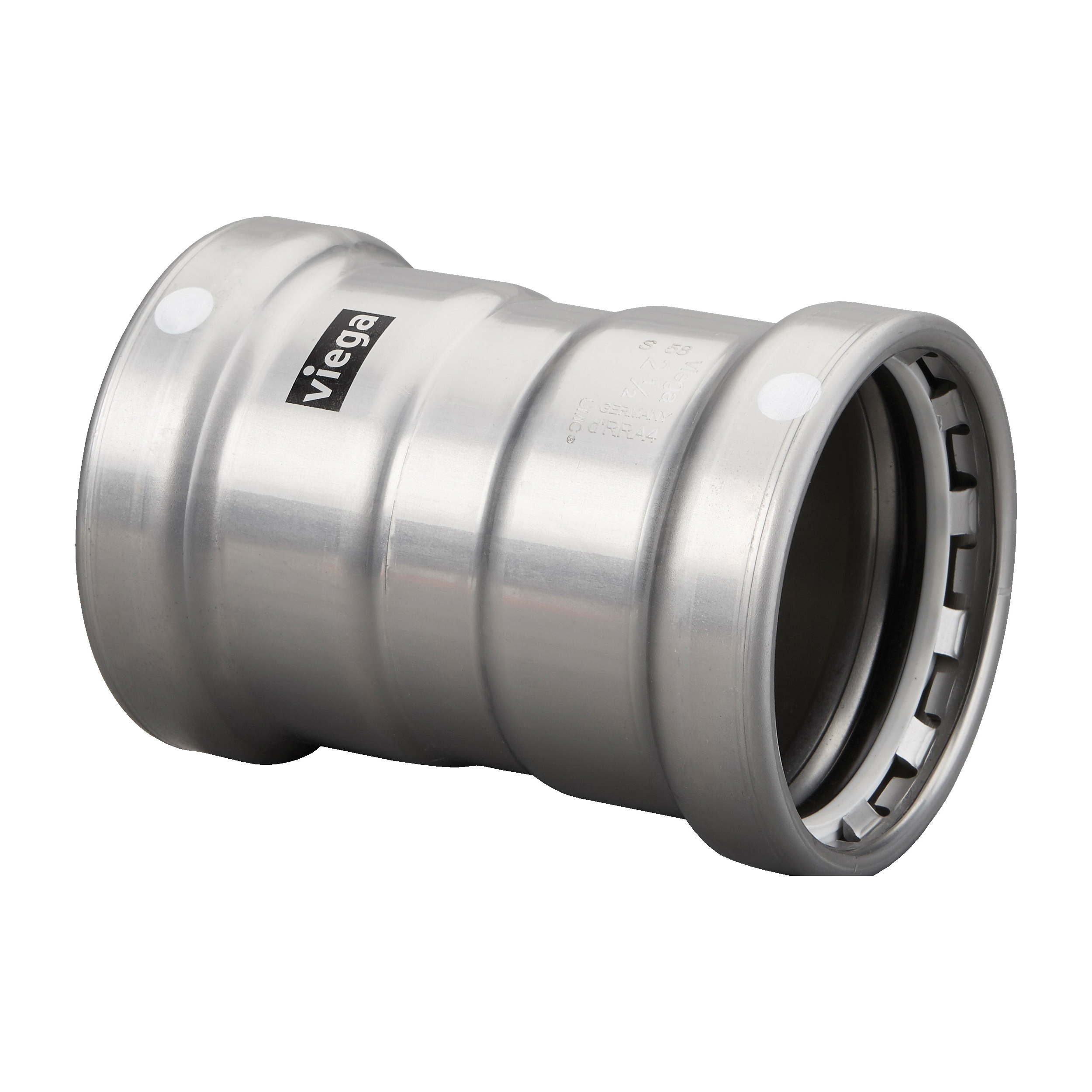

MegaPress® XL 26675 Model 4815XL, Coupling with Stop, 3 in Nominal, Press End Style, Carbon Steel, FKM Seal, Import
CBPN: 222725
UPC:691514266756
MPN:26675
Price:
$168.77 / EA
DESCRIPTION
MegaPress® XL Coupling, Fitting/Connector Type: Coupling, Series: Model 4815XL, 3 in Nominal, Press, 200 psi, 14 to 284 deg F, Carbon Steel, 5.98 in L, FKM Seal, Import
Viega MegaPress® XL is a carbon steel, cold press system designed for use in chilled water, hydronic heating, compressed air and fire sprinkler applications. Viega MegaPress® XL fittings are designed for use in piping systems utilizing ASTM A53, A106, A135 and A795 SCH 10 SCH 40/STD black steel pipe.
MegaPress® XL 26675 Model 4815XL, Coupling with Stop, 3 in Nominal, Press End Style, Carbon Steel, FKM Seal, Import
CBPN: 222725
MPN:26675
UPC:691514266756
Price:
$168.77 / EA
DESCRIPTION
MegaPress® XL Coupling, Fitting/Connector Type: Coupling, Series: Model 4815XL, 3 in Nominal, Press, 200 psi, 14 to 284 deg F, Carbon Steel, 5.98 in L, FKM Seal, Import
Viega MegaPress® XL is a carbon steel, cold press system designed for use in chilled water, hydronic heating, compressed air and fire sprinkler applications. Viega MegaPress® XL fittings are designed for use in piping systems utilizing ASTM A53, A106, A135 and A795 SCH 10 SCH 40/STD black steel pipe.
Specifications
Brand: MegaPress® XL
Weight: 2.367 lbs
Fitting/Connector Type: Coupling
Nominal Size: 3 in
End Style: Press
Material: Carbon Steel
Seal Material: FKM
Dimensions: 5.98 in L
Manufacturer Name: Viega
Pressure Rating: 200 psi
Temperature Rating: 14 to 284 deg F
Includes: FKM Sealing Element (White Dot)
Application: For use with SCH 10 to SCH 40 Carbon Steel Pipe, Commercial and Industrial
Warranty: Limited
Domestic/Import: Import
Country of Origin: DE
Standards and Approvals: ASTM A53/A106/A135 and A795 | ASME B31 | CRN #OA14541.6 | FM Class 1920 | ICC LC1002 | IAPMO PS117 | International Plumbing Code | International Mechanical Code | NFPA 13/13D/13R/31/54 and 58 | NFPA 54 section 404.8 | NACE Standard RP0169-2002 section 5 2009 | Uniform Plumbing Code | Uniform Mechanical Code
Item Features
- Patented Viega Smart Connect® makes secure connection in less than 7 sec
- Minimizes system downtime by allowing for wet connection
- Fast and easy to use
- No threading, cutting oil, or heavy equipment needed
- Helps installers easily identify unpressed connections during pressure testing
- Model 4815XL
