MegaPress 316 Stainless Street 90 Elbow

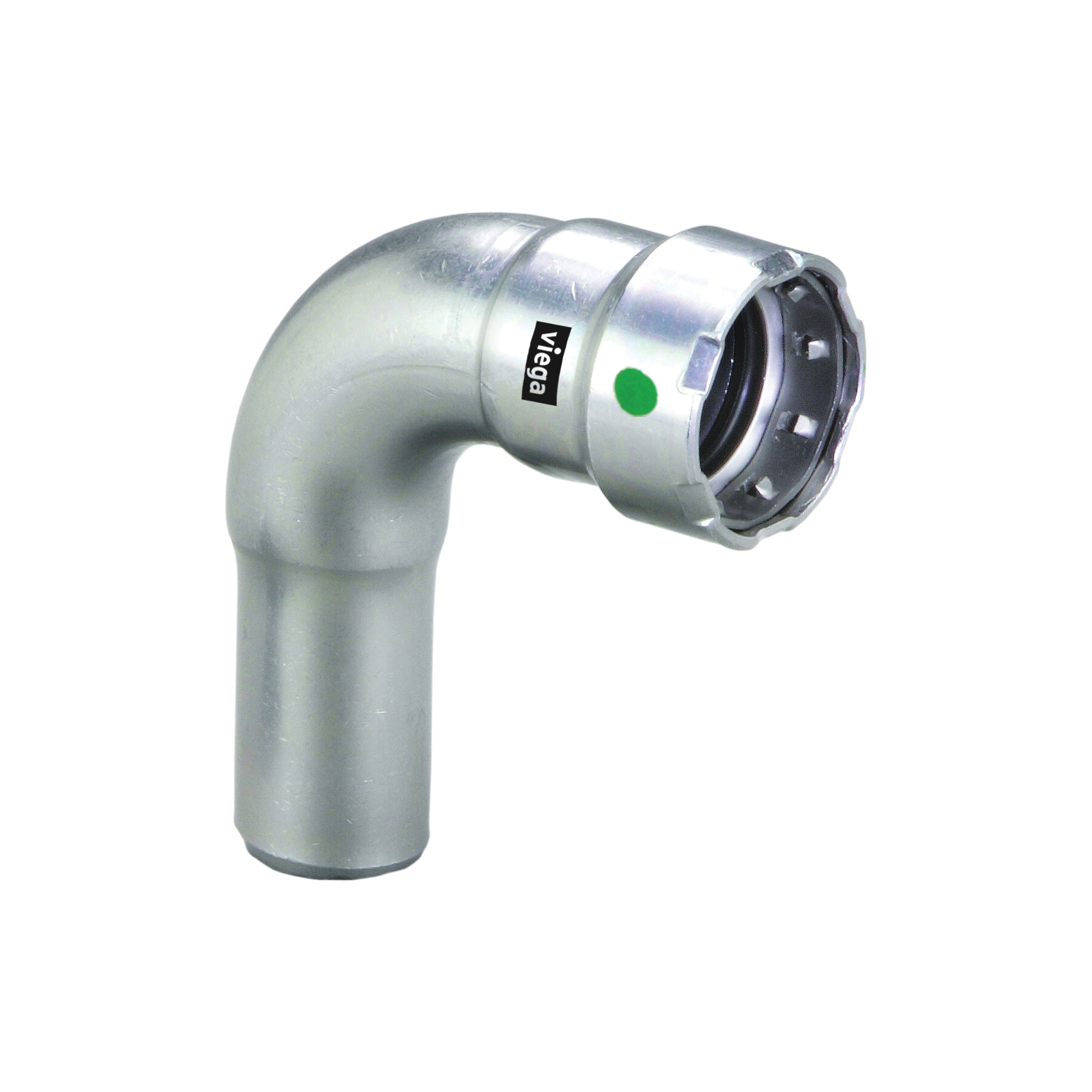

MegaPress® 90045 90 deg Street Elbow, 1-1/2 in, Fitting x Press, 316 Stainless Steel, EPDM Seal, Import

CBPN:211300

UPC:691514900452

MPN:90045

Price:
$179.71 / EA

DESCRIPTION

MegaPress® Street Elbow, Fitting/Connector Type: 90 deg Elbow, 1-1/2 in Nominal, Fitting x Press, 200 psi, 0 to 250 deg F, 316 Stainless Steel, EPDM Seal, Import

Viega MegaPress® Stainless 316 fittings are designed to be used with off-the-shelf Schedule 10 to Schedule 40 stainless steel pipe to form a complete press system that is ideal for many commercial and industrial applications. MegaPress® Stainless 316 fittings utilize a versatile EPDM sealing element to provide a reliable, leak-free connection. A Viega MegaPress® Stainless 316 system can stand up to harsh environments while transporting process and potable water, ammonia, low pressure steam, chlorides or any number of other essential fluids or gases.

MegaPress® 90045 90 deg Street Elbow, 1-1/2 in, Fitting x Press, 316 Stainless Steel, EPDM Seal, Import

CBPN:211300

MPN:90045

UPC:691514900452

Price:
$179.71 / EA

Viega MegaPress

DESCRIPTION

MegaPress® Street Elbow, Fitting/Connector Type: 90 deg Elbow, 1-1/2 in Nominal, Fitting x Press, 200 psi, 0 to 250 deg F, 316 Stainless Steel, EPDM Seal, Import

Viega MegaPress® Stainless 316 fittings are designed to be used with off-the-shelf Schedule 10 to Schedule 40 stainless steel pipe to form a complete press system that is ideal for many commercial and industrial applications. MegaPress® Stainless 316 fittings utilize a versatile EPDM sealing element to provide a reliable, leak-free connection. A Viega MegaPress® Stainless 316 system can stand up to harsh environments while transporting process and potable water, ammonia, low pressure steam, chlorides or any number of other essential fluids or gases.

Specifications

BrandMegaPress®
Weight1.51lbs
End StyleFitting x Press
Material316 Stainless Steel
Nominal Size1-1/2 in
Temperature Rating0 to 250 deg F
Fitting/Connector Type90 deg Elbow
Pressure Rating200 psi
Seal MaterialEPDM
Manufacturer NameViega
IncludesEPDM Sealing Element
ApplicationCommercial and Industrial
WarrantyLimited
Domestic/ImportImport
Country of OriginDE
Standards and ApprovalsASTM A312/A403,CRN 13492.5 A/B,IAPMO to IAPMO PS117,ICC-LC1002,TSSA/ASME B31.1/B31.3/B31.9,NSF/ANSI 61/372

Item Features

  • Patented Viega Smart Connect® makes secure connection in less than 7 sec
  • Minimizes system downtime by allowing for wet connection
  • Fast and easy to use
  • No welding, grinding or heavy equipment needed
  • Helps installers easily identify unpressed connections during pressure testing
  • Engineered with a 420 stainless steel grip ring and 304 stainless steel separator ring
  • Wide range of fitting configurations
  • Eliminate threading and welding
  • No fire watches, hot work permits or gas freezing
  • Makes secure press connections from 1/2 to 2 in less than seven seconds
  • Compatible with existing press tools
  • 316 stainless carries an NSF-16 potable water rating
