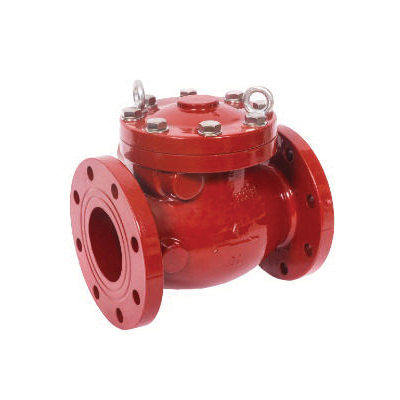

Matco-Norca™ 120W11 120W Swing Check Valve, 4 in Nominal, Flanged End Style, Buna-N Softgoods, Ductile Iron Body, Import
CBPN: 135611
UPC:082647002449
MPN:120W11
Price:
$897.99 / EA
Oversize or overweight
This item cannot ship via small package carrier, such as UPS or FedEx Ground. Delivery options will be available at checkout.
DESCRIPTION
Matco-Norca™ Swing Check Valve, Series: 120W, 4 in Nominal, Flanged End Style, 300 psi Pressure, No Low Lead Compliance, 11-1/2 in Inlet to Outlet Length, 6-7/8 in Top to Inlet Center, Ductile Iron Body, Ductile Iron Trim, Buna-N Softgoods, Epoxy Powder Coated, Import
Matco-Norca™ 120W11 120W Swing Check Valve, 4 in Nominal, Flanged End Style, Buna-N Softgoods, Ductile Iron Body, Import
CBPN: 135611
MPN:120W11
UPC:082647002449
Price:
$897.99 / EA
Oversize or overweight
This item cannot ship via small package carrier, such as UPS or FedEx Ground. Delivery options will be available at checkout.
DESCRIPTION
Matco-Norca™ Swing Check Valve, Series: 120W, 4 in Nominal, Flanged End Style, 300 psi Pressure, No Low Lead Compliance, 11-1/2 in Inlet to Outlet Length, 6-7/8 in Top to Inlet Center, Ductile Iron Body, Ductile Iron Trim, Buna-N Softgoods, Epoxy Powder Coated, Import
Specifications
Brand: Matco-Norca™
Weight: 74.97 lbs
Nominal Size: 4 in
End Style: ANSI 300 Flange
Low Lead Compliance: No
Softgoods Material: Buna-N
Body Material: Ductile Iron
Finish: Epoxy Powder Coated
Inlet to Outlet Length: 11-1/2 in
Manufacturer Name: Matco-Norca
Pressure Rating: 300 psi
Series: 120W
Top to Inlet Center: 6-7/8 in
Trim Material: Ductile Iron
Domestic/Import: Import
Country of Origin: CN
Standards and Approvals: ASTM A126 Class B Body | ASTM A 536 Grade 64-45-12 Disc | AWWA C550 / C508 | ANSI B16.1 Flanged End | MSS-SP-71
Item Features
- Cast iron body with one boss
- Resilient seat
- Fusion bonded epoxy coating
- Bolted cover
- For vertical or horizontal installation
- Ductile iron disc
- Buna-N O-ring
