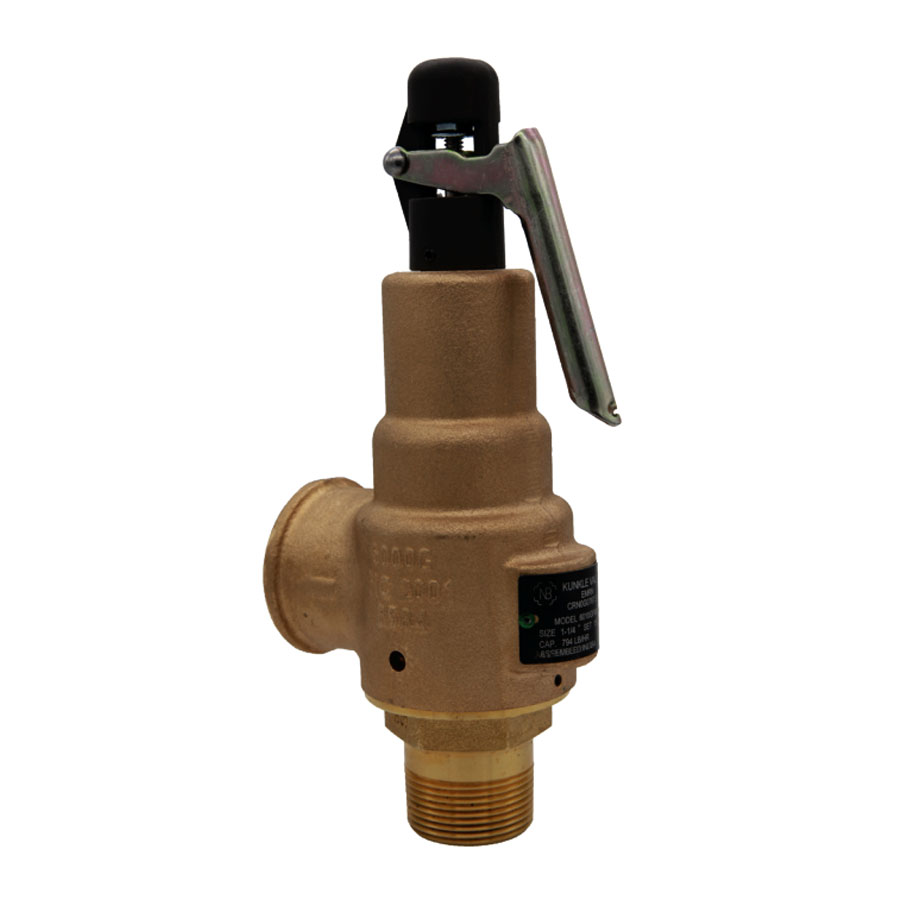

Kunkle 6021FE Bronze Safety Relief Valve, 1 in MNPT x 1-1/4 in FNPT Side Outlet, Teflon Disc, Steam ASME Section I, 200 psig Set Pressure, Kunkle 6021FET01-AM0200
CBPN:281274
MPN:6021FET01AAM0200
Price:
$341.55 / EA
DESCRIPTION
Kunkle 6021FET01AM0200, Kunkle 6021FE Bronze Safety Relief Valve, 1 in MNPT x 1-1/4 in FNPT Side Outlet, Teflon Disc, Steam ASME Section I, 200 psig Set Pressure
These valves are suitable for use on steam boilers and generators, reciprocating or rotary, portable or stationary air/gas compressors, intercoolers and aftercoolers. Also for pressure vessels containing steam, air or non-hazardous gas and on pressure reducing stations.
Kunkle 6021FE Bronze Safety Relief Valve, 1 in MNPT x 1-1/4 in FNPT Side Outlet, Teflon Disc, Steam ASME Section I, 200 psig Set Pressure, Kunkle 6021FET01-AM0200
CBPN:281274
MPN:6021FET01AAM0200
Price:
$341.55 / EA
DESCRIPTION
Kunkle 6021FET01AM0200, Kunkle 6021FE Bronze Safety Relief Valve, 1 in MNPT x 1-1/4 in FNPT Side Outlet, Teflon Disc, Steam ASME Section I, 200 psig Set Pressure
These valves are suitable for use on steam boilers and generators, reciprocating or rotary, portable or stationary air/gas compressors, intercoolers and aftercoolers. Also for pressure vessels containing steam, air or non-hazardous gas and on pressure reducing stations.
Specifications
Brand: Kunkle
Weight: 3.5 lbs
Nominal Size: 1 in x 1-1/4 in
End Style: MNPT x FNPT
Valve Service: Steam ASME Section I
Set Pressure: 200 psig
Body Material: Bronze
Trim Material: Teflon Disc
Actuator Type: Plain Lever
Inlet Size: 1 in MNPT
Manufacturer Name: Emerson Electric
Max Allowable Pressure: 250 psig
Max Allowable Temperature: 406 deg F
Orifice Size: F - .336
Outlet Size: 1-1/4 in FNPT
Seat: Teflon Disc
Series: 6021-FET, 6021FE
Spring: SS Spring
Type: Side Outlet
Application: Bronze safety valves to ASME Section I steam
Standards and Approvals: Steam ASME Section I
Item Features
- O-ring seats available for exceptional leak-free performance, reduced maintenance cost, multiple cycles with tight shutoff and improved seating integrity.
- Heavy duty casting.
- Wide hex on valve nozzle provides clearance for easy installation.
- Seats lapped to optical flatness.
- Dual control rings offer easy adjustability for precise opening with minimum pre-open or simmer and exact blowdown control.
- Pivot between disc and spring corrects misalignment and compensates for spring side thrust.
- Grooved piston type disc reduces sliding area and friction.
- Heavy duty lift lever assembly
- Each valve tested and inspected for pressure setting and leakage.
