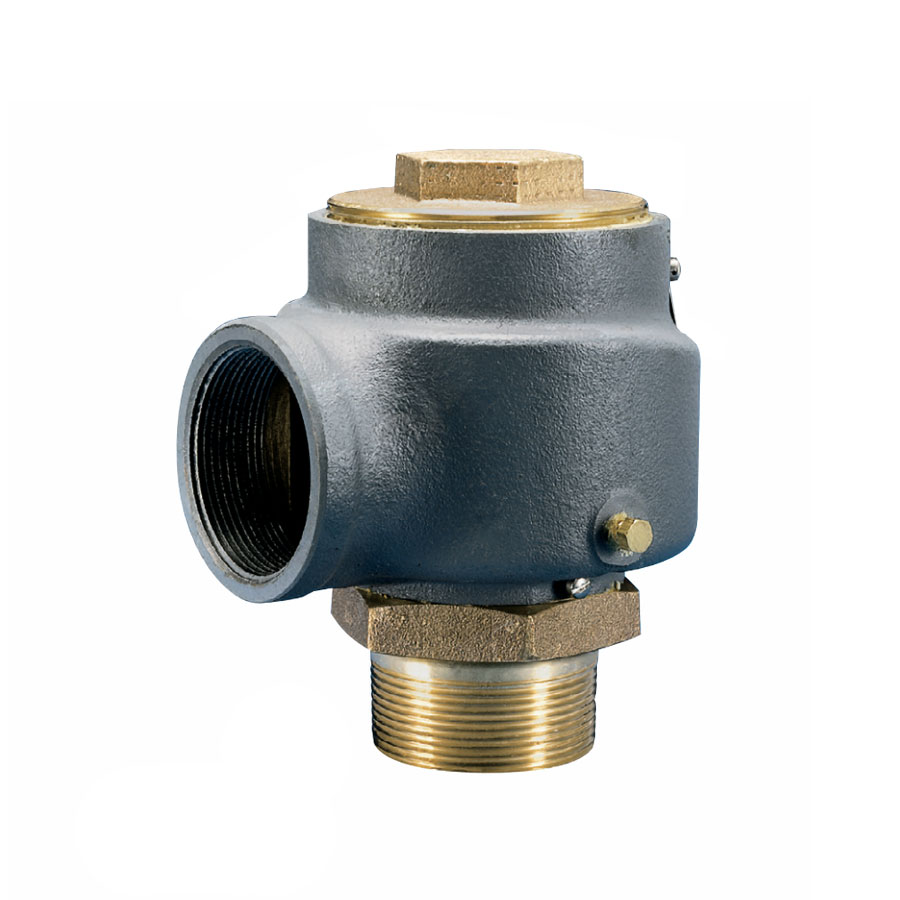

Kunkle 215V Cast Iron Vacuum Relief Valve, 2 in MNPT x 2 in FNPT Side Outlet, Bronze Disc & Nozzle, Vacuum Air Non-Code, 2 in Hg Set Pressure, Kunkle 215VH01-QE0002
CBPN: 281652
MPN:215V-H01AQE0002
Price:
$515.39 / EA
DESCRIPTION
Kunkle 215VH01QE0002, Kunkle 215V Cast Iron Vacuum Relief Valve, 2 in MNPT x 2 in FNPT Side Outlet, Bronze Disc & Nozzle, Vacuum Air Non-Code, 2 in Hg Set Pressure
Model 215V is suitable for the protection of high volume vacuum pumps, conveying systems and light gauge tanks.
Kunkle 215V Cast Iron Vacuum Relief Valve, 2 in MNPT x 2 in FNPT Side Outlet, Bronze Disc & Nozzle, Vacuum Air Non-Code, 2 in Hg Set Pressure, Kunkle 215VH01-QE0002
CBPN: 281652
MPN:215V-H01AQE0002
Price:
$515.39 / EA
DESCRIPTION
Kunkle 215VH01QE0002, Kunkle 215V Cast Iron Vacuum Relief Valve, 2 in MNPT x 2 in FNPT Side Outlet, Bronze Disc & Nozzle, Vacuum Air Non-Code, 2 in Hg Set Pressure
Model 215V is suitable for the protection of high volume vacuum pumps, conveying systems and light gauge tanks.
Specifications
Brand: Kunkle
Weight: 8 lbs
Nominal Size: 2 in x 2 in
End Style: MNPT x FNPT
Valve Service: Vacuum Air Non-Code
Set Pressure: 2" Hg
Body Material: Cast Iron
Trim Material: Bronze Disc & Nozzle
Inlet Size: 2 in MNPT
Manufacturer Name: Emerson Electric
Max Allowable Temperature: 406 deg F
Outlet Size: 2 in FNPT
Seat: Bronze Disc
Series: 215V
Spring: SS Spring
Type: Vacuum Relief
Application: Cast iron non-code vacuum relief and ASME Section VIII and Section XIII air/gas, ‘UV’, National Board certified safety valves, both PED certified for non-hazardous gas.
Standards and Approvals: Vacuum Air Non-Code
Item Features
- Large nozzle design provides high capacity.
- Flat bronze valve seats are lapped for optimum performance.
- Warn ring offers easy adjustability for precise opening with minimum pre-open or simmer.
- Pivot between disc and spring corrects misalignment and compensates for spring side thrust.
- Model 337 has "lift-pin" lift device for easy manual testing.
- Bronze nozzle and disc as standard. Optional SS trim available.
- Each valve tested and inspected for pressure setting and leakage.
