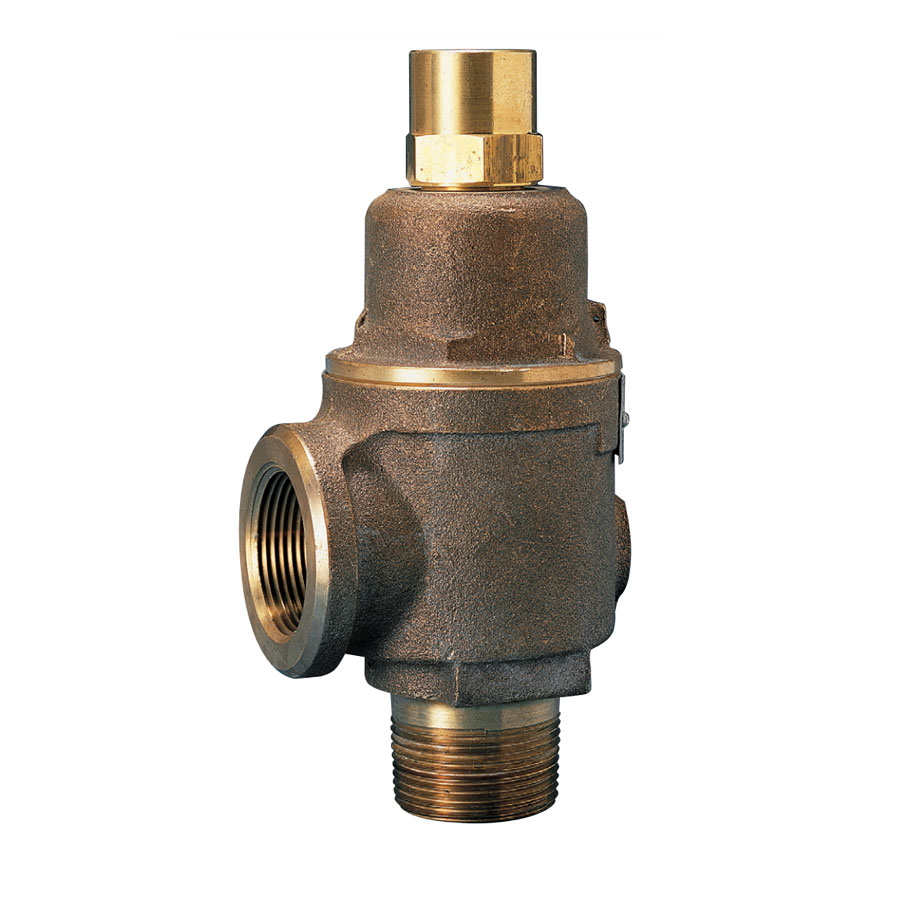

Kunkle 0020-D01 Bronze Safety Relief Valve, 3/4 in MNPT x 3/4 in FNPT Side Outlet, Bronze/Brass Seat, Liquid, Non-Code Service, 300 psig Set Pressure, Kunkle 0020D01-MG0300
CBPN:281548
MPN:0020-D01-MG0300
Price:
$259.71 / EA
DESCRIPTION
Kunkle 0020D01MG0300, Kunkle 0020-D01 Bronze Safety Relief Valve, 3/4 in MNPT x 3/4 in FNPT Side Outlet, Bronze/Brass Seat, Liquid, Non-Code Service, 300 psig Set Pressure
A range of valves suitable for overpressure relief and protection of pumps, tanks, lines and hydraulic systems; pressure regulation and continuous by-pass relief.
Kunkle 0020-D01 Bronze Safety Relief Valve, 3/4 in MNPT x 3/4 in FNPT Side Outlet, Bronze/Brass Seat, Liquid, Non-Code Service, 300 psig Set Pressure, Kunkle 0020D01-MG0300
CBPN:281548
MPN:0020-D01-MG0300
Price:
$259.71 / EA
DESCRIPTION
Kunkle 0020D01MG0300, Kunkle 0020-D01 Bronze Safety Relief Valve, 3/4 in MNPT x 3/4 in FNPT Side Outlet, Bronze/Brass Seat, Liquid, Non-Code Service, 300 psig Set Pressure
A range of valves suitable for overpressure relief and protection of pumps, tanks, lines and hydraulic systems; pressure regulation and continuous by-pass relief.
Specifications
Brand: Kunkle
Weight: 2.25 lbs
Nominal Size: 3/4 in x 3/4 in
End Style: MNPT x FNPT
Valve Service: Liquid, Non-Code
Set Pressure: 300 psig
Body Material: Bronze
Trim Material: Bronze/Brass Seat
Inlet Size: 3/4 in MNPT
Manufacturer Name: Emerson Electric
Max Allowable Pressure: 300 psig
Max Allowable Temperature: 406 deg F
Outlet Size: 3/4 in FNPT
Seat: Metal
Series: 0020-D01, 0020D01
Spring: 316 SS
Type: Side Outlet
Application: Extra-heavy rugged construction non-code bronze liquid relief valves with a variety of model options to meet specific applications.
Standards and Approvals: Liquid, Non-Code
Item Features
- Inlet and outlet connections cast integral without disconnecting piping.
- Available with optional female NPT inlet or flanged inlet and outlet connections.
- Beveled seats lapped for optimum performance.
- Stainless steel spring for optimum corrosion resistance.
- Spherical pivot between disc and spring corrects misalignment and compensates for spring side thrust.
- Each valve tested and inspected for pressure setting and leakage.
