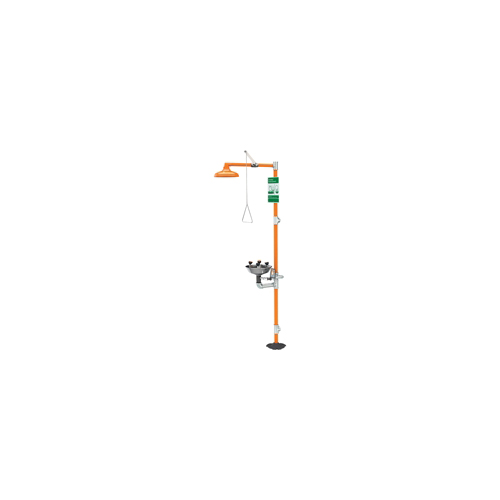

Guardian WideArea™ G1909 Combination Shower Eye/Face Wash Unit, Stainless Steel Eyewash Bowl, ABS Plastic Shower Head, Floor Mounting, Pull Rod Handle Operation, Specifications Met: ANSI Z358.1-2014, cUPC 8116
CBPN: 214394
UPC:013536113601
MPN:G1909
Price:
$1135.38 / EA
DESCRIPTION
Guardian WideArea™ Combination Shower Eye/Face Wash Unit, Galvanized Steel Pipe, Stainless Steel Eyewash Bowl, ABS Plastic Shower Head, 10 in Diameter Head, 11-1/8 in Diameter Bowl, 29 in Shower Handle Length, Stainless Steel Shower Handle, Floor Mounting, Specifications Met: ANSI Z358.1-2014, cUPC 8116, Orange, Galvanized Steel Fitting, Pull Rod Handle Operation
Combination WideArea™ eye face wash and shower safety station. Eye face wash features a stainless steel bowl with four GS-Plus™ spray-type outlet heads that deliver a flood of water over a wide area of coverage for complete rinsing of eyes and face.
Guardian WideArea™ G1909 Combination Shower Eye/Face Wash Unit, Stainless Steel Eyewash Bowl, ABS Plastic Shower Head, Floor Mounting, Pull Rod Handle Operation, Specifications Met: ANSI Z358.1-2014, cUPC 8116
CBPN: 214394
MPN:G1909
UPC:013536113601
Price:
$1135.38 / EA
DESCRIPTION
Guardian WideArea™ Combination Shower Eye/Face Wash Unit, Galvanized Steel Pipe, Stainless Steel Eyewash Bowl, ABS Plastic Shower Head, 10 in Diameter Head, 11-1/8 in Diameter Bowl, 29 in Shower Handle Length, Stainless Steel Shower Handle, Floor Mounting, Specifications Met: ANSI Z358.1-2014, cUPC 8116, Orange, Galvanized Steel Fitting, Pull Rod Handle Operation
Combination WideArea™ eye face wash and shower safety station. Eye face wash features a stainless steel bowl with four GS-Plus™ spray-type outlet heads that deliver a flood of water over a wide area of coverage for complete rinsing of eyes and face.
Specifications
Brand: Guardian
Weight: 30 lbs
Bowl Diameter: 11-1/8 in
Color: Orange
Eyewash Bowl Material: Stainless Steel
Fitting Material: Galvanized Steel
Head Diameter: 10 in
Manufacturer Name: Guardian Equipment
Mounting Type: Floor
Operation Type: Pull Rod Handle
Pipe Material: Galvanized Steel
Shower Handle Length: 29 in
Shower Handle Material: Stainless Steel
Shower Head Material: ABS Plastic
Specifications Met: ANSI Z358.1-2014, cUPC 8116
Includes: ANSI Compliant Identification Sign
Country of Origin: US
Standards and Approvals: ANSI Z358.1-2014 | cUPC Listed
Item Features
- Eye face wash features a stainless steel bowl with four GS-Plus™ spray-type outlet heads that deliver a flood of water over a wide area of coverage for complete rinsing of eyes and face
- Shower head - 10 in dia orange Abs plastic with 20 gpm flow control
- Shower valve - 1 in IPS chrome-plated brass stay open ball valve
- Valve is US-made with chrome-plated brass ball and PTFE seals
- Furnished with stainless steel actuating arm and 29 in stainless steel pull rod
- Spray head assembly - four GS-Plus™ spray heads
- Each head has a "flip top" dust cover, internal flow control and filter to remove impurities from the water flow
- Eye face wash valve - 1/2 in IPS chrome-plated brass stay open ball valve
- Pipe and fittings - schedule 40 galvanized steel
- Furnished with orange polyethylene pipe covers for high-visibility and corrosion resistance
- Supply 1-1/4 in NPT female top or side inlet
- Waste - 1-1/4 in NPT female outlet
- Outlet can be positioned at either 9-1/4 in or 19-5/8 in above finished floor by reversing lower pipe nipples
- Quality assurance - valve and spray head assemblies are factory assembled and water tested prior to shipment
