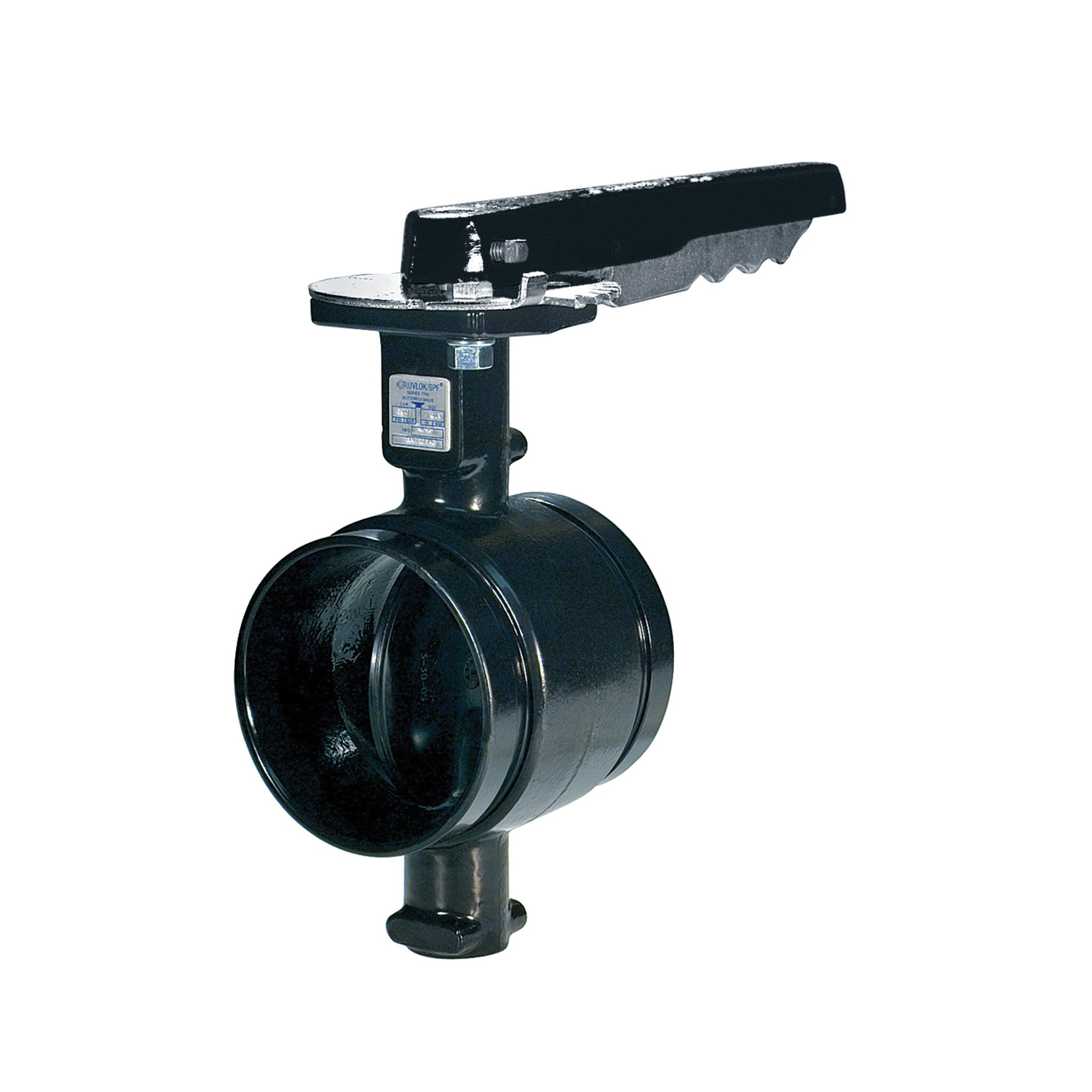

Gruvlok® 7005011775 FIG 7700 Butterfly Valve, 3 in Nominal, Grooved End Style, Ductile Iron Body, Domestic
CBPN:30921
UPC:690291828263
MPN:7005011775
Price:
$507.60 / EA
DESCRIPTION
Gruvlok® Butterfly Valve, Series: FIG 7700, 3 in Nominal, Grooved, -40 to 230 deg F, 10-Position Lever-Lock Handle Actuator, 3-13/16 in Inlet to Outlet Length, 6-1/4 in Top to Inlet Center, Ductile Iron Body, Ductile Iron Disc, 416 Stainless Steel (Stem) Stem and Pin, Nylon Coated, 3-1/2 in OD, Domestic
The uniqueness of the Series 7700 Gruvlok Butterfly Valve begins with the spherical bore of the disc seat area. This facilitates a constant DISC-TO-SEAT loading that maintains a leak tight stem seal regardless of disc position. The stem sealing force is constant through the full disc cycle and operating torques are kept low which increases valve life. The design provides a bubble tight seal from full vacuum to 300 psi when the valve is closed. The valve is rated for dead-end service to a full pressure rating of 300 psi. Silicone Free Series 7700 available upon special request. The stem-to-disc connection provides zero backlash. The high strength, corrosion resistant, stainless steel stems are blow-out proof. Each stem is fitted with a secondary seal that also provides a lifetime lubrication chamber. The Series 7700 valve is designed with the contractor in mind. The valve body is a rugged one-piece casting with an integral mounting base for gear operator or handle actuation, while providing room for a minimum of 2 in of pipe insulation. The valve is designed and manufactured to meet or exceed the requirements of MSS SP-67.
Gruvlok® 7005011775 FIG 7700 Butterfly Valve, 3 in Nominal, Grooved End Style, Ductile Iron Body, Domestic
CBPN:30921
MPN:7005011775
UPC:690291828263
Price:
$507.60 / EA
DESCRIPTION
Gruvlok® Butterfly Valve, Series: FIG 7700, 3 in Nominal, Grooved, -40 to 230 deg F, 10-Position Lever-Lock Handle Actuator, 3-13/16 in Inlet to Outlet Length, 6-1/4 in Top to Inlet Center, Ductile Iron Body, Ductile Iron Disc, 416 Stainless Steel (Stem) Stem and Pin, Nylon Coated, 3-1/2 in OD, Domestic
The uniqueness of the Series 7700 Gruvlok Butterfly Valve begins with the spherical bore of the disc seat area. This facilitates a constant DISC-TO-SEAT loading that maintains a leak tight stem seal regardless of disc position. The stem sealing force is constant through the full disc cycle and operating torques are kept low which increases valve life. The design provides a bubble tight seal from full vacuum to 300 psi when the valve is closed. The valve is rated for dead-end service to a full pressure rating of 300 psi. Silicone Free Series 7700 available upon special request. The stem-to-disc connection provides zero backlash. The high strength, corrosion resistant, stainless steel stems are blow-out proof. Each stem is fitted with a secondary seal that also provides a lifetime lubrication chamber. The Series 7700 valve is designed with the contractor in mind. The valve body is a rugged one-piece casting with an integral mounting base for gear operator or handle actuation, while providing room for a minimum of 2 in of pipe insulation. The valve is designed and manufactured to meet or exceed the requirements of MSS SP-67.
Specifications
Brand: Gruvlok®
Weight: 11lbs
Actuator Type: 10-Position Lever-Lock Handle
Body Material: Ductile Iron
End Style: Grooved
Nominal Size: 3 in
Series: FIG 7700
Temperature Rating: -40 to 230 deg F
Finish: Nylon Coated
Dimensions: 3-1/2 in OD
Disc Material: Ductile Iron
Inlet to Outlet Length: 3-13/16 in
Manufacturer Name: ASC Engineered Solutions
Stem & Pin Material: 416 Stainless Steel (Stem)
Top to Inlet Center: 6-1/4 in
Application: For used in commercial grooved-end piping systems 2 in through 12 in
Domestic/Import: Domestic
Country of Origin: US
Standards and Approvals: ASTM A 536 Grade 65-45-12 | cULus Listed | cUPC Listed | FM Approved | LPCB Certified | NSF/ANSI 61 (Cold Water) and Annex G
Item Features
- The stem-to-disc connection provides zero backlash.
- Ductile iron disc with grade E EPDM coating
- For operator safety, hand levers on 8 in valves are limited to applications with a 25 psi maximum pressure
