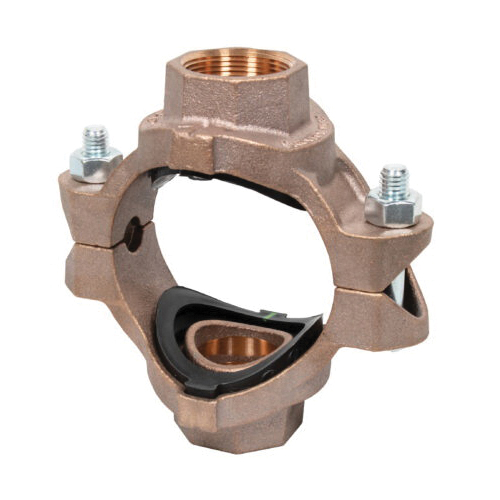

Gruvlok® Mechanical Cross, Series: FIG 6047, 4 x 1 in Nominal, FNPT Connection, 1-1/2 to 1-5/8 in Diameter Hole, 300 psi Pressure, -40 to 230 deg F, 1/2 x 3 in Bolt, Carbon Steel Bolt, Gasket, 7-1/4 in L x 3-5/8 in W Dimensions

The figure 6047 CTS mechanical cross provides for a cross connection in K, L or M copper tube. Gruvlok® CTS mechanical crosses have a NPT female pipe thread branch. CTS mechanical cross connections are available in sizes 2-1/2 x 3 /4 in through 4 x 1-1/2 in, allowing versatility in piping design. Gruvlok® CTS mechanical crosses provide a quick and easy outlet at any location along copper tube. A hole drilled or cut in the tube to receive the locating collar of the CTS mechanical cross is all that is required. The full, smooth outlet area provides for optimum flow characteristics. The CTS mechanical cross housing is specially engineered to fit to the tube OD and the CTS mechanical cross gasket provides a leak tight reliable seal in both positive pressure and vacuum conditions. The maximum working pressure for all sizes is 300 psi when assembled on K or L copper tube.
