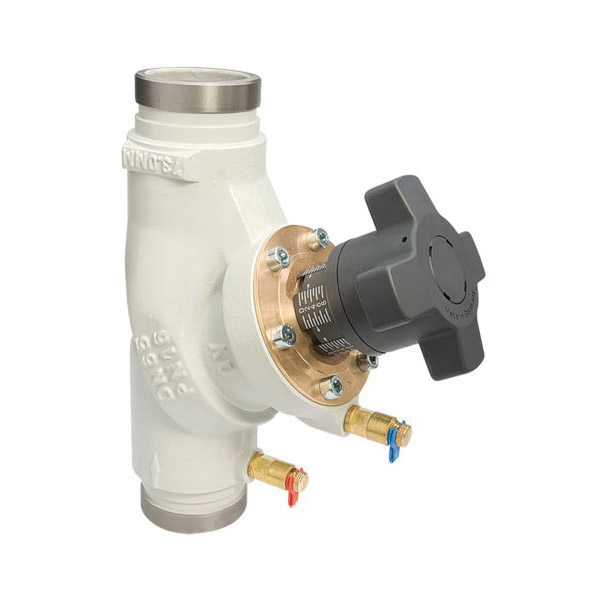

Gruvlok® 1330026420 FIG CB800 Circuit Balancing Valve, 5 in Nominal, Grooved End Style, 300 psi Working Pressure, 112 to 317 gpm Flow Rate, Cast Iron Body
CBPN: 296579
UPC:662428976376
MPN:1330026420
Price:
$4560.10 / EA
DESCRIPTION
Gruvlok® Circuit Balancing Valve, Series: FIG CB800, 5 in Nominal, Grooved End Style, 300 psi Working Pressure, 300 deg F, 112 to 317 gpm Flow Rate, Handwheel Actuator, Cast Iron Body, Dezincification Resistant Brass Trim, O-Ring Softgoods, Painted, White, 5.563 in OD x 15.75 in H Dimensions
The Model CB800 Balancing Valve provides features for achieving accurate and efficient balancing of hydronic heating or cooling systems. The Gruvlok® Groove-by-Groove Model CB800 Valve, available sizes 2-1/2 to 12 in (65 to 300 mm), is composed of cast iron.
Gruvlok® 1330026420 FIG CB800 Circuit Balancing Valve, 5 in Nominal, Grooved End Style, 300 psi Working Pressure, 112 to 317 gpm Flow Rate, Cast Iron Body
CBPN: 296579
MPN:1330026420
UPC:662428976376
Price:
$4560.10 / EA
DESCRIPTION
Gruvlok® Circuit Balancing Valve, Series: FIG CB800, 5 in Nominal, Grooved End Style, 300 psi Working Pressure, 300 deg F, 112 to 317 gpm Flow Rate, Handwheel Actuator, Cast Iron Body, Dezincification Resistant Brass Trim, O-Ring Softgoods, Painted, White, 5.563 in OD x 15.75 in H Dimensions
The Model CB800 Balancing Valve provides features for achieving accurate and efficient balancing of hydronic heating or cooling systems. The Gruvlok® Groove-by-Groove Model CB800 Valve, available sizes 2-1/2 to 12 in (65 to 300 mm), is composed of cast iron.
Specifications
Brand: Gruvlok®
Weight: 70 lbs
Nominal Size: 5 in
End Style: Grooved
Flow Rate: 112 to 317 gpm
Body Material: Cast Iron
Actuator Type: Handwheel
Color: White
Dimensions: 5.563 in OD x 15.75 in H
Finish: Rust Inhibiting Orange Painted
Manufacturer Name: ASC Engineered Solutions
Pressure Rating: 300 psi Working
Series: FIG CB800
Softgoods Material: EPDM O-Ring
Temperature Rating: 300 deg F
Trim Material: Dezincification Resistant Brass
Includes: Dezincification Resistant Brass Stem, Bronze Valve Disc, EPDM O-Ring and Thermoplastic Hand Wheel
Country of Origin: US
Item Features
- The Model CB800 Balancing Valve provides features for achieving accurate and efficient balancing of hydronic heating or cooling systems.
- The CB800 valve serves 5 functions throttling, measuring differential pressure, draining, filling, positive shutoff
