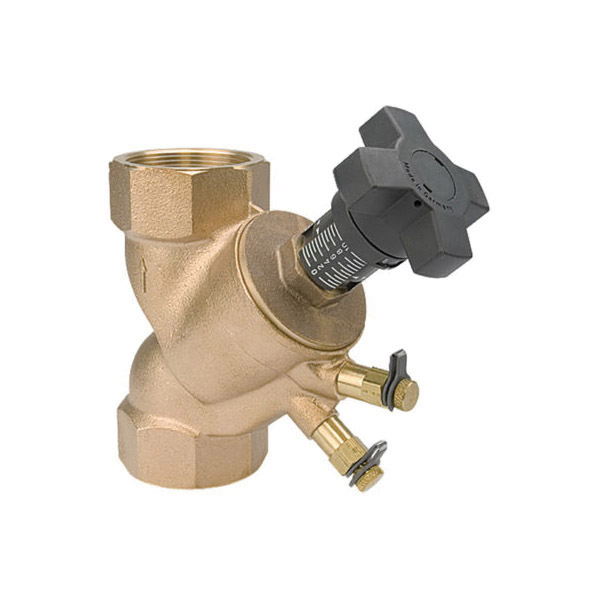

Gruvlok® 1330026340 FIG CB800 Circuit Balancing Valve, 3/4 in Nominal, FNPT End Style, 235 psi Pressure, 3.4 to 6.2 gpm Flow Rate, DZR Brass Body
CBPN: 296566
UPC:662428976215
MPN:1330026340
DESCRIPTION
Gruvlok® Circuit Balancing Valve, Series: FIG CB800, 3/4 in Nominal, Thread End Style, 235 psi Pressure, 3.4 to 6.2 gpm Flow Rate, Handwheel Actuator, DZR Brass Body, Dezincification Resistant Brass Trim, O-Ring Softgoods, 1.05 in OD x 3.31 in L Dimensions
The Model CB800 Balancing Valve provides features for achieving accurate and efficient balancing of hydronic heating or cooling systems. One valve serves five functions throttling, measuring (pressure and temperature), positive shutoff, draining, and filling. The Gruvlok® Flange-by-Flange Model CB800 Valve, available in sizes 2-1/2 to 12 in (65 to 300 mm), is composed of cast iron.
Gruvlok® 1330026340 FIG CB800 Circuit Balancing Valve, 3/4 in Nominal, FNPT End Style, 235 psi Pressure, 3.4 to 6.2 gpm Flow Rate, DZR Brass Body
CBPN: 296566
MPN:1330026340
UPC:662428976215
DESCRIPTION
Gruvlok® Circuit Balancing Valve, Series: FIG CB800, 3/4 in Nominal, Thread End Style, 235 psi Pressure, 3.4 to 6.2 gpm Flow Rate, Handwheel Actuator, DZR Brass Body, Dezincification Resistant Brass Trim, O-Ring Softgoods, 1.05 in OD x 3.31 in L Dimensions
The Model CB800 Balancing Valve provides features for achieving accurate and efficient balancing of hydronic heating or cooling systems. One valve serves five functions throttling, measuring (pressure and temperature), positive shutoff, draining, and filling. The Gruvlok® Flange-by-Flange Model CB800 Valve, available in sizes 2-1/2 to 12 in (65 to 300 mm), is composed of cast iron.
Specifications
Item Features
- The Y-Pattern style provides low pressure drop
- The CB800 valve serves 5 functions throttling, measuring differential pressure, draining, filling, positive shutoff
