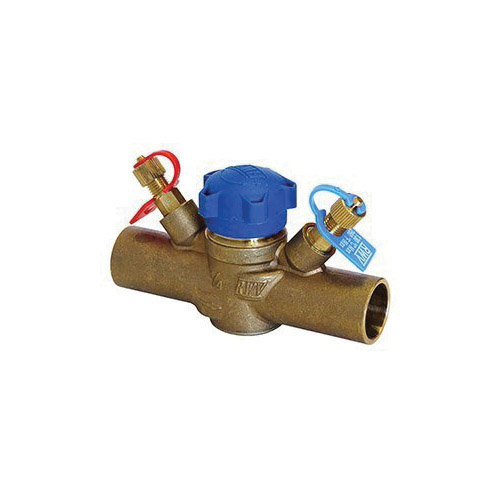

Gruvlok® 0763101342 FIG CSV-9529AB On/Off Terminal Balancing Valve, 3/4 in Nominal, Solder End Style, 300 psi Working Pressure, 2.19 to 5.15 gpm Flow Rate, Brass Body, Import
CBPN: 296487
UPC:662428520883
MPN:0763101342
Price:
$126.79 / EA
DESCRIPTION
Gruvlok® On/Off Terminal Balancing Valve, Lead Free, Series: FIG CSV-9529AB, 3/4 in Nominal, Solder Joint, 300 psi Working, 300 lb WOG, 160 deg F, 2.19 to 5.15 gpm, Brass Body, Stainless Steel Trim, Perox, 4.1 in L, Import
Low lead brass ON/OFF terminal balancing valve for HVAC and domestic water use. Threaded F/F (ASME B1.20.1-NPT) or solder joint ends (ASME B16.22). Tolerance on nominal Cv for fully open valve + 10% (test according to BS7350). 300 WOG (Maximum 300 psi up to 160 deg F. Maximum 150 psi at 260 deg F).
Gruvlok® 0763101342 FIG CSV-9529AB On/Off Terminal Balancing Valve, 3/4 in Nominal, Solder End Style, 300 psi Working Pressure, 2.19 to 5.15 gpm Flow Rate, Brass Body, Import
CBPN: 296487
MPN:0763101342
UPC:662428520883
Price:
$126.79 / EA
DESCRIPTION
Gruvlok® On/Off Terminal Balancing Valve, Lead Free, Series: FIG CSV-9529AB, 3/4 in Nominal, Solder Joint, 300 psi Working, 300 lb WOG, 160 deg F, 2.19 to 5.15 gpm, Brass Body, Stainless Steel Trim, Perox, 4.1 in L, Import
Low lead brass ON/OFF terminal balancing valve for HVAC and domestic water use. Threaded F/F (ASME B1.20.1-NPT) or solder joint ends (ASME B16.22). Tolerance on nominal Cv for fully open valve + 10% (test according to BS7350). 300 WOG (Maximum 300 psi up to 160 deg F. Maximum 150 psi at 260 deg F).
Specifications
Brand: Gruvlok®
Weight: 0.99 lbs
Nominal Size: 3/4 in
End Style: Solder
Pressure Class: 300 lb WOG
Flow Rate: 2.19 to 5.15 gpm
Body Material: Brass
Dimensions: 4.1 in L
Manufacturer Name: ASC Engineered Solutions
Pressure Rating: 300 psi Working
Series: FIG CSV-9529AB
Softgoods Material: EPDM Perox
Temperature Rating: 160 deg F
Trim Material: Stainless Steel
Includes: EPDM Perox Disc Gasket/Stem O-Ring/Bonnet O-Ring/Balancing Stem O-Ring, CW510L Gasket Washer/Balance Disc/Plug/Balancing Stem/Bonnet, Brass Spring Cartridge, Stainless Steel Spring/Disc/Stop Ring, Brass Washer, Blue Polypropylene Graduated Scale, Orange Polyamide Indicator, Blue Polyamide On/Off Cap and DZR Brass Test Point or Plug
Domestic/Import: Import
Country of Origin: IT
Standards and Approvals: ASME B16.22 | CW510L Plug/Gasket Washer/Balance Disc/Balance Stem/Bonnet
Item Features
- Fixed orifice DZR brass double regulating valve. Intended for HVAC use.
