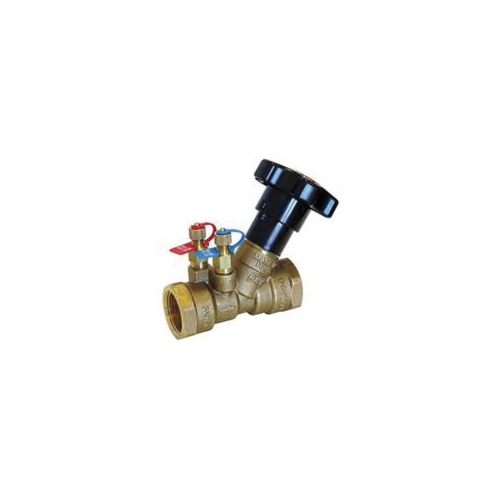

Gruvlok® 0763100021 FIG MBV-T-9517 Fixed Orifice Double Regulating Valve, 3/4 in Nominal, FNPT End Style, 300 psi Pressure, Brass Body, Import
CBPN: 241633
UPC:662428521859
MPN:0763100021
Price:
$145.17 / EA
DESCRIPTION
Gruvlok® Double Regulating Valve, Fixed Orifice, Series: FIG MBV-9517, 3/4 in Nominal, NPT End Style, 300 psi Pressure, Media: Water, Handwheel Actuator, Brass Body, Brass Stem Trim, PTFE Softgoods, Import
Fixed orifice DZR brass double regulating valve. Intended for HVAC use. Threaded F/F (ASME B1.20.1 - NPT) or solder joint ends (ASME B16.22). Design according to BS7350. Tolerance on nominal Cvs +3 percentage (test according to BS7350). 300 WOG (Maximum 300 psi up to 160 deg F Maximum 150 psi at 260 deg F).
Gruvlok® 0763100021 FIG MBV-T-9517 Fixed Orifice Double Regulating Valve, 3/4 in Nominal, FNPT End Style, 300 psi Pressure, Brass Body, Import
CBPN: 241633
MPN:0763100021
UPC:662428521859
Price:
$145.17 / EA
DESCRIPTION
Gruvlok® Double Regulating Valve, Fixed Orifice, Series: FIG MBV-9517, 3/4 in Nominal, NPT End Style, 300 psi Pressure, Media: Water, Handwheel Actuator, Brass Body, Brass Stem Trim, PTFE Softgoods, Import
Fixed orifice DZR brass double regulating valve. Intended for HVAC use. Threaded F/F (ASME B1.20.1 - NPT) or solder joint ends (ASME B16.22). Design according to BS7350. Tolerance on nominal Cvs +3 percentage (test according to BS7350). 300 WOG (Maximum 300 psi up to 160 deg F Maximum 150 psi at 260 deg F).
Specifications
Brand: Gruvlok®
Weight: 1.43 lbs
Nominal Size: 3/4 in
End Style: FNPT
Body Material: Brass
Actuator Type: Handwheel
Manufacturer Name: ASC Engineered Solutions
Media: Water
Pressure Rating: 300 psi
Series: FIG MBV-9517
Softgoods Material: PTFE
Trim Material: Brass Stem
Type: Fixed Orifice
Application: For HVAC Use
Domestic/Import: Import
Country of Origin: IT
Standards and Approvals: ASME B1.20.1
Item Features
- Threaded F/F (ASME B1.20.1 - NPT) or solder joint ends (ASME B16.22). Design according to BS7350. T
- PTFE gasket
