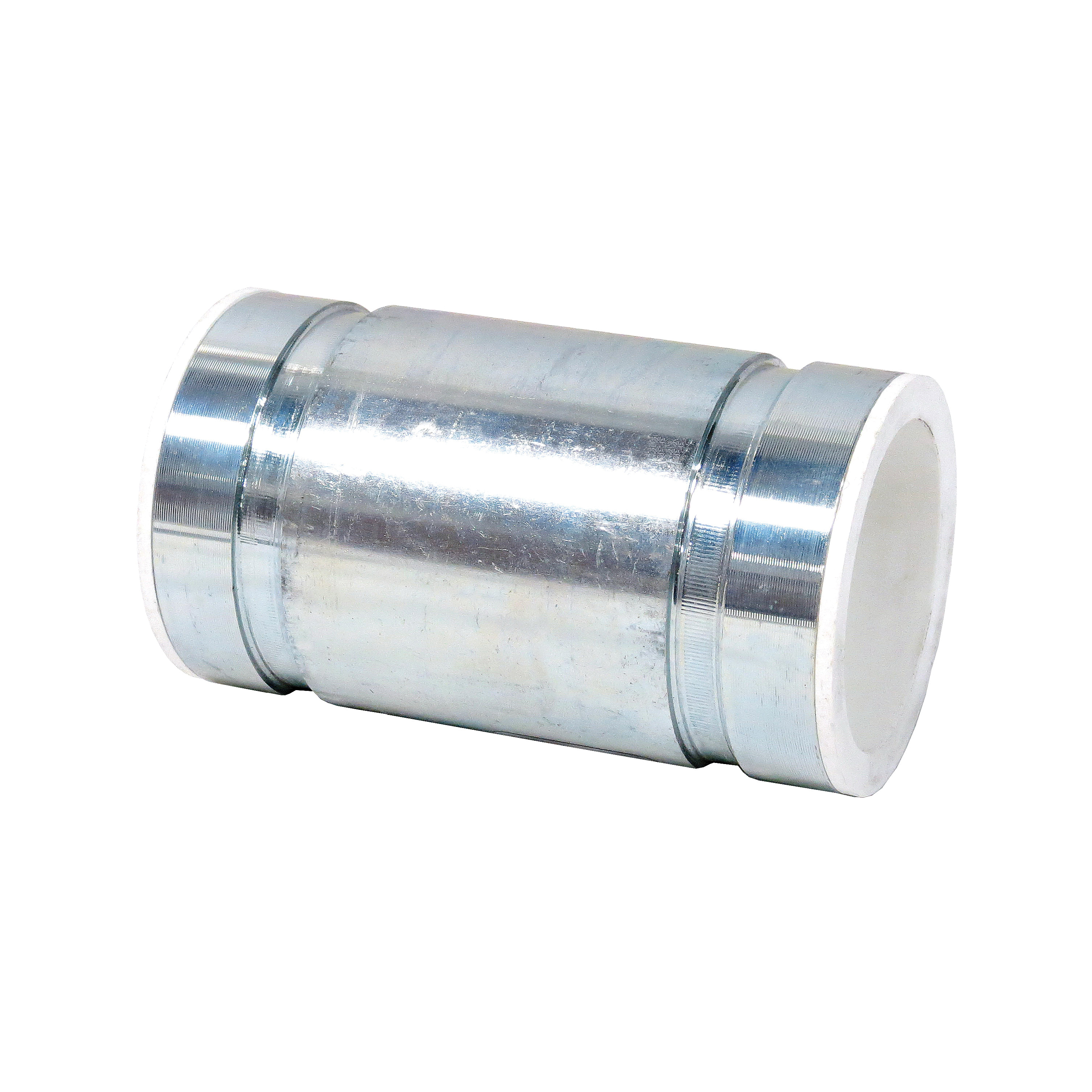

Gruvlok® 0390216059 FIG 7089 Dielectric Nipple, 2-1/2 in Nominal, Grooved End Style, 6 in L, Steel, Zinc Plated, Domestic
CBPN:225266
UPC:690291443244
MPN:0390216059
Price:
$203.81 / EA
DESCRIPTION
Gruvlok® Dielectric Nipple, Series: FIG 7089, 2-1/2 in Nominal, Grooved, 6 in Length, 300 psi, -40 to 230 deg F, Steel, Zinc Plated, Domestic
The FIG 7089 di-electric nipple inhibits the formation of galvanic corrosion between dissimilar piping metals. The di-electric nipples offer a variety of connections from thread to thread, thread to groove, or groove-to-groove all for IPS pipe sizes. The di-electric fittings are designed to meet ASTM F 492 for continuous use at temperatures from -40 to 230 deg F (-40 to 110 deg C) and pressures up to 300 psi (20.7 bar). The di-electric pipe connections will achieve a dielectric waterway in potable water and appropriate HVAC applications.
Gruvlok® 0390216059 FIG 7089 Dielectric Nipple, 2-1/2 in Nominal, Grooved End Style, 6 in L, Steel, Zinc Plated, Domestic
CBPN:225266
MPN:0390216059
UPC:690291443244
Price:
$203.81 / EA
DESCRIPTION
Gruvlok® Dielectric Nipple, Series: FIG 7089, 2-1/2 in Nominal, Grooved, 6 in Length, 300 psi, -40 to 230 deg F, Steel, Zinc Plated, Domestic
The FIG 7089 di-electric nipple inhibits the formation of galvanic corrosion between dissimilar piping metals. The di-electric nipples offer a variety of connections from thread to thread, thread to groove, or groove-to-groove all for IPS pipe sizes. The di-electric fittings are designed to meet ASTM F 492 for continuous use at temperatures from -40 to 230 deg F (-40 to 110 deg C) and pressures up to 300 psi (20.7 bar). The di-electric pipe connections will achieve a dielectric waterway in potable water and appropriate HVAC applications.
Specifications
Brand: Gruvlok®
Weight: 3.1lbs
End Style: Grooved
Length: 6 in
Material: Steel
Nominal Size: 2-1/2 in
Series: FIG 7089
Temperature Rating: -40 to 230 deg F
Finish: Zinc Plated
Pressure Rating: 300 psi
Manufacturer Name: ASC Engineered Solutions
Application: Potable Water and Appropriate HVAC
Domestic/Import: Domestic
Country of Origin: US
Standards and Approvals: ASTM A 513 Housing | ASTM F 492
Item Features
- Grooved pipe couplings and fittings are used to join pipes in both wet and dry systems.
