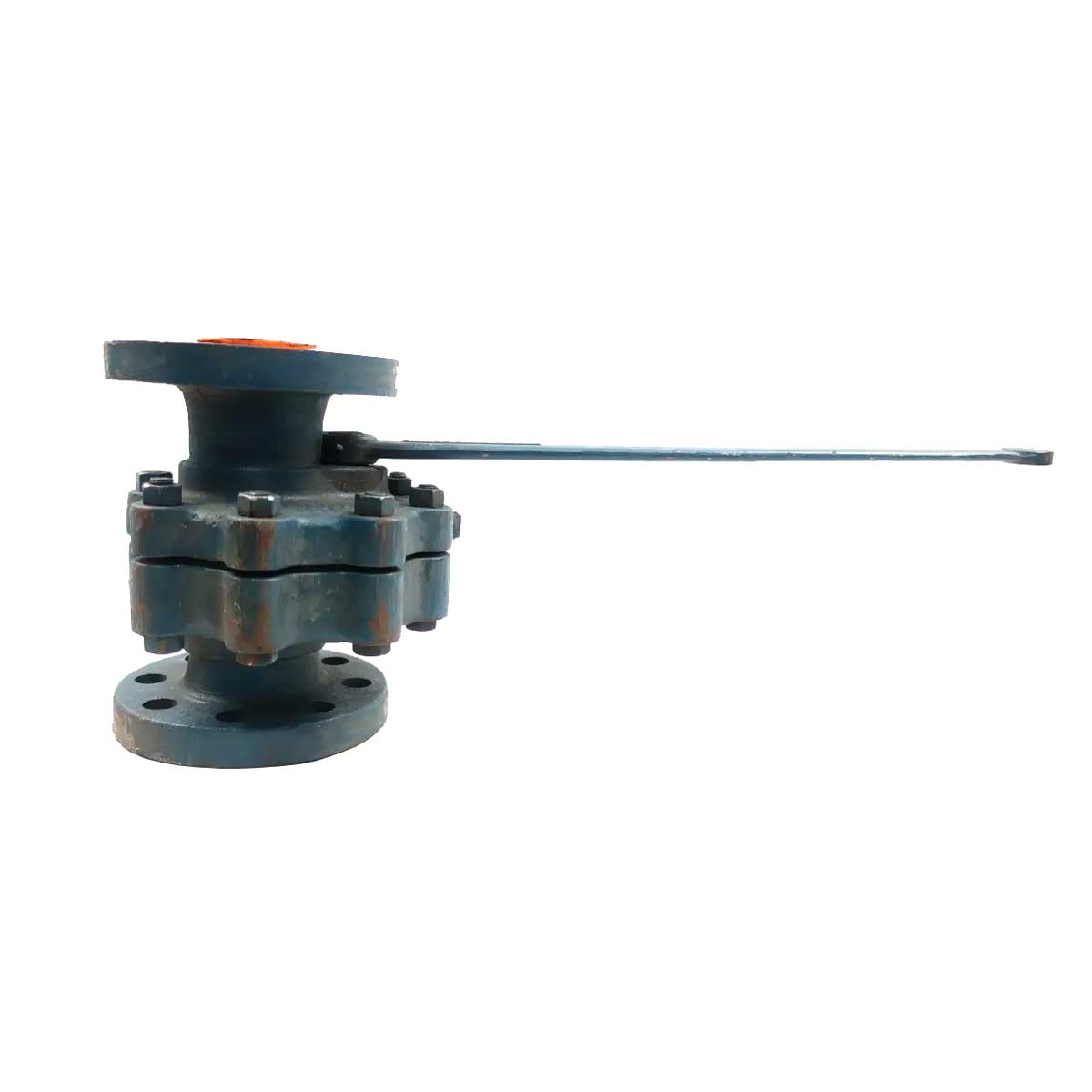

Everlasting Boiler Blowdown Valve, 1-1/2 in, Flanged, 250 LB Class, Quick Opening, Series 4001-A, Cast Iron Body, Lever Actuator
CBPN:63409
MPN:4001-A 1-1/2
Price:
$1083.00 / EA
DESCRIPTION
Everlasting Boiler Blowdown Valve, 1-1/2 in, Flanged, 250 LB Class, Quick Opening, Series 4001-A, Cast Iron Body, Lever Actuator
Line pressure and heavy spring hold disc firmly against the body seat, sealing off the flow. When the Everlasting Quick Opening Blow Down Valve operates, the disc slides across the body seat pushing harmful boiler scale away, and wiping clean the precision lapped surface. Hand adjustment of the post packing is eliminated. Post packing is self-adjusted by a spring and line pressure. This prevents destructive erosion and leakage of stuffing box.
Everlasting Boiler Blowdown Valve, 1-1/2 in, Flanged, 250 LB Class, Quick Opening, Series 4001-A, Cast Iron Body, Lever Actuator
CBPN:63409
MPN:4001-A 1-1/2
Price:
$1083.00 / EA
DESCRIPTION
Everlasting Boiler Blowdown Valve, 1-1/2 in, Flanged, 250 LB Class, Quick Opening, Series 4001-A, Cast Iron Body, Lever Actuator
Line pressure and heavy spring hold disc firmly against the body seat, sealing off the flow. When the Everlasting Quick Opening Blow Down Valve operates, the disc slides across the body seat pushing harmful boiler scale away, and wiping clean the precision lapped surface. Hand adjustment of the post packing is eliminated. Post packing is self-adjusted by a spring and line pressure. This prevents destructive erosion and leakage of stuffing box.
Specifications
Brand: Everlasting Valve
Weight: 34lbs
Actuator Type: Lever
Body Material: Cast Iron
End Style: Flanged
Nominal Size: 1-1/2 in
Series: 4001-A
Type: Quick Opening
Media: Water
Pressure Class: 250 lb
Manufacturer Name: Everlasting Valve Company
Domestic/Import: Domestic
Standards and Approvals: ASME Section I, ANSI B31.1, ANSI B16.1, ANSI B16.5, ANSI B16.41
Item Features
- Straight-through flow
- Leak proof seal disc has self-lapping action, actually improves with use
- Self-wiping action of disc - cannot hang up on boiler scale
