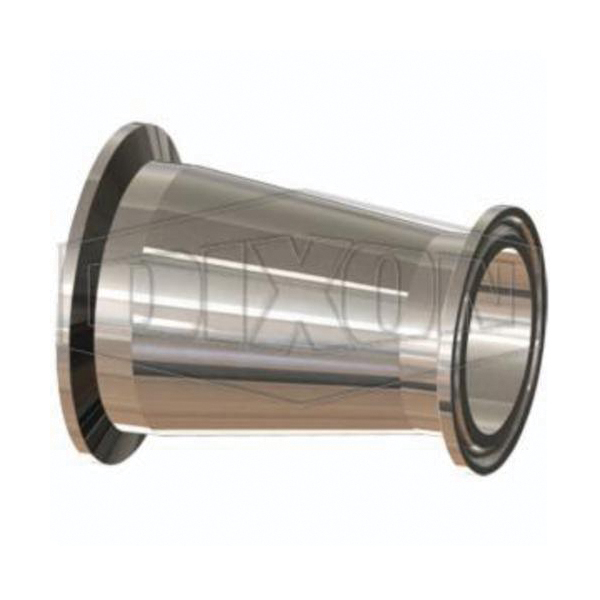

Dixon® T3114MP100075PM BioPharm Concentric Reducer, 1 x 3/4 in, Clamp, 316L Stainless Steel, Domestic
CBPN: 171168
MPN:T3114MP100075PM
Price:
$104.87 / EA
DESCRIPTION
Dixon® Concentric Reducer, Series: BioPharm, Fitting/Connector Type: Reducer, 1 x 3/4 in Nominal Size, Clamp, 316L Stainless Steel, PM Finish - SF4, 2 in L, Domestic
Specifications
Brand: Dixon®
Weight: 0.22 lbs
Fitting/Connector Type: Reducer
Nominal Size: 1 x 3/4 in
End Style: Clamp
Material: 316L Stainless Steel
Dimensions: 2 in L
Finish: PM Finish - SF4
Manufacturer Name: Dixon Valve & Coupling
Series: BioPharm
Application: High purity biopharm fittings are commonly used in pharmaceutical, bioprocessing, semiconductor, cosmetics, food processing and beverage markets
Warranty: Limited
Domestic/Import: Domestic
Country of Origin: US
Standards and Approvals: 3-A Sanitary Standards for Sanitary Fittings | No. 63-03 (Authorization No. 621)
Item Features
- All fittings are manufactured to meet the latest edition of the ASME BPE international standard, bioprocessing equipment
- 316L stainless steel material and dimensions meet all orbital welding specifications with controlled sulphur
- Product markings per ASME BPE 2012 DT-10.1
- Product markings include: job number, 316L, part number, heat number(s), surface finish code, ASME BPE
- Per the specification, the size of the fitting may limit the space available for markings, when that occurs, not all markings are included
- The part number will describe the part configuration and size
