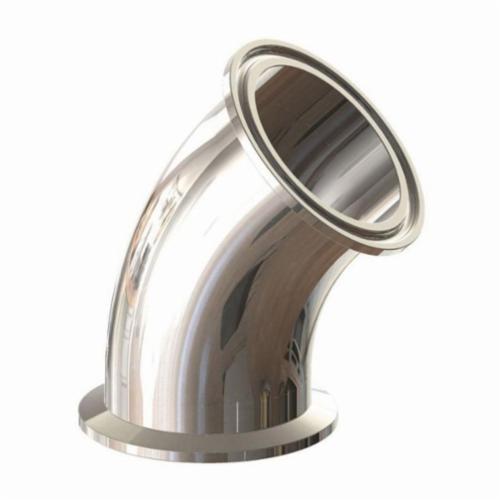

Dixon® Bradford T2KMP-400PM T2KMP BioPharm Line High Purity Pipe Elbow, 4 in Nominal, Clamp End Style, 316L Stainless Steel, 3A Certified
CBPN: 223925
UPC:697464142195
MPN:T2KMP-400PM
Price:
$375.13 / EA
DESCRIPTION
Dixon® Bradford Pipe Elbow, High Purity, Series: T2KMP BioPharm Line, Fitting/Connector Type: 45 deg Elbow, 4 in Nominal, Clamp, 316L Stainless Steel, PM Finish - SF4, 3-1/8 in W x 3-1/8 in H
Dixon® Bradford T2KMP-400PM T2KMP BioPharm Line High Purity Pipe Elbow, 4 in Nominal, Clamp End Style, 316L Stainless Steel, 3A Certified
CBPN: 223925
MPN:T2KMP-400PM
UPC:697464142195
Price:
$375.13 / EA
DESCRIPTION
Dixon® Bradford Pipe Elbow, High Purity, Series: T2KMP BioPharm Line, Fitting/Connector Type: 45 deg Elbow, 4 in Nominal, Clamp, 316L Stainless Steel, PM Finish - SF4, 3-1/8 in W x 3-1/8 in H
Specifications
Brand: Dixon®
Weight: 2.05 lbs
Fitting/Connector Type: 45 deg Elbow
Type: High Purity
Nominal Size: 4 in
End Style: Clamp
Material: 316L Stainless Steel
Dimensions: 3-1/8 in W x 3-1/8 in H
Finish: PM Finish - SF4
Manufacturer Name: Dixon Valve & Coupling
Series: T2KMP BioPharm Line
Application: Pharmaceutical, Bioprocessing, Semiconductor, Cosmetics, Food Processing and Beverage Markets
Standards and Approvals: 3A Compliant | ASME BPE 2012 DT-10.1
Item Features
- 316L stainless steel material and dimensions meet all orbital welding specifications with controlled sulphur
- PM finish OD is 32Ra mechanically polished and ID is 15Ra mechanically polished and electro polished
- PM finish has white cap for easy identification
