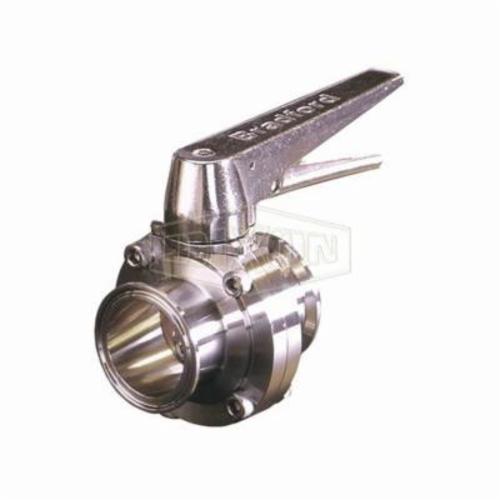

Dixon Sanitary B5101E100CC-C Butterfly Valve, 1 in Nominal, Clamp End End Style, 316L Stainless Steel Body
CBPN:134303
MPN:B5101E100CC-C
Price:
$197.88 / EA
Prop 65:
DESCRIPTION
Dixon Sanitary Butterfly Valve, Series: B5101, 1 in Nominal, Clamp End, 15 to 200 deg F, Trigger Handle Actuator, 3-1/2 in Inlet to Outlet Length, 3 in Top to Inlet Center, 316L Stainless Steel Body, 316L Stainless Steel Disc, 304 Stainless Steel (Pin) Stem & Pin Material, 3.1 in D
Dixon Sanitary B5101E100CC-C Butterfly Valve, 1 in Nominal, Clamp End End Style, 316L Stainless Steel Body
CBPN:134303
MPN:B5101E100CC-C
Price:
$197.88 / EA
Prop 65:
DESCRIPTION
Dixon Sanitary Butterfly Valve, Series: B5101, 1 in Nominal, Clamp End, 15 to 200 deg F, Trigger Handle Actuator, 3-1/2 in Inlet to Outlet Length, 3 in Top to Inlet Center, 316L Stainless Steel Body, 316L Stainless Steel Disc, 304 Stainless Steel (Pin) Stem & Pin Material, 3.1 in D
Specifications
Brand: Dixon Sanitary
Weight: 0.55lbs
Actuator Type: Trigger Handle
Body Material: 316L Stainless Steel
End Style: Clamp End
Nominal Size: 1 in
Series: B5101
Temperature Rating: 15 to 200 deg F
Dimensions: 3.1 in D
Disc Material: 316L Stainless Steel
Inlet to Outlet Length: 3-1/2 in
Manufacturer Name: Dixon Sanitary
Stem & Pin Material: 304 Stainless Steel (Pin)
Top to Inlet Center: 3 in
Warranty: Limited
Standards and Approvals: PROP65: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
Item Features
- 100% hydraulic tested/100% inspected
- Field serviceable (no special tools required)
- All wetted surfaces are sanitary finished to < 32Ra
- 75 in-lb break torque
- Lockout tagout handle
- Pressure rating (psi), flow co-efficient (Cv) and break torque (in-lbs) information supplied is based on water media at 68 deg F/ 20 deg C
- Handle is not assembled when shipped
