Dixon PTFE Clamp Gasket
Dixon PTFE Clamp Gasket
Dixon Clamp Gasket Drawing

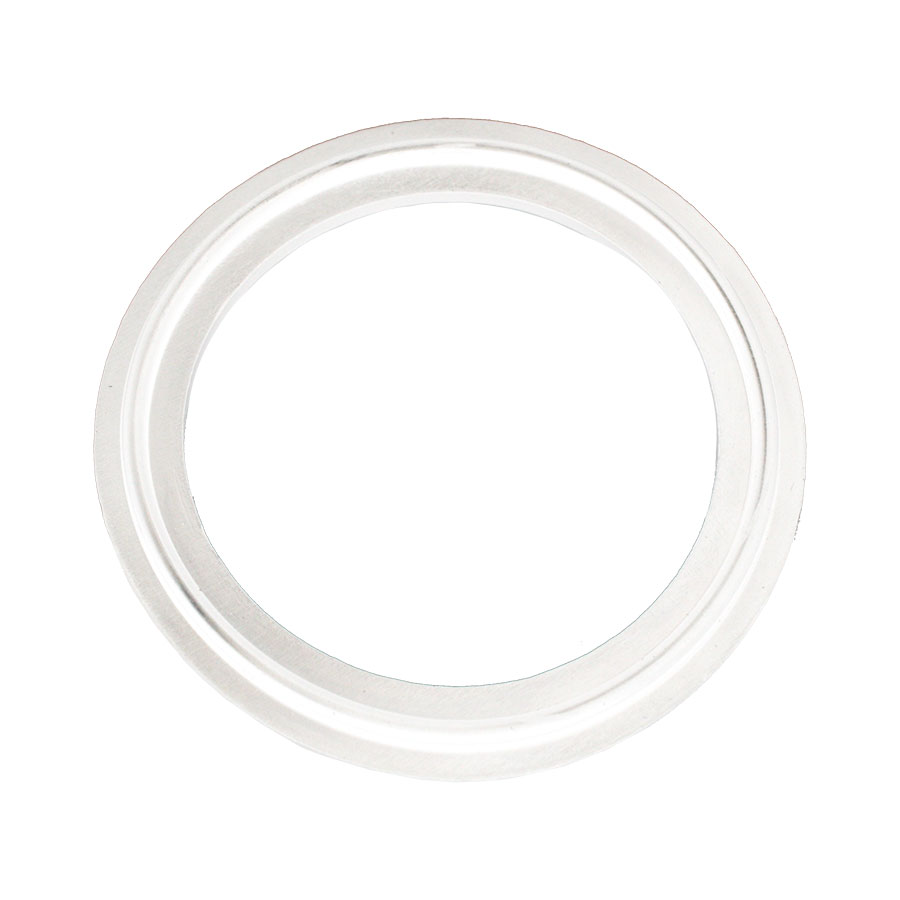

Dixon Sanitary 40MP-G150 Standard Clamp Gasket, 1-1/2 in Nominal, 1-25/64 in ID x 1-31/32 in OD x 13/64 in THK, PTFE, Domestic

CBPN:92522

MPN:40MP-G150

Price:
$1.02 / EA
in stock: 15
Prop 65:

Dixon Sanitary Clamp Gasket, Standard, Series: 40MP, 1-1/2 in Nominal, 1-25/64 in Inside Dia, 1-31/32 in Outside Dia, 13/64 in Thickness, -10 to 300 deg F, PTFE, White, Domestic

Dixon Sanitary 40MP-G150 Standard Clamp Gasket, 1-1/2 in Nominal, 1-25/64 in ID x 1-31/32 in OD x 13/64 in THK, PTFE, Domestic

CBPN:92522

MPN:40MP-G150

Price:
$1.02 / EA
in stock: 15

Prop 65:
Dixon Sanitary Logo

Dixon Sanitary Clamp Gasket, Standard, Series: 40MP, 1-1/2 in Nominal, 1-25/64 in Inside Dia, 1-31/32 in Outside Dia, 13/64 in Thickness, -10 to 300 deg F, PTFE, White, Domestic

Specifications

BrandDixon Sanitary
ColorWhite
Domestic/ImportDomestic
Inside Diameter1-25/64 in
MaterialPTFE
Nominal Size1-1/2 in
Outside Diameter1-31/32 in
Series40MP
Temperature Rating-10 to 300 deg F
Thickness13/64 in
TypeStandard

Item Features

  • Not recommended for use with bolted clamps
  • Color code - no dot
  • PTFE is a material subject to plastic flow
  • When cycled through heat and then cooled down in process lines, PTFE gaskets will not return to the original configuration and it will continue to compress as the cycling continues
  • This plastic flow will allow leakage if clamp torques are not maintained
