Dixon® PPF200

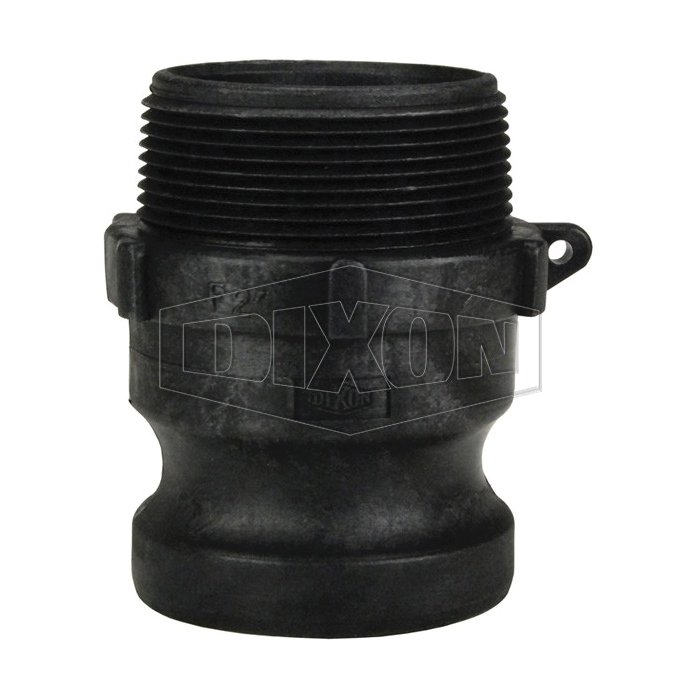

Dixon® PPF200 Type F Cam and Groove Adapter, 2 in, Male Adapter x MNPT, Polypropylene

CBPN:17315

UPC:089109612444

MPN:PPF200

Price:
$4.00 / EA
in stock: 10

Dixon® Cam and Groove Adapter, Type F, Fitting/Connector Type: Adapter, 2 in Nominal Size, Male Adapter x MNPT, 2-3/8 in Length, 100 psi, Polypropylene, 2-13/16 in Dia

Dixon® PPF200 Type F Cam and Groove Adapter, 2 in, Male Adapter x MNPT, Polypropylene

CBPN:17315

MPN:PPF200

UPC:089109612444

Price:
$4.00 / EA
in stock: 10

Dixon Logo

Dixon® Cam and Groove Adapter, Type F, Fitting/Connector Type: Adapter, 2 in Nominal Size, Male Adapter x MNPT, 2-3/8 in Length, 100 psi, Polypropylene, 2-13/16 in Dia

Specifications

BrandDixon®
End StyleMale Adapter x MNPT
Fitting/Connector TypeAdapter
Length2-3/8 in
MaterialPolypropylene
Nominal Size2 in
Pressure Rating100 psi
TypeType F
Dimensions2-13/16 in Dia

Item Features

  • Manufactured from a glass-filled polypropylene
  • Warning: this product contains a chemical known to the state of California to cause birth defects or other reproductive harm
  • Do not use in connection with drinking water
  • Wash hands after handling
  • 1/2 in couplers and adapters will interchange with 3/4 in couplers and adapters, only the threads and barbs are 1/2 in
  • 1-1/4 in couplers and adapters will interchange with 1-1/2 in couplers and adapters, only the threads and barbs are 1-1/4 in
  • Polypropylene cam and groove should not be mixed with metal fittings
  • Under no circumstances should cam and groove couplings be used for compressed air or steam service!
  • Pressure rating is based on the seal of the mating part
  • Pressure rating recommendations are based on the use of mating Dixon fittings at ambient temperature 70 deg F with a standard seal installed
  • Not recommended for use with PTFE gaskets
  • 100 psi at ambient temperature 70 deg F pressure
