Dixon® PPF100

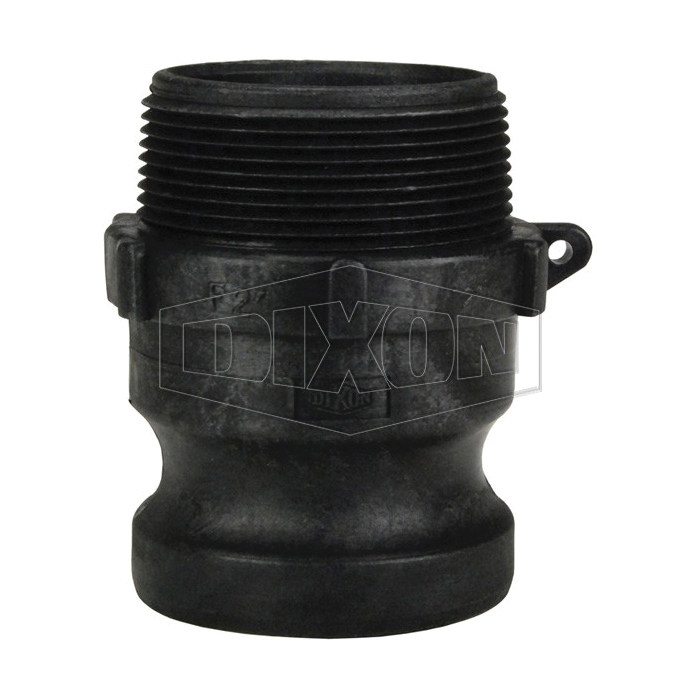

Dixon® PPF100 Type F Cam and Groove Adapter, 1 in, Male Adapter x MNPT, Polypropylene

CBPN:22580

MPN:PPF100

Price:
$1.84 / EA

DESCRIPTION

Dixon® Cam and Groove Adapter, Type F, Fitting/Connector Type: Adapter, 1 in Nominal Size, Male Adapter x MNPT, 1-13/16 in Length, 125 psi, Polypropylene, 1-15/16 in Dia

Dixon® PPF100 Type F Cam and Groove Adapter, 1 in, Male Adapter x MNPT, Polypropylene

CBPN:22580

MPN:PPF100

Price:
$1.84 / EA

Dixon Logo

DESCRIPTION

Dixon® Cam and Groove Adapter, Type F, Fitting/Connector Type: Adapter, 1 in Nominal Size, Male Adapter x MNPT, 1-13/16 in Length, 125 psi, Polypropylene, 1-15/16 in Dia

Specifications

BrandDixon®
Length1-13/16 in
MaterialPolypropylene
TypeType F
End StyleMale Adapter x MNPT
Fitting/Connector TypeAdapter
Nominal Size1 in
Pressure Rating125 psi
Dimensions1-15/16 in Dia
Weight0.12 lbs

Item Features

  • Manufactured from a glass-filled polypropylene
  • 1/2 in couplers and adapters will interchange with 3/4 in couplers and adapters, only the threads and barbs are 1/2 in
  • 1-1/4 in couplers and adapters will interchange with 1-1/2 in couplers and adapters, only the threads and barbs are 1-1/4 in
  • Polypropylene cam and groove should not be mixed with metal fittings
  • Under no circumstances should cam and groove couplings be used for compressed air or steam service!
  • Pressure rating is based on the seal of the mating part
  • Pressure rating recommendations are based on the use of mating Dixon fittings at ambient temperature 70 deg F with a standard seal installed
  • Not recommended for use with PTFE gaskets
  • 125 psi at ambient temperature 70 deg F pressure
  • Warning: this product contains a chemical known to the state of California to cause birth defects or other reproductive harm
  • Do not use in connection with drinking water
  • Wash hands after handling
