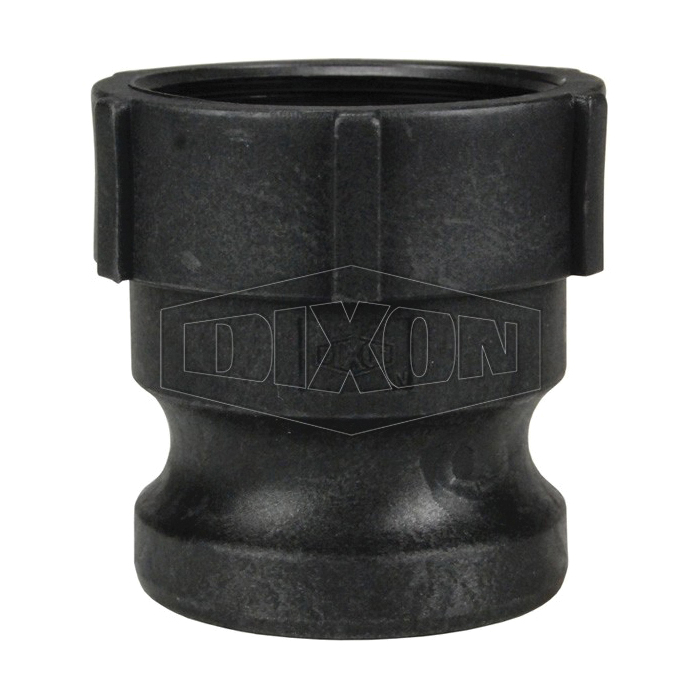

Dixon® PPA75 Type A Cam and Groove Adapter, 3/4 in, Male Adapter x FNPT, Polypropylene
CBPN:21116
UPC:089109766475
MPN:PPA75
Price:
$2.24 / EA
Prop 65:
DESCRIPTION
Dixon® Cam and Groove Adapter, Type A, Fitting/Connector Type: Adapter, 3/4 in Nominal Size, Male Adapter x FNPT, 1-5/8 in Length, 125 psi, Polypropylene, 1-1/4 in Dia
Dixon® PPA75 Type A Cam and Groove Adapter, 3/4 in, Male Adapter x FNPT, Polypropylene
CBPN:21116
MPN:PPA75
UPC:089109766475
Price:
$2.24 / EA
Prop 65:
DESCRIPTION
Dixon® Cam and Groove Adapter, Type A, Fitting/Connector Type: Adapter, 3/4 in Nominal Size, Male Adapter x FNPT, 1-5/8 in Length, 125 psi, Polypropylene, 1-1/4 in Dia
Specifications
Brand: Dixon®
Weight: 0.045 lbs
Fitting/Connector Type: Adapter
Type: Type A
Nominal Size: 3/4 in
End Style: Male Adapter x FNPT
Material: Polypropylene
Dimensions: 1-1/4 in Dia
Length: 1-5/8 in
Manufacturer Name: Dixon Valve & Coupling
Pressure Rating: 125 psi
Application: Designed for use with liquids
Warranty: Limited
Item Features
- Manufactured from a glass-filled polypropylene
- 1/2 in couplers and adapters will interchange with 3/4 in couplers and adapters, only the threads and barbs are 1/2 in
- 1-1/4 in couplers and adapters will interchange with 1-1/2 in couplers and adapters, only the threads and barbs are 1-1/4 in
- Polypropylene cam and groove should not be mixed with metal fittings
- Under no circumstances should cam and groove couplings be used for compressed air or steam service!
- Pressure rating is based on the seal of the mating part
- Pressure rating recommendations are based on the use of mating Dixon fittings at ambient temperature 70 deg F with a standard seal installed
- Not recommended for use with PTFE gaskets
- 125 psi at ambient temperature 70 deg F pressure
- Warning: this product contains a chemical known to the state of California to cause birth defects or other reproductive harm
- Do not use in connection with drinking water
- Wash hands after handling
