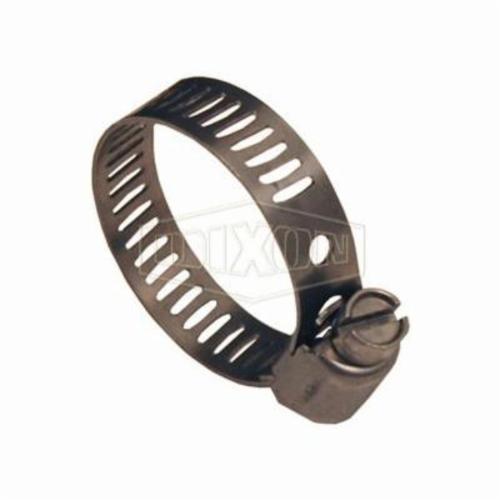

Dixon® MAH4 Miniature Worm Gear Clamp, 14/64 to 40/64 in Clamp, Stainless Steel Band, Stainless Steel Bolt, Domestic
CBPN:14768
MPN:MAH4
Price:
$1.48Â /Â EA
DESCRIPTION
Dixon® Worm Gear Clamp, Miniature, Series: MAH, Clamping Range: 14/64 to 40/64 in, 5/16 in Width, 1/4 in Bolt, 15 in-lb, Grade:300, Stainless Steel Band, Stainless Steel Screw, Domestic
Dixon® MAH4 Miniature Worm Gear Clamp, 14/64 to 40/64 in Clamp, Stainless Steel Band, Stainless Steel Bolt, Domestic
CBPN:14768
MPN:MAH4
Price:
$1.48Â /Â EA
Â
Specifications
Brand: Dixon®
Weight:Â 0.012lbs
Series:Â MAH
Type:Â Miniature
Width:Â 5/16 in
Bolt Size:Â 1/4 in
Clamping Range:Â 14/64 to 40/64 in
Torque Rating:Â 15 in-lb
Grade:Â 300
Band Material:Â Stainless Steel
Bolt Material:Â Stainless Steel Screw
Manufacturer Name:Â Dixon Valve & Coupling
Warranty:Â Limited
Domestic/Import:Â Domestic
Country of Origin:Â US
Standards and Approvals:Â SAE J1508
Item Features
- 1/4 in slotted hex head screw design
- SAE 300 series stainless steel
- Maximum recommended torque is 15 in. lbs
- Torque ratings correspond to the torque rating of the screw of the clamp and are not an indication of the working pressure of any hose assembly installed with this clamp
- Wash hands after handling
