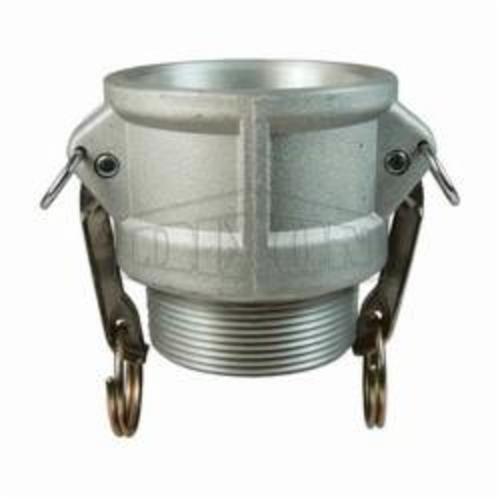

Dixon® G75-B-AL Type B Cam and Groove Coupler, 3/4 in Nominal, Female Coupler x MNPT End Style, Aluminum, Domestic
CBPN: 205413
MPN:G75-B-AL
Price:
$18.23 / EA
Prop 65:
DESCRIPTION
Dixon® Cam and Groove Coupler, Type B, Coupling Fitting/Connector, 3/4 in Nominal, Female Coupler x MNPT End Style, 2-5/32 in Length, 250 psi Pressure, Aluminum, Domestic
Dixon® G75-B-AL Type B Cam and Groove Coupler, 3/4 in Nominal, Female Coupler x MNPT End Style, Aluminum, Domestic
CBPN: 205413
MPN:G75-B-AL
Price:
$18.23 / EA
Prop 65:
DESCRIPTION
Dixon® Cam and Groove Coupler, Type B, Coupling Fitting/Connector, 3/4 in Nominal, Female Coupler x MNPT End Style, 2-5/32 in Length, 250 psi Pressure, Aluminum, Domestic
Specifications
Brand: Dixon®
Weight: 0.26 lbs
Fitting/Connector Type: Coupling
Type: Type B
Nominal Size: 3/4 in
End Style: Female Coupler x MNPT
Material: Aluminum
Length: 2-5/32 in
Manufacturer Name: Dixon Valve & Coupling
Pressure Rating: 250 psi
Application: Designed for use with liquids
Warranty: Limited
Domestic/Import: Domestic
Country of Origin: US
Standards and Approvals: Designed to interchange with all products produced to A-A-59326D
Item Features
- 4-1/32 in open x 2/3-8 in closed across cam arm
- Buna seals construction
- A380 permanent mold aluminum
- Stainless steel handle
- Produced to interchange with all product produced to commercial item description A-A-59326D
- Under no circumstances should cam and groove couplings be used for compressed air or steam service!
- Pressure rating recommendations are based on the use of mating Dixon fittings at ambient temperature 70 deg F with a standard seal installed
- Warning: this product contains a chemical known to the state of California to cause birth defects or other reproductive harm
- Do not use in connection with drinking water
- Wash hands after handling
